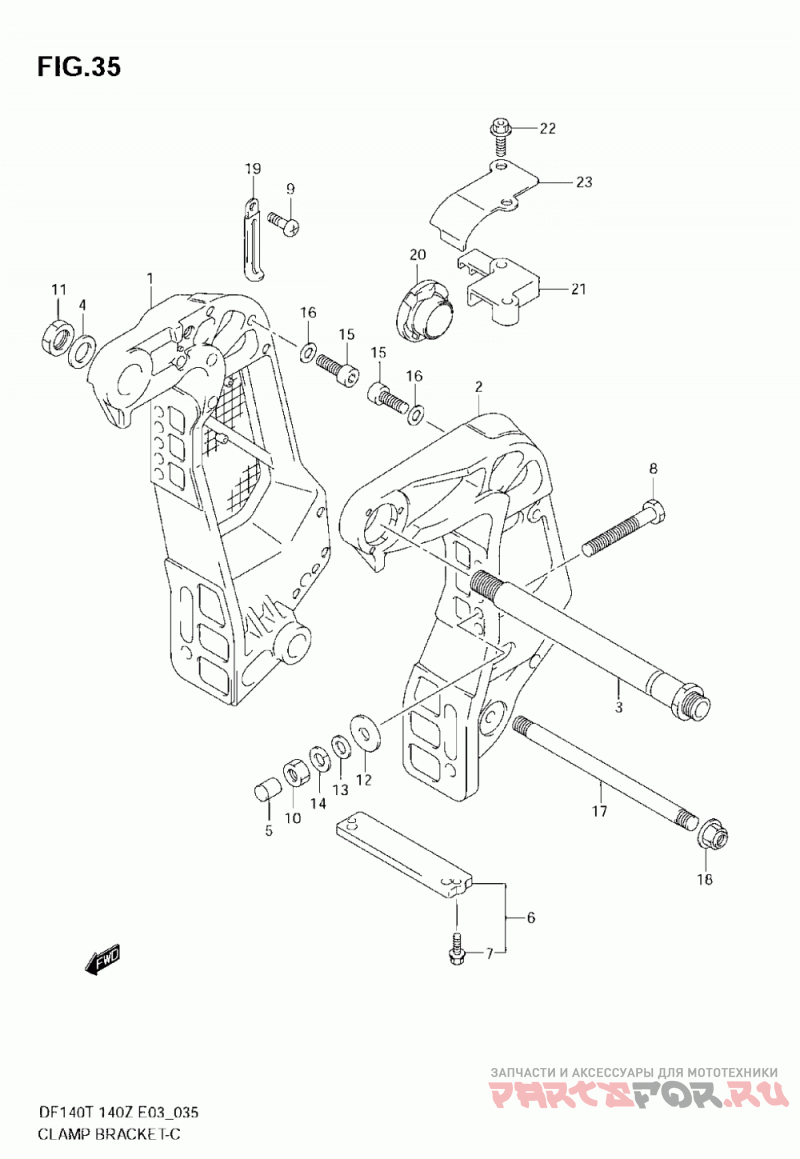

Кронштейн транца

Suzuki Marine DF140T

Suzuki Marine
#oem кодцена
1
41111-92J02-0EP
BRACKET, CLAMP STBD (BLACK)
1
41111-92J03-0EP
BRACKET, CLAMP STBD (BLACK)
2
41121-92J04-0EP
BRACKET, CLAMP PORT (BLACK)
3
41130-92J00
SHAFT, CLAMP BRACKET
3
41130-95543
SHAFT, CLAMP BRACKET
3
41130-92J01
SHAFT, CLAMP BRACKET
3
41130-95541
SHAFT, CLAMP BRACKET
4
41135-92J00
WASHER, CLAMP BRACKET SHAFT
5
41153-94500
CAP, TRANSOM BOLT
6
55320-94900
ZINC, PROTECTION
7
09116-06121
Болт (6x25)
8
09100-12091
BOLT (12X115, PITCH:1.25)
8
09100-12090
BOLT (12X150, PITCH:1.25)
8
09100-12083
BOLT (12X150, PITCH:1.75)
9
09125-06063
SCREW (6X10)
10
09159-12014
NUT (M12, PITCH:1.25)
10
09140-12028
NUT (M12, PITCH:1.75)
11
09159-22006
Гайка
12
09160-12044
WASHER (12.5X35X3.2)
13
09160-12066
WASHER (12.5X22X2.5)
13
09160-12110
WASHER (12.5X22X3.0)
14
09162-12005
WASHER, LOCK (12.2X21.5X3.0)
15
09106-10065
BOLT (10X20)
16
29160-93J00
WASHER (10.5X19X2.0)
17
45421-87D01
PIN, TILT LOCK
17
45421-87D00
PIN, TILT LOCK
18
09159-14020
Гайка
19
29404-93J10
Зажим
20
48140-93J00
CAM, TILT LIMIT SWITCH
21
48144-93J00
HOLDER, TILT LIMIT SWITCH
22
09103-06093
Болт (6X20)
22
09103-06278
Болт (6x25)
23
48145-93J00
COVER, TILT LIMIT SWITCH
