Кронштейн транца для лодочных моторов Suzuki Marine DF115 (2009)

Москва и регионы России

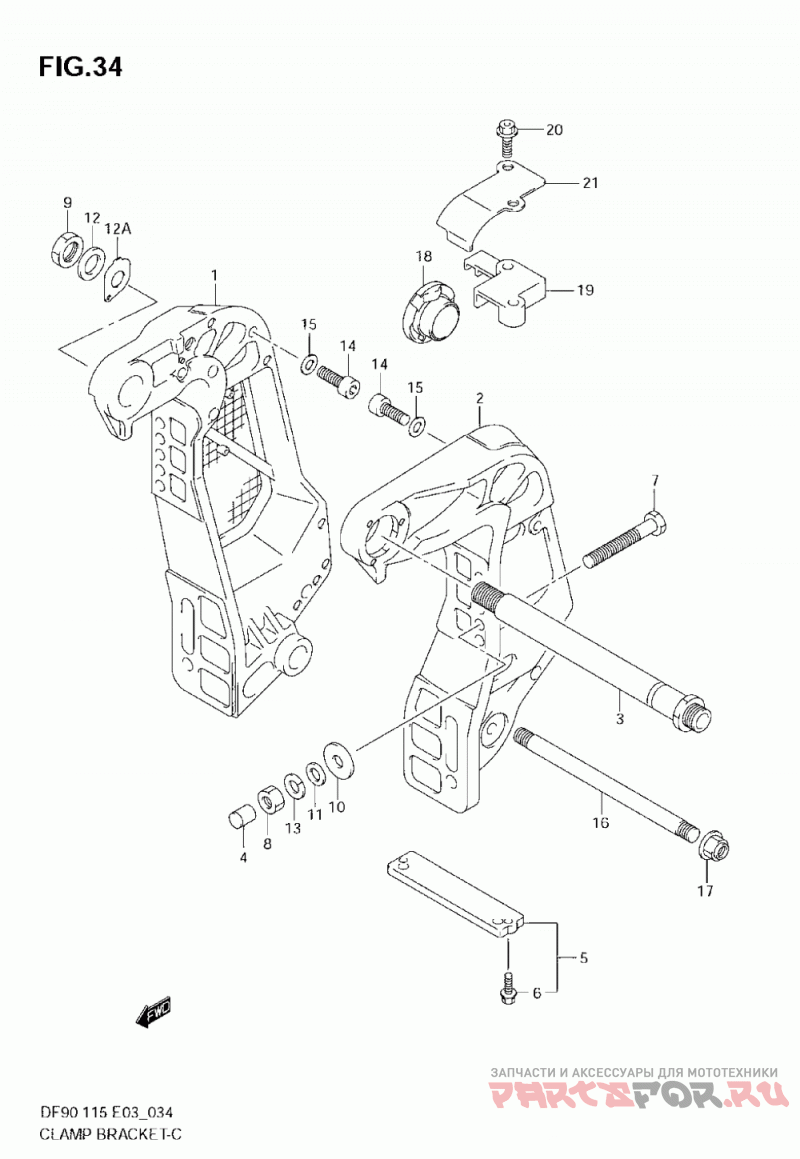

Кронштейн транца

Suzuki Marine DF115

Кронштейн транца

#

oem код

название

цена

1

41111-90J12-0EP

BRACKET, CLAMP STBD (BLACK)

BRACKET, CLAMP STBD (BLACK)

1

41111-90J11-0EP

BRACKET, CLAMP STBD (BLACK)

BRACKET, CLAMP STBD (BLACK)

2

41121-90J13-0EP

BRACKET, CLAMP PORT (BLACK)

BRACKET, CLAMP PORT (BLACK)

3

SHAFT, CLAMP BRACKET

SHAFT, CLAMP BRACKET

3

SHAFT, CLAMP BRACKET

SHAFT, CLAMP BRACKET

3

SHAFT, CLAMP BRACKET

SHAFT, CLAMP BRACKET

3

SHAFT, CLAMP BRACKET

SHAFT, CLAMP BRACKET

4

CAP, TRANSOM BOLT

CAP, TRANSOM BOLT

5

ZINC, PROTECTION

ZINC, PROTECTION

6

Болт (6x25)

Болт (6x25)

7

BOLT (12X115, PITCH:1.25)

BOLT (12X115, PITCH:1.25)

7

BOLT (12X150, PITCH:1.25)

BOLT (12X150, PITCH:1.25)

8

NUT (M12, PITCH:1.75)

NUT (M12, PITCH:1.75)

8

NUT (M12, PITCH:1.25)

NUT (M12, PITCH:1.25)

9

Гайка

Гайка

10

WASHER (12.5X35X3.2)

WASHER (12.5X35X3.2)

11

WASHER (12.5X22X3.0)

WASHER (12.5X22X3.0)

11

WASHER (12.5X22X2.5)

WASHER (12.5X22X2.5)

12

WASHER, SHAFT

WASHER, SHAFT

12

WASHER (22.5X38X1.0)

WASHER (22.5X38X1.0)

13

WASHER, LOCK (12.2X21.5X3.0)

WASHER, LOCK (12.2X21.5X3.0)

14

BOLT (10X20)

BOLT (10X20)

15

WASHER (10.5X19X2.0)

WASHER (10.5X19X2.0)

16

PIN, TILT LOCK

PIN, TILT LOCK

17

Гайка

Гайка

18

CAM ASSY, TILT LIMIT SW

CAM ASSY, TILT LIMIT SW

19

HOLDER, TILT LIMIT SW

HOLDER, TILT LIMIT SW

20

Болт (6x25)

Болт (6x25)

20

Болт (6X20)

Болт (6X20)

21

COVER, TILT LIMIT SWITCH

COVER, TILT LIMIT SWITCH
