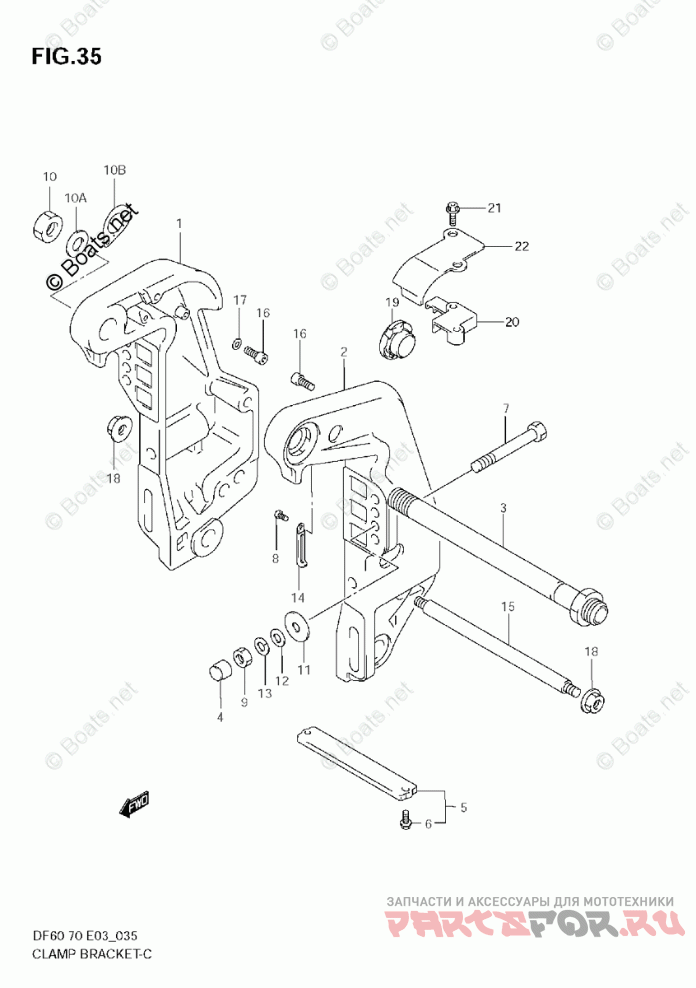

Clamp Bracket

Suzuki Marine DF 60TLK9

Suzuki Marine
#oem кодцена
1-2
41111-90J01-0EP
BRACKET, CLAMP STBD (BLACK) *{MODEL:01}*
1-3
41111-90J11-0EP
BRACKET, CLAMP STBD (BLACK) *{DF60:151144~MODEL:05 DF70:151793~MODEL:05}*
1-1
41111-95E03-0EP
BRACKET, CLAMP STBD (BLACK)
1-4
41111-90J12-0EP
BRACKET, CLAMP STBD (BLACK) *{MODEL:06~09}*
2-1
41121-95E20-0EP
BRACKET, CLAMP PORT (BLACK)
2-5
41121-90J13-0EP
BRACKET, CLAMP PORT (BLACK) *{MODEL:05~09}*
2-4
41121-90J12-0EP
BRACKET, CLAMP PORT (BLACK) *{MODEL:03~04}*
2-3
41121-90J11-0EP
BRACKET, CLAMP PORT (BLACK) *{DF60:151144~MODEL:02 DF70:151793~MODEL:02}*
2-2
41121-90J01-0EP
BRACKET, CLAMP PORT (BLACK) *{MODEL:01}*
3-3
41130-95543
SHAFT, CLAMP BRACKET *{DF60:510442~ DF70:511668~}*
3-2
41130-95542
SHAFT, CLAMP BRACKET *{MODEL:03~05}*
3-1
41130-95541
SHAFT, CLAMP BRACKET
3-4
41130-92J00
SHAFT, CLAMP BRACKET *{MODEL:06~09}*
4
41153-94500
CAP, TRANSOM BOLT
5
55320-94900
ZINC SET, PROTECTION
6
09116-06121
BOLT (6X25)
7-1
09100-12045
BOLT (12X115,PITCH:1.75) *{->09100-12091 USED WITH 09159-12014}*
7-3
09100-12083
BOLT (12X150,PITCH:1.75) *{OPT ->09100-12090 USED WITH 09159-12014}*
7-4
09100-12090
BOLT (12X150,PITCH:1.25) *{OPT DF60:510198~ DF70:510873~}*
7-2
09100-12091
BOLT (12X115,PITCH:1.25) *{DF60:510198~ DF70:510873~}*
8
09125-06063
SCREW (6X10)
9-1
09140-12028
NUT (M12,PITCH:1.75)
9-2
09159-12014
NUT (M12,PITCH:1.25) *{DF60:510198~ DF70:510873~}*
10
09159-22006
NUT
10A
09160-22033
WASHER (22.5X38X1.0) *{MODEL:02~}*
10B
41135-92J00
WASHER, CLAMP BRKT SHAFT *{DF60:680108~ DF70:680518~}*
11
09160-12044
WASHER (12.5X35X3.2)
12-1
09160-12066
WASHER (12.5X22X2.5)
12-2
09160-12110
WASHER (12.5X22X3.0) *{DF60:510198~ DF70:510873~}*
13
09162-12005
LOCK WASHER *{DF60:~510197 DF70:~510872}*
14
29404-93J10
CLAMP *{<-09404-06432}*
15-2
45421-90J00
PIN, TILT LOCK *{OPT MODEL:01~07}*
15-1
45421-87D00
PIN, TILT LOCK *{~MODEL:00}*
16
09106-10065
BOLT
17
29160-93J00
WASHER (10.5X19X2.0) *{<-09160-10082}*
18-1
09159-14020
NUT *{STD ~MODEL:00}*
18-2
09159-14020
NUT *{OPT MODEL:01~07}*
19
48140-93J00
CAM ASSY, TILT LIMIT SWITCH *{MODEL:04~09}*
20
48144-93J00
HOLDER, TILT LIMIT SWITCH *{MODEL:04~09}*
21-1
09103-06093
BOLT *{MODEL:04,05}*
21-2
09103-06278
BOLT (6X25) *{DF60:510639~ DF70:512438~}*
22
48145-93J00
COVER, TILT LIMIT SWITCH *{DF60:510639~ DF70:512438~}*
