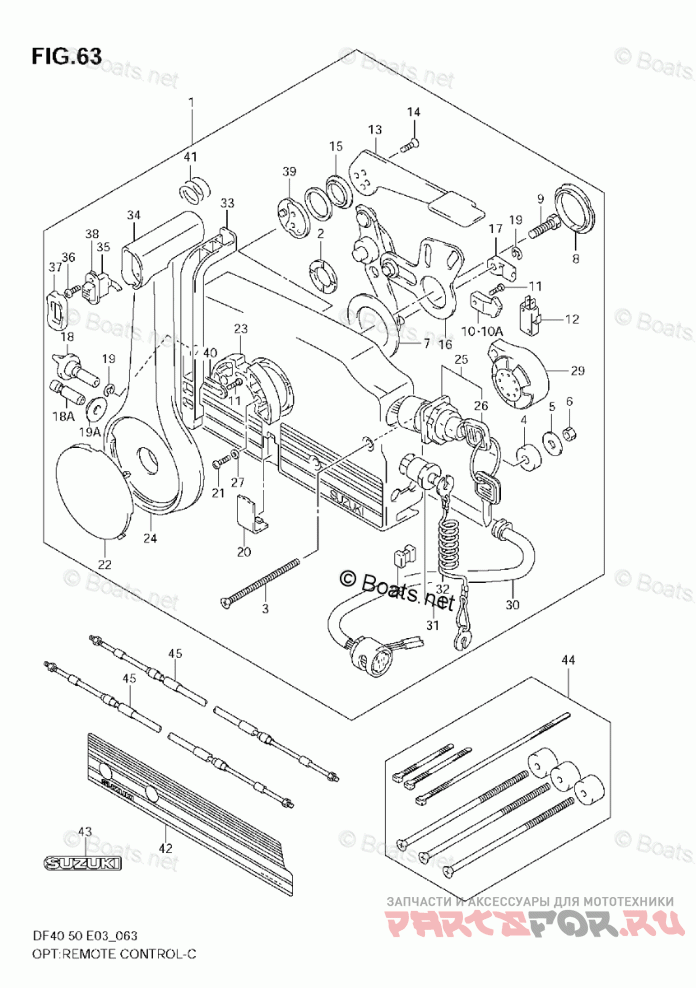

Opt:Remote Control (Model:99%03)

Suzuki Marine DF 50TLK9

Suzuki Marine
#oem кодцена
1-2
67200-99E30-0EP
REMOTE CONTROL BOX *{MODEL:03}*
1-1
67200-99E11-0EP
REMOTE CONTROL BOX (BLACK)
2
67232-95600
BUSH
3
67296-95600
SCREW
4
67294-95600
SPACER
5
09160-06104
WASHER
6
09140-06020
NUT
7
67253-95600
WASHER
8
67252-95600
BUSH
9
09100-08232
BOLT (8X30)
10
67214-95600
ACTUATOR
10A
67238-87D00
GEAR, DRIVE
11
67296-94300
SCREW
12
37721-94600
SWITCH, NEUTRAL
13
67241-99E00
LEVER, FREE THROTTLE
14
09126-05003
SCREW (5X12)
15
67243-95600
BUSH
16
67220-95630
PLATE ASSY
17
67275-95600
END, CABLE
18
67223-95600
KNOB, BRAKE ADJUST *{FOR 67200-99E11-0EP}*
18A
67223-99E00
KNOB, BRAKE ADJUST *{FOR 67200-99E30-0EP}*
19
67292-94300
E RING
19A
09308-08001
GROMMET *{FOR 67200-99E30-0EP}*
20
67267-95610
COVER, WIRE
21
67296-95610
SCREW
22
67257-95610
CAP, LEVER
23
67256-95600
HOLDER, NEUTRAL LOCK
24
67251-99E00
LEVER, HANDLE
25
37110-92E02
SWITCH ASSY, IGNITION
26-5
37141-92E40
KEY (15)
26-4
37141-92E30
KEY (14)
26-1
37141-92E00
KEY (11)
26-2
37141-92E10
KEY (12)
26-10
37141-92E90
KEY (20)
26-9
37141-92E80
KEY (19)
26-8
37141-92E70
KEY (18)
26-7
37141-92E60
KEY (17)
26-6
37141-92E50
KEY (16)
26-3
37141-92E20
KEY (13)
27
67297-95600
WASHER
28
67273-95600
SPACER
29-1
38500-92X50
BUZZER *{FOR 67200-99E11-0EP}*
29-2
38500-92E10
BUZZER *{FOR 67200-99E30-0EP}*
30-1
36620-92E00
WIRING HARNESS *{FOR 67200-99E10-0EP}*
30-2
36620-92E10
WIRING HARNESS *{FOR 67200-99E11-0EP 67200-99E30-0EP}*
31
37820-92E00
SWITCH ASSY, EMERGENCY
32
37823-92E00
PLATE
33
67255-95600
ARM, NEUTRAL LOCK
34
67261-95600
GRIP
35
37860-94610
SWITCH, TRIM
36
09139-02003
SCREW (2X6.0)
37
67263-95600
CAP, GRIP
38
37869-95590
CAP, TRIM SWITCH
39
67245-95600
DRUM ASSY, FREE THROTTLE
40
67258-87D00
BRACKET, NEUTRAL ARM
41
67259-87D00
SPRING, NEUTRAL ARM
42
67282-95610
DECAL, REMOCON BOX PORT *{BLACK}*
43
68165-16B00-13L
EMBLEM, SUZUKI (SILVER)
44
67140-95600
ATTACHMENT, TWIN REMOCON KIT
45-1
67320-89J11
CABLE, REMOCON 8F (2.4M) *{NOT FOR U.S. MARKET}*
45-2
67320-89J21
CABLE, REMOCON 10F (3.1M) *{NOT FOR U.S. MARKET}*
45-3
67320-89J31
CABLE, REMOCON 12F (3.7M) *{NOT FOR U.S. MARKET}*
45-4
67320-89J41
CABLE, REMOCON 14F (4.3M) *{NOT FOR U.S. MARKET}*
45-5
67320-89J51
CABLE, REMOCON 16F (4.9M) *{NOT FOR U.S. MARKET}*
45-6
67320-89J61
CABLE, REMOCON 18F (5.5M) *{NOT FOR U.S. MARKET}*
45-7
67320-89J71
CABLE, REMOCON 20F (6.1M) *{NOT FOR U.S. MARKET}*
45-8
67320-89J81
CABLE, REMOCON 22F (6.7M) *{NOT FOR U.S. MARKET}*
45-9
67320-89J90
CABLE, REMOCON 24F (7.3M) *{NOT FOR U.S. MARKET}*
46
SPECIAL-NOTE
REFER TO FIG.64(J- 5) FOR MODEL:04 REFER TO FIG.65(J- 8) FOR MODEL:05~09
