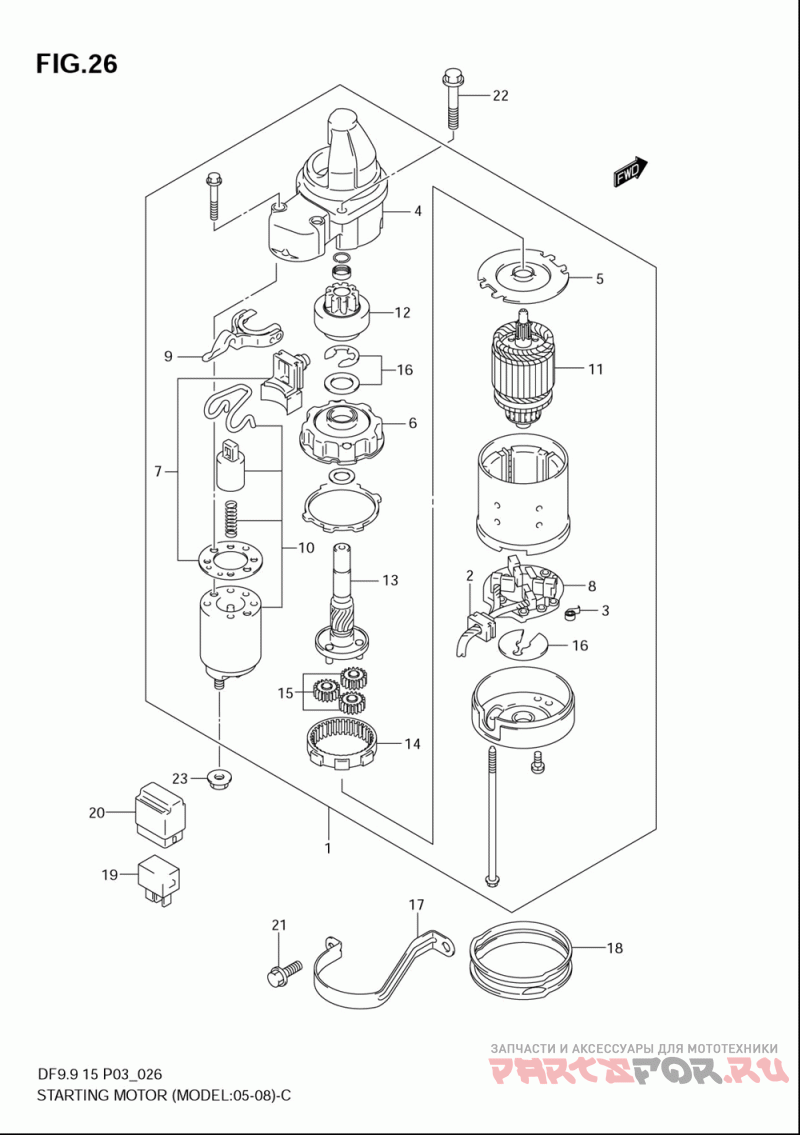

Starting motor (model:05~08) для лодочных моторов Suzuki Marine DF9.9/DF15 (2008)

Starting motor (model:05~08)

Suzuki Marine DF9.9/DF15

oem код

название

цена

1-1

31100-94J21

Motor Assy, Star (<-31100-94j10df9.9t/th)

Brush Assy ()

Spring ()

Case, Gear ()

Plate, Center ()

Bracket, Gear ()

7-1

31171-94J00

Cover Kit, Dust (->31190-94j00lever & Dust Cov Kit)

7-2

31171-96J00

Cover Kit, Dust (model:08 Later~df9.9t/th)

31173-94J00

Holder Assy, Bru ()

9-1

31191-90J00

Lever, Shift (->31190-94j00lever & Dust Cov Kit)

9-2

31191-96J00

Lever, Shift (model:08 Later~df9.9t/th)

Switch, Magnet ()

Armature ()

Pinion ()

Shaft, Pinion ()

Internal Gear ()

Gear, Planetary ()

Washer Set, Stop ()

Band, Starter Mo ()

Damper, Lower ()

Relay Assy ()

Holder, Relay ()

..bolt, Lower ()

..bolt, Upper ()

..nut ()
