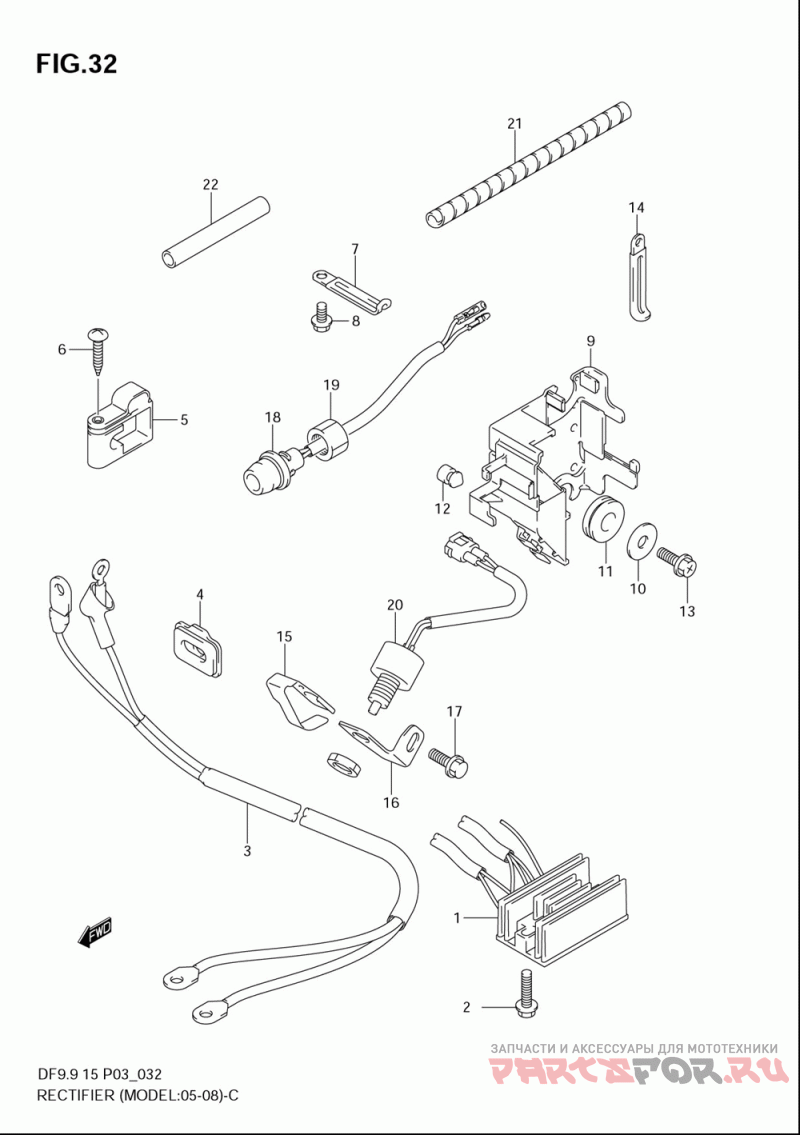

Rectifier (model:05~08) для лодочных моторов Suzuki Marine DF9.9/DF15 (2008)

Rectifier (model:05~08)

Suzuki Marine DF9.9/DF15

oem код

название

цена

1-1

32800-94J11

Rectifier & Reg (electric Starterdf9.9th)

1-2

32800-94J01

Rectifier & Reg (df9.9r/9.9t)

01550-06257

..bolt ()

3-1

33810-94J00

Cable, Starter (electric Starter)

3-2

33810-94JA0

Cable, Starter (df9.9t/th)

33811-94J10

Grommet, Starter (electric Starter)

33816-94J00

Clamp, Cable (electric Starterexcept Df9.9t)

7-1

29404-93J10

Clamp (<-09404-06432)

7-2

Clamp (df9.9t)

Болт

Holder, Electric ()

Шайба

Cushion ()

Cushion ()

Винт

.clamp, Sw Lead (l:95) (manual Starterdf9.9r/9.9t)

37725-94302

Actuator ()

16-1

37726-95D02

Bracket, Neutral ()

16-2

37726-94J00

Bracket, Neutral (df9.9:681261~df15:682163~)

01550-06167

.bolt, Remocon Cable Holder ()

37161-94J00

Switch Assy, Sta (electric Starterexcept Df9.9t)

09159-14014

.nut, Starter Switch (m14) (electric Starterexcept Df9.9t)

37721-94J01

Switch Assy, Neu ()

33833-91J00

Tube, Sw Lead (l:250->50)

33833-94J00

Tube, Sw Lead (electric Starterexcept Df9.9t)

03241-0625A

Screw (electric Starterexcept Df9.9t)
