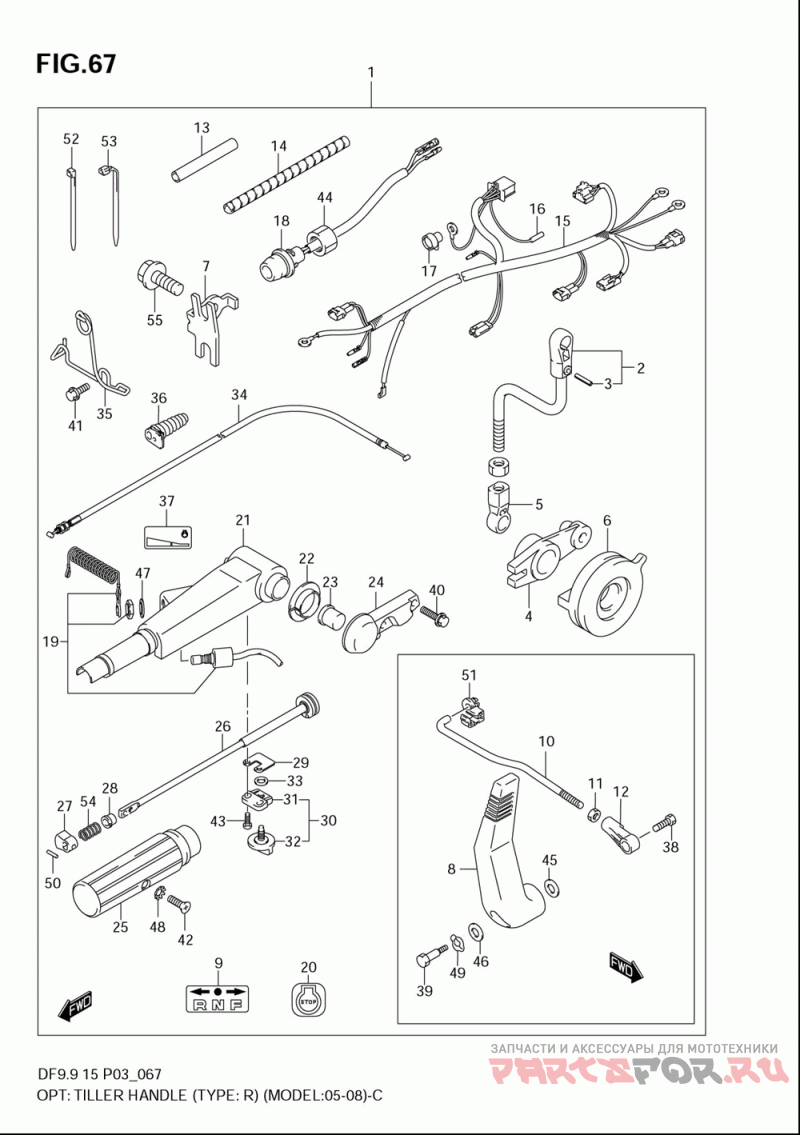

Opt:tiller handle (type:r)(model:05~08) для лодочных моторов Suzuki Marine DF9.9/DF15 (2008)

Москва и регионы России

Opt:tiller handle (type:r)(model:05~08)

Suzuki Marine DF9.9/DF15

Opt:tiller handle (type:r)(model:05~08)

#

oem код

название

цена

1-1

63001-94J01-0EP

Kit, Handle(blac ()

Kit, Handle(blac ()

2

Rod Comp, Thrott ()

Rod Comp, Thrott ()

3

Pin ()

Pin ()

4

Lever, Throttle ()

Lever, Throttle ()

5

Connector ()

Connector ()

6

Drum, Throttle ()

Drum, Throttle ()

7

Bracket, Throttl ()

Bracket, Throttl ()

8

Lever, Clutch ()

Lever, Clutch ()

9

Mark, Clutch Shi ()

Mark, Clutch Shi ()

10

Link, Clutch Lev ()

Link, Clutch Lev ()

11

Nut, Clutch Rod ()

Nut, Clutch Rod ()

12

Connector, Clutc ()

Connector, Clutc ()

13

Tube, Sw Lead ()

Tube, Sw Lead ()

14

Tube, Sw Lead ()

Tube, Sw Lead ()

15

Harness Assy, Wi ()

Harness Assy, Wi ()

16

Terminal ()

Terminal ()

17

()

()

18

Switch Assy, Sta ()

Switch Assy, Sta ()

19

Switch Assy, Eme ()

Switch Assy, Eme ()

20

Label, Stop ()

Label, Stop ()

21-1

63111-94J00-0EP

Handle, Tiller ()

Handle, Tiller ()

21-2

63111-94J01-0EP

Handle, Tiller (model:07~08)

Handle, Tiller (model:07~08)

22

Bush, Tiller Han ()

Bush, Tiller Han ()

23

Rubber, Tiller H ()

Rubber, Tiller H ()

24

63121-94J00-0EP

Cover, Tiller Ha ()

Cover, Tiller Ha ()

25

Grip Comp, Handl ()

Grip Comp, Handl ()

26

Rod Comp, Handle ()

Rod Comp, Handle ()

27

Stopper, Handle ()

Stopper, Handle ()

28

Bush ()

Bush ()

29

Plate, Handle Ro ()

Plate, Handle Ro ()

30

Adjuster Set, Ha ()

Adjuster Set, Ha ()

31

Support, Handle ()

Support, Handle ()

32

Knob, Throttle A ()

Knob, Throttle A ()

33

.nut, Handle Rod Knob ()

.nut, Handle Rod Knob ()

34

Трос газа

Трос газа

36

Grommet, Side Co ()

Grommet, Side Co ()

37

Mark, Engine Sta ()

Mark, Engine Sta ()

38

Болт

Болт

39

.bolt, Clutch Link (6x28.8) ()

.bolt, Clutch Link (6x28.8) ()

40

.bolt, Handle Cover (8x30) ()

.bolt, Handle Cover (8x30) ()

41

Bolt, 8x22 ()

Bolt, 8x22 ()

42

.screw, Handle Grip (6x23) ()

.screw, Handle Grip (6x23) ()

43

.screw, Handle Rod Adjuster ()

.screw, Handle Rod Adjuster ()

44

.nut, Starter Switch (m14) ()

.nut, Starter Switch (m14) ()

45

.washer, Clutch Lever ()

.washer, Clutch Lever ()

46

.washer, Clutch Lever (8x22x1 ()

.washer, Clutch Lever (8x22x1 ()

47

.washer, Emergency Switch ()

.washer, Emergency Switch ()

48

.washer, Handle Grip Screw ()

.washer, Handle Grip Screw ()

49

.washer, Clutch Lever ()

.washer, Clutch Lever ()

50

.pin, Handle Rod ()

.pin, Handle Rod ()

51

.connector, Clutch Link ()

.connector, Clutch Link ()

52

.clamp, Harness (l:140) ()

.clamp, Harness (l:140) ()

53

.clamp, Sw Lead (l:95) ()

.clamp, Sw Lead (l:95) ()

54

Spring, Handle L ()

Spring, Handle L ()

55

.bolt, Remocon Cable Holder ()

.bolt, Remocon Cable Holder ()
