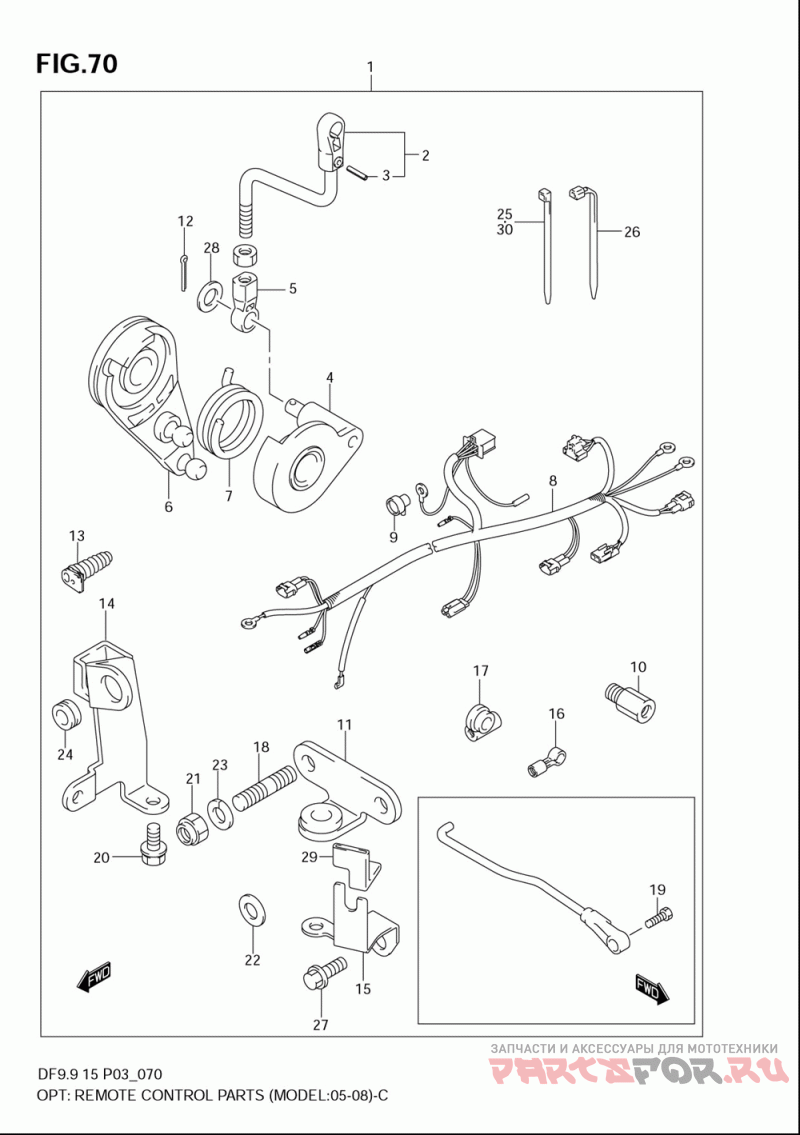

Opt:remote control parts (model:05~08) для лодочных моторов Suzuki Marine DF9.9/DF15 (2008)

Opt:remote control parts (model:05~08)

Suzuki Marine DF9.9/DF15

oem код

название

цена

Parts Assy Remo ()

Rod Comp, Thrott ()

Pin ()

Lever, Throttle ()

Connector, Throt ()

Drum, Throttle ()

Spring, Throttle ()

Harness Assy, Wi ()

()

Attachment, Stee ()

Attachment, Stee ()

Pin, Cotter (->09204-01002)

Grommet, Side Co ()

Holder, R/con Ca ()

Holder Comp, R/c ()

Cable Connector ()

Connector, Remoc ()

Stud Bolt ()

Болт

Bolt, 6x15 ()

.nut, Strg Bracket Attachment ()

09160-08059

.spacer, Remocon Cable Holder ()

29162-93J10

Washer ()

09308-08013

Grommet ()

09407-14407

.clamp, Harness (l:140) ()

09407-11401

.clamp, Sw Lead (l:95) ()

27-1

01550-06167

.bolt, Remocon Cable Holder ()

27-2

01550-08167

.bolt, Remocon Cable Holder ()

08322-01067

.washer, Throttle Rod ()

67356-94J00

Cushion, Remocon (model:06~08)
