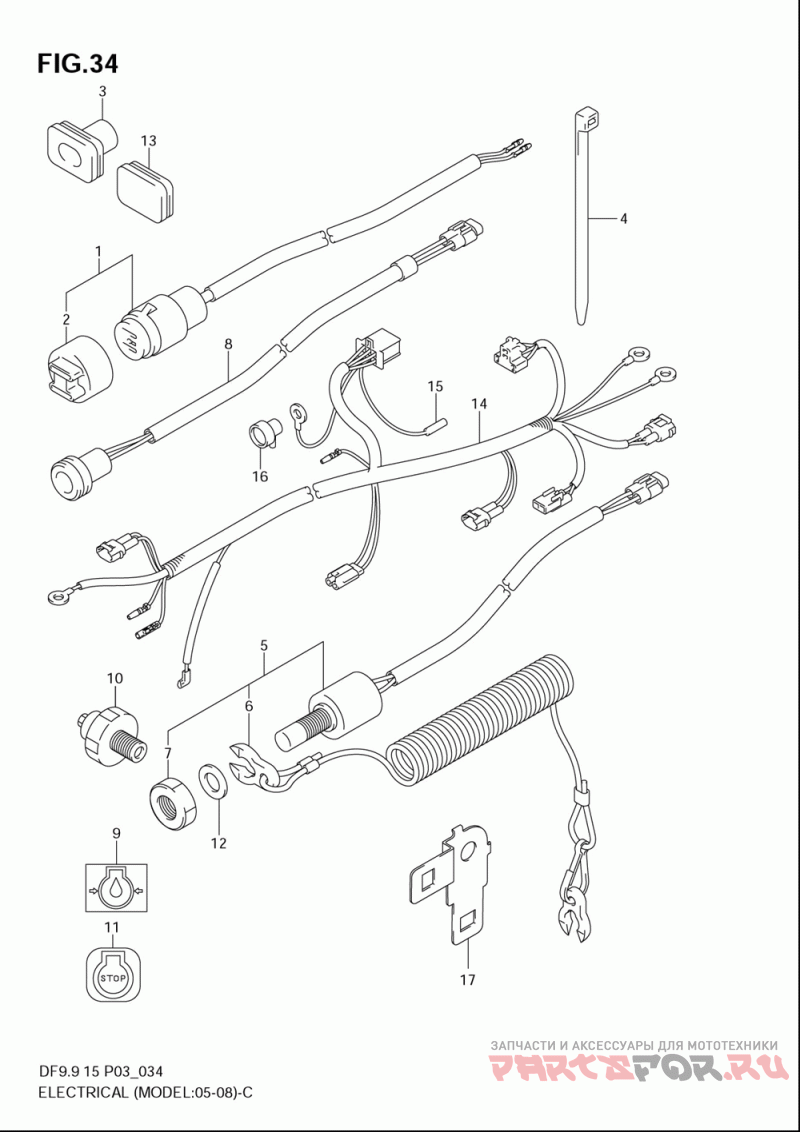

Electrical (model:05~08)

Suzuki Marine DF9.9/DF15

Suzuki Marine
#oem кодцена
1
39601-95D00
Деталь Receptacle (manual Starteropt)
2
36634-93910
Деталь ..cap (manual Starteropt)
3
39603-94400
Деталь Grommet, Recepta (manual Starteropt)
4-1
09407-14407
Деталь .clamp, Harness (l:140) (manual Starteropt)
4-2
09407-25402
Деталь .clamp (manual Starteropt)
5
37830-94J01
Деталь Switch Assy, Eme (except Df9.9r/9.9t)
6
37823-92E01
Деталь Plate Assy, Emer ()
7
37826-92E00
Гайка
8
36360-94J00
Деталь Indicator Comp, ()
9
36367-93E00-019
Деталь Label, Oil Press (<-36367-94j00)
10
37820-93E10
Деталь Switch, Oil Pres ()
11
37835-95D00
Деталь Label, Stop (except Df9.9r/9.9t)
12
09160-12067
Деталь .washer, Emergency Switch (except Df9.9r/9.9t)
13
39669-94400
Деталь Plug, Lower Cove (manual Starter<-39669-94j00)
14-1
36610-94J10
Деталь Harness Assy, Wi (electric Starter)
14-2
36610-94J00
Деталь Harness Assy, Wi (manual Starter)
14-3
36610-94J20
Деталь Harness Assy, Wi (df9.9r)
14-4
36610-94JA0
Деталь Harness Assy, Wi (df9.9t)
14-5
36610-94JB0
Деталь Harness Assy, Wi (df9.9th)
15
36615-96300
Деталь Terminal (except Df9.9r/9.9t)
16
36618-43410
Деталь ()
17
36617-94JA0
Деталь Bracket, Joint C (df9.9t/th)
