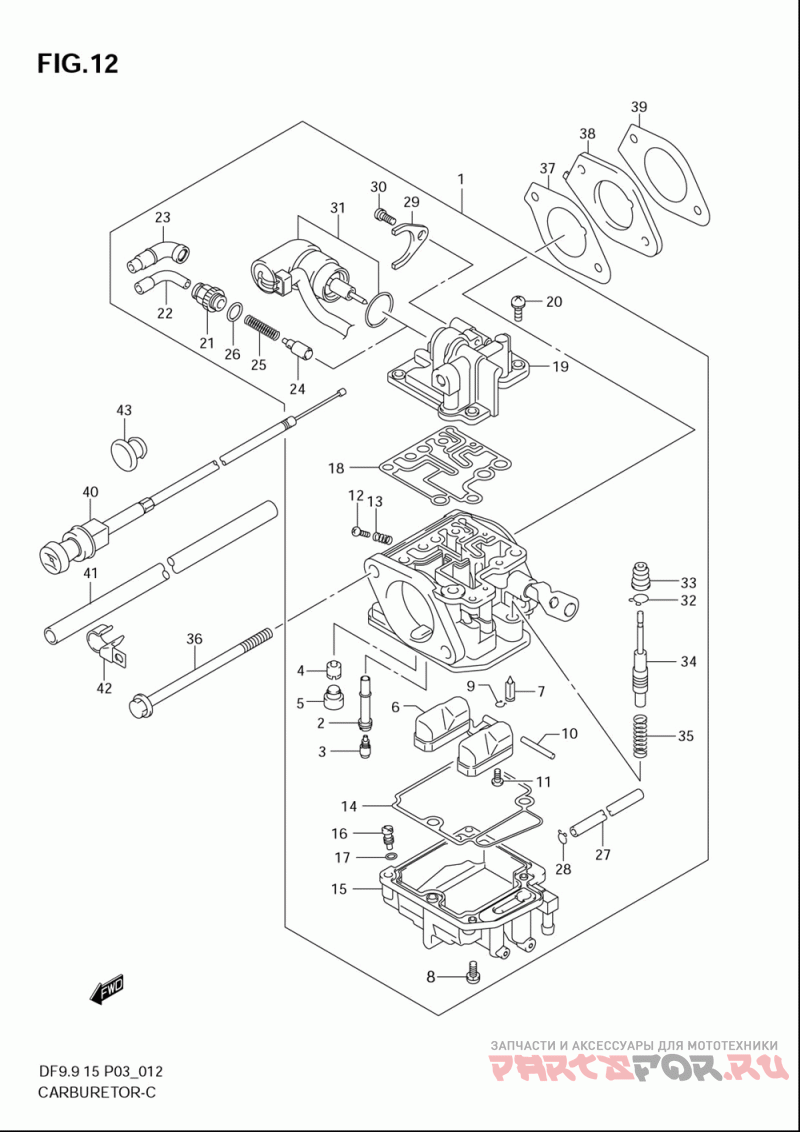

Carburetor (model:05~08) для лодочных моторов Suzuki Marine DF9.9/DF15 (2008)

Carburetor (model:05~08)

Suzuki Marine DF9.9/DF15

oem код

название

цена

1-1

13200-94J20

Carburetor Assy (df9.9/9.9th)

1-2

13200-94J30

Carburetor Assy (df9.9r/9.9t)

1-3

13200-94J60

Carburetor Assy (df15)

2-1

13236-94J10

Nozzle, Main (df9.9)

2-2

13236-94J00

Nozzle, Main (df15)

3-1

09491-70017

.jet, Main (70) (df9.9)

3-2

09491-23029

Jet, Main 115 (df15)

4-1

09492-38009

.jet, Pilot (38) (df9.9)

4-2

Jet, Pilot 40 (df15)

Cap, Rubber ()

Float ()

Valve Comp, Floa ()

Screw ()

.clip ()

Pin, Arm ()

Screw ()

Screw, Stop ()

Spring ()

Gasket, Float Ch ()

15-1

13245-94J00

Chamber, Float (df9.9/9.9th->13240-94j00chamber Assyinc.no.14~17, 27, 28)

15-2

13245-94J10

Chamber, Float (df9.9r/9.9t->13240-94j10chamber Assyinc.no.14~17, 27, 28)

15-3

13245-94J20

Chamber, Float (df15->13240-94j20chamber Assyinc.no.14~17, 27, 28)

13279-94J00

Screw, Drain ()

13523-94J00

O Ring ()

13345-94J00

U Ring ()

19-1

13346-94J00

Cover (df9.9/9.9th)

19-2

13346-94J10

Cover (df9.9r/9.9t)

19-3

13346-94J20

Cover (df15)

13361-94J00

Holder, Cable (df9.9/9.9th/15)

13362-94J00

Guide, Cable (df9.9/9.9th/15)

13363-94J00

Cap, Cable Seali (df9.9/9.9th/15)

13364-94J00

Valve, Starter (df9.9/9.9th/15)

13365-94J00

Spring (df9.9/9.9th/15)

13295-14G00

.o Ring (df9.9/9.9th/15)

Pipe ()

Clip ()

.plate (df9.9r/9.9t)

Screw (df9.9r/9.9t)

Starter Assy (df9.9r/9.9t)

Clip (df15)

Cap, Rubber (df15)

Plunger (df15)

Spring (df15)

Болт

Gasket, Carburet ()

Insulator, Carbu ()

Gasket, Insulato ()

Knob Assy, Start (df9.9/9.9th/15)

18498-94J00

Protector, Start (df9.9/9.9th/15)

09403-12318

Clamp (df9.9/9.9th/15)

59252-94J00

Plug, Starter Kn (df9.9r/9.9t)

15-3

13240-94J20

Chamber Assy, Fl (df15->13240-94j20chamber Assyinc.no.14~17, 27, 28)
