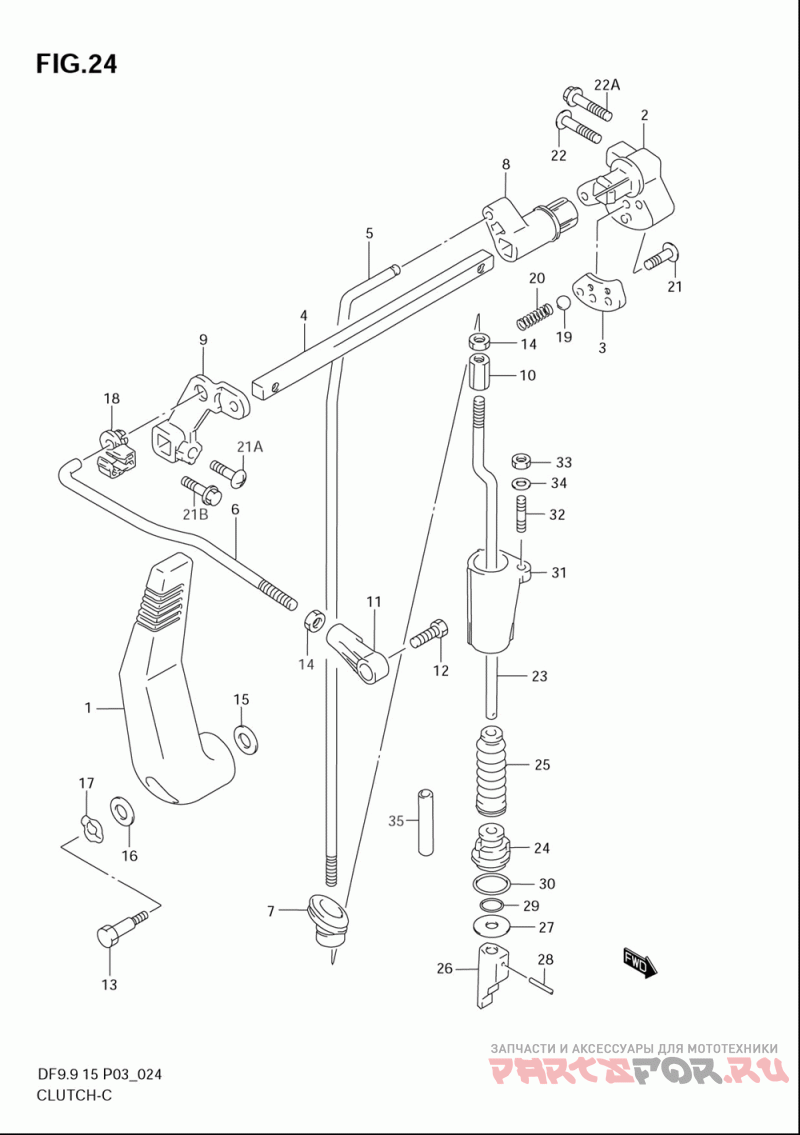

Сцепление для лодочных моторов Suzuki Marine DF9.9/DF15 (2008)

Сцепление

Suzuki Marine DF9.9/DF15

oem код

название

цена

21110-93E03

Lever, Clutch ()

2-1

21120-93E10

Lever Comp, Clut (->21120-93e10used With 01550-06257)

3-1

21122-93E00

Plate, Clutch No ()

3-2

21122-94J01

Plate, Clutch No (model:05~08)

21211-93E10

Shaft, Clutch Le ()

5-1

23111-93E00

Rod, Clutch ()

5-2

23111-94JA0

Rod, Clutch (df9.9t/th)

23115-93E10

Link, Clutch Lev ()

23131-93900

Boot Clutch Rod (<-23131-94j00)

Arm, Clutch Rod ()

Lever, Clutch Co ()

Turnbuckle, Clut ()

Connector, Clutc ()

Болт

.bolt, Clutch Link (6x28.8) ()

23118-94J00

Nut, Clutch Rod ()

09160-06082

.washer, Clutch Lever ()

09160-08045

.washer, Clutch Lever (8x22x1 ()

09164-08017

.washer, Clutch Lever ()

09209-09007

.connector, Clutch Link ()

19-1

09260-10005

Ball ()

19-2

09260-12002

Ball, Clutch Notch (model:05~07)

19-3

09260-12003

Ball (model:08)

20-1

09440-07021

Spring ()

20-2

09440-09041

Spring (model:05~08)

02142-06207

Винт

21B

01550-06207

Bolt (df9.9:780121~df15:780241~)

09125-06055

.screw (6x25) ()

22A

01550-06257

..bolt (df9.9:780121~df15:780241~)

23-1

25100-93810

Shift Rod Set ( (->25100-93810shift Rod Set)

23-2

25100-93820

Shift Rod Set ( (->25100-93820shift Rod Set)

23-4

25111-93901

Clutch Shift Ro (df9.9:680121~df15:680243~)

25211-93901

Guide, Shift Rod (<-25211-94j00)

25222-93901

Boot Shift Rod ()

26-1

25311-93E10

Cam, Shift (->shift Rod Set25100-93810 For Type:s25100-93820 For Type:l)

09160-05047

Washer (5.5x24x1.6) ()

28-1

09205-02006

Pin ()

28-2

09205-02004

Pin (df9.9:680121~df15:680243~)

O Ring ()

O-ring, Shift Ro ()

Stopper, Shift R ()

Stud ()

.nut (<-19133-94j00)

Шайба

Hose, Overflow (l:1000->30)
