Редуктор для лодочных моторов Suzuki Marine DF9.9/DF15 (2008)

Москва и регионы России

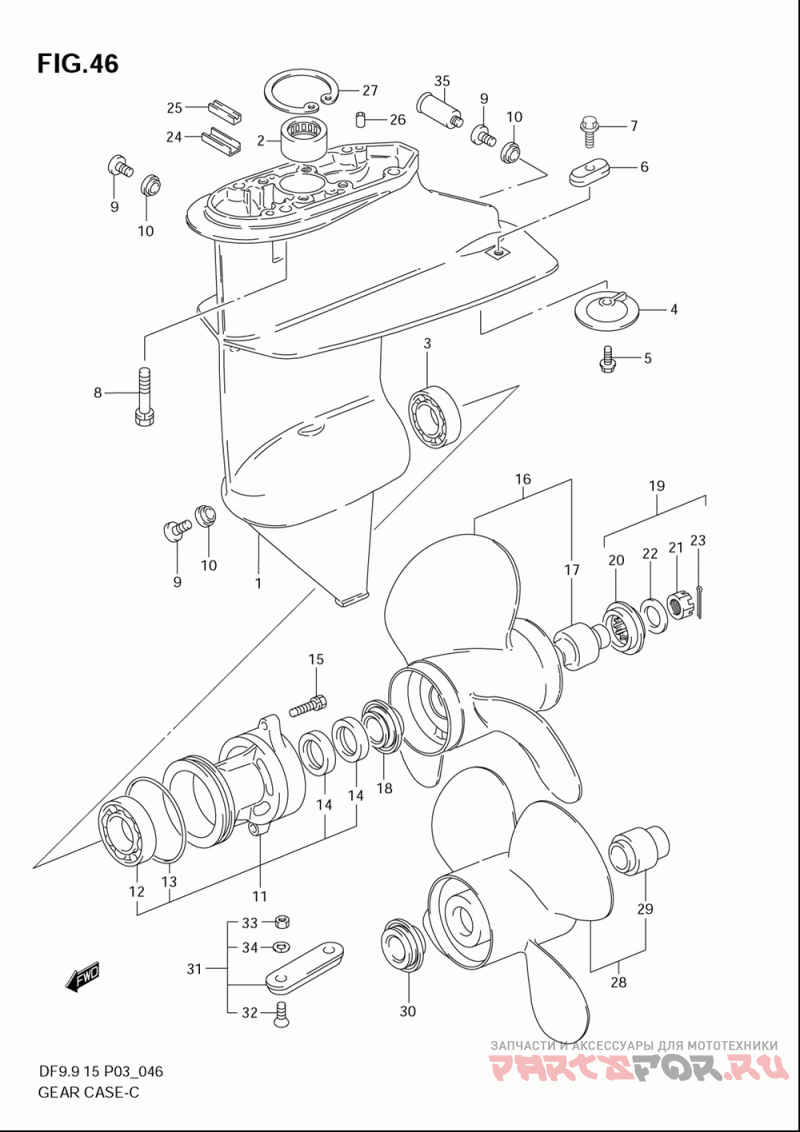

Редуктор

Suzuki Marine DF9.9/DF15

Редуктор

#

oem код

название

цена

1-1

55100-93932-0EP

Case Assy, Gear( ()

Case Assy, Gear( ()

1-2

55100-94J00-0EP

Gear Case Assy (model:07~08)

Gear Case Assy (model:07~08)

2

.bearing (15x21x12) ()

.bearing (15x21x12) ()

3

.bearing (25x52x15) ()

.bearing (25x52x15) ()

4

Zinc Protection ()

Zinc Protection ()

5

Bolt, 6x15 ()

Bolt, 6x15 ()

6

Zinc, Anode ()

Zinc, Anode ()

8

Bolt (8x30) ()

Bolt (8x30) ()

9

Plug (10x7.5) ()

Plug (10x7.5) ()

10

Gasket (10x17x1.5) ()

Gasket (10x17x1.5) ()

11

56120-93901-0EP

Housing, Prop Sh ()

Housing, Prop Sh ()

12

.bearing ()

.bearing ()

13

.o Ring ()

.o Ring ()

14

.oil Seal (16x30x6) ()

.oil Seal (16x30x6) ()

15

Bolt (<-09117-06031)

Bolt (<-09117-06031)

16-1

58100-93703-019

Prop(3x9-1/4x7) ()

Prop(3x9-1/4x7) ()

16-2

58100-94J00-019

Prop 3/91/4x9 ()

Prop 3/91/4x9 ()

16-3

58100-93773-019

Prop(3x9-1/4x10 ()

Prop(3x9-1/4x10 ()

16-4

58100-93743-019

Prop(3x9-1/4x11 ()

Prop(3x9-1/4x11 ()

16-5

58100-91D00-019

Propeller C ()

Propeller C ()

16-6

58100-93763-019

Prop(3x9-1/4x9) ()

Prop(3x9-1/4x9) ()

17

Bushing, Propell ()

Bushing, Propell ()

18

Stopper, Prop El ()

Stopper, Prop El ()

19

Hdwr9.9/15c/df9 (opt)

Hdwr9.9/15c/df9 (opt)

20

Spacer, Propelle ()

Spacer, Propelle ()

21

.nut ()

.nut ()

22

.washer (12.5x22x2.5) ()

.washer (12.5x22x2.5) ()

23

Pin ()

Pin ()

24

Core Exhaust Se ()

Core Exhaust Se ()

25

Rubber, Exhaust (<-55332-94j00)

Rubber, Exhaust (<-55332-94j00)

26

Pin ()

Pin ()

27

Circlip ()

Circlip ()

28

58100-94JA0-019

Prop 9.9t 4x10x (df9.9t/th)

Prop 9.9t 4x10x (df9.9t/th)

29

Bush Comp, Prope (df9.9t/th)

Bush Comp, Prope (df9.9t/th)

30

Stopper, Propell (df9.9t/th)

Stopper, Propell (df9.9t/th)

31

Zinc Assy Prote (opt)

Zinc Assy Prote (opt)

32

.screw (6x20) (opt)

.screw (6x20) (opt)

33

Nut (opt)

Nut (opt)

34

Washer (opt)

Washer (opt)

35

Flush Attachmen (opt)

Flush Attachmen (opt)
