Карбюратор для лодочных моторов Suzuki Marine DF9.9/DF15 (2008)

Москва и регионы России

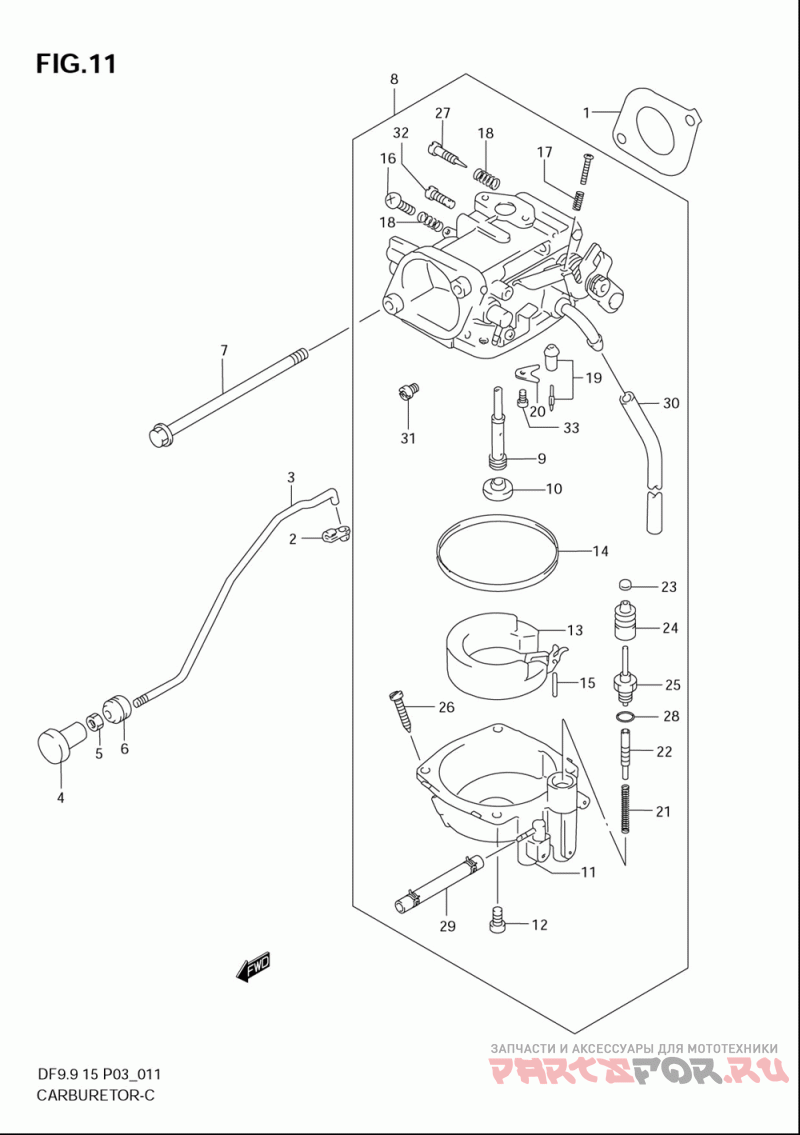

Карбюратор

Suzuki Marine DF9.9/DF15

Карбюратор

#

oem код

название

цена

1

Gasket, Carburet ()

Gasket, Carburet ()

2

Clamp ()

Clamp ()

3

Rod, Choke ()

Rod, Choke ()

4

Knob, Starter ()

Knob, Starter ()

5

Гайка

Гайка

6

Bush ()

Bush ()

7

Болт

Болт

8-1

Carburetor Assy (df9.9)

Carburetor Assy (df9.9)

8-2

Carburetor Assy (df15)

Carburetor Assy (df15)

9-1

Main Nozzle (df9.9)

Main Nozzle (df9.9)

9-2

Nozzle, Main (df15)

Nozzle, Main (df15)

10

Cap, Main Nozzle ()

Cap, Main Nozzle ()

11

Camber Assy, Flo ()

Camber Assy, Flo ()

12

Screw ()

Screw ()

13

Float ()

Float ()

14

Gasket, Float ()

Gasket, Float ()

15

.pin, Float ()

.pin, Float ()

16

Screw ()

Screw ()

17

Throttle Scr Sp ()

Throttle Scr Sp ()

18

Пружина

Пружина

19

Valve, Needle ()

Valve, Needle ()

20

.plate ()

.plate ()

21

Spring ()

Spring ()

22

Plunger ()

Plunger ()

23

.cap ()

.cap ()

24

.cap ()

.cap ()

25

.guide, Holder ()

.guide, Holder ()

26

.valve, Drain ()

.valve, Drain ()

27

Adjuster ()

Adjuster ()

28

.o Ring ()

.o Ring ()

29

Hose ()

Hose ()

30

09352-30503-600

.hose (l:600->200)

.hose (l:600->200)

31-1

Jet, Main (91.3) (df9.9)

Jet, Main (91.3) (df9.9)

31-2

.jet, Main (125) (df15)

.jet, Main (125) (df15)

32-1

.jet, Pilot (72.5) (df9.9)

.jet, Pilot (72.5) (df9.9)

32-2

.jet, Pilot (47.5) (df15)

.jet, Pilot (47.5) (df15)

33

Screw ()

Screw ()
