Magneto (model:01~08) для лодочных моторов Suzuki Marine DF60/DF70 (2008)

Москва и регионы России

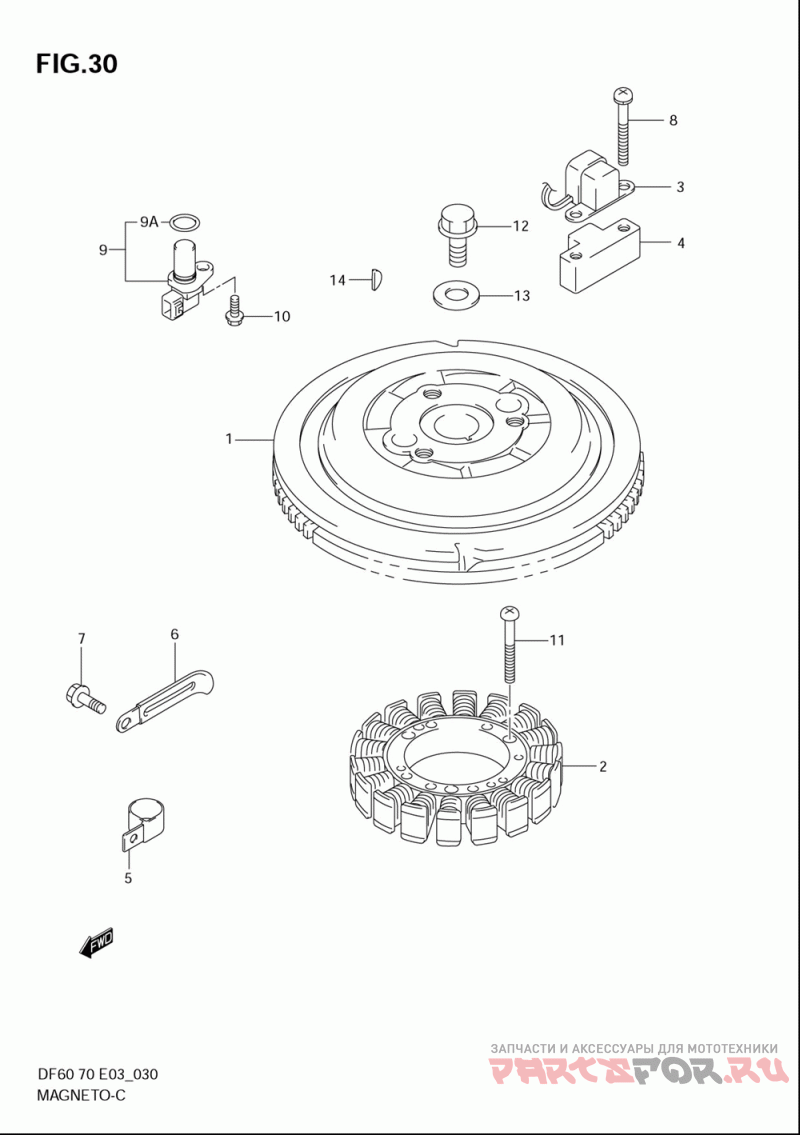

Magneto (model:01~08)

Suzuki Marine DF60/DF70

Magneto (model:01~08)

#

oem код

название

цена

1

Flywheel, Magne ()

Flywheel, Magne ()

2

Coil, Btry Charg ()

Coil, Btry Charg ()

3-1

Coil Assy, Ign T ()

Coil Assy, Ign T ()

3-2

Coil, Ignition T (model:03~08)

Coil, Ignition T (model:03~08)

4

Spacer, Cam Puls ()

Spacer, Cam Puls ()

5

Clamp ()

Clamp ()

6

Clamp (<-09404-06432)

Clamp (<-09404-06432)

7

Болт

Болт

9

Sensor Assy, Ckp ()

Sensor Assy, Ckp ()

9A

O Ring ()

O Ring ()

10

Болт

Болт

11

Винт

Винт

12

Болт

Болт

13

Washer (16.5x36x4.5) ()

Washer (16.5x36x4.5) ()

14

Key, Woodruff ()

Key, Woodruff ()

3-2

Coil Comp, Ign T (model:03~08)

Coil Comp, Ign T (model:03~08)
