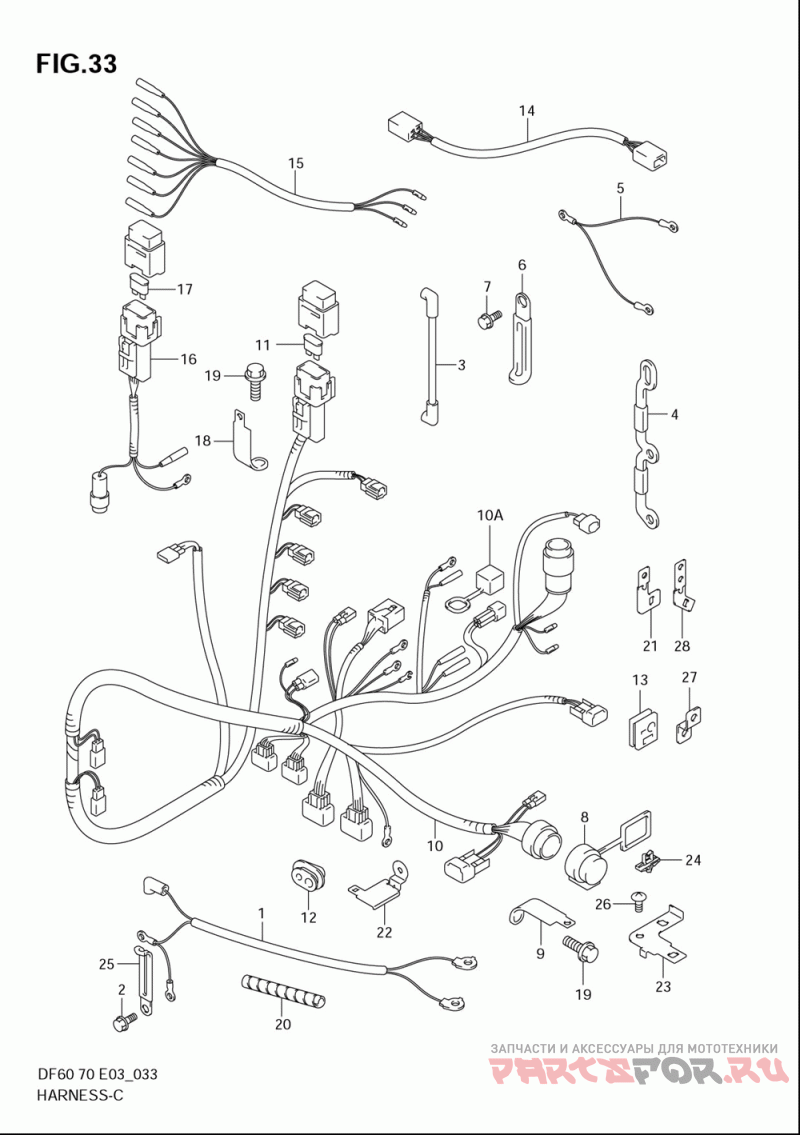

Жгут проводов

Suzuki Marine DF60/DF70

Suzuki Marine
#oem кодцена
1-1
33810-99E00
Cable Assy, Star ()
1-2
33810-99E10
Cable Assy, Star (model:01~08)
2
01550-08167
.bolt, Remocon Cable Holder ()
3
33820-99E00
Cable Assy, Star ()
4
33831-99E01
Plate, Ptt Relay (model:98~05)
5
33832-94601
Cable Assy, Trim (model:98~05)
6-1
29404-93J10
Clamp (model:98~07<-09404-06432)
6-2
09404-08207
Clamp ()
7-1
01550-06107
Болт
7-2
01550-06127
Bolt (model:05~08)
8
33634-99E00
Cap, Service Con (model:98~07)
9
36745-99E00
Bracket, Fuse Ca (model:98~05)
10-1
36610-99E80
Harness, Wiring (~model:00)
10-2
36610-99E50
Harness Assy, W (model:01,02)
10-3
36610-99EA0
Harness Assy, Wi (model:03)
10-4
36610-99ED0
Harness Assy, Wi (model:04)
10-5
36610-99EF0
Harness Assy, Wi (model:05)
10-6
36610-99EH0
Harness Assy, Wi (model:06, 07->36610-99eh0)
10-7
36610-99EL0
Harness Assy, Wi (model:08)
10A
33634-96J00
Cap, Service Con (model:08)
11-1
09481-15101
.fuse (15a) ()
11-2
09481-30501
.fuse (30a) (model:01~08)
12-1
36656-87D11
Grommet, Ptt Cab ()
12-2
36656-99E10
Grommet, Ptt Cab (model:04~08)
13-1
36658-99E01
Grommet, Cable ()
13-2
36658-99E10
Grommet, Cable (type:thmodel:05~08)
14
36682-92E00
Monitor Harness (~model:04)
15
36630-92E00
Wire Assy, Instr (~model:04)
16
36740-99E00
Case Assy, Fuse( (~model:00)
17
09481-30101
.fuse (30a) (~model:00)
20
33834-99E10
Protector, 17.5x ()
21
36617-90J00
Bracket, Joint C (model:04~07)
22
36616-99E00
Holder, Connecto (model:05~08)
23
36745-99E10
Bracket, Service (model:06~08)
26
02142-06127
Screw (model:08)
27
36617-93J10
Bracket, Harness (model:08)
