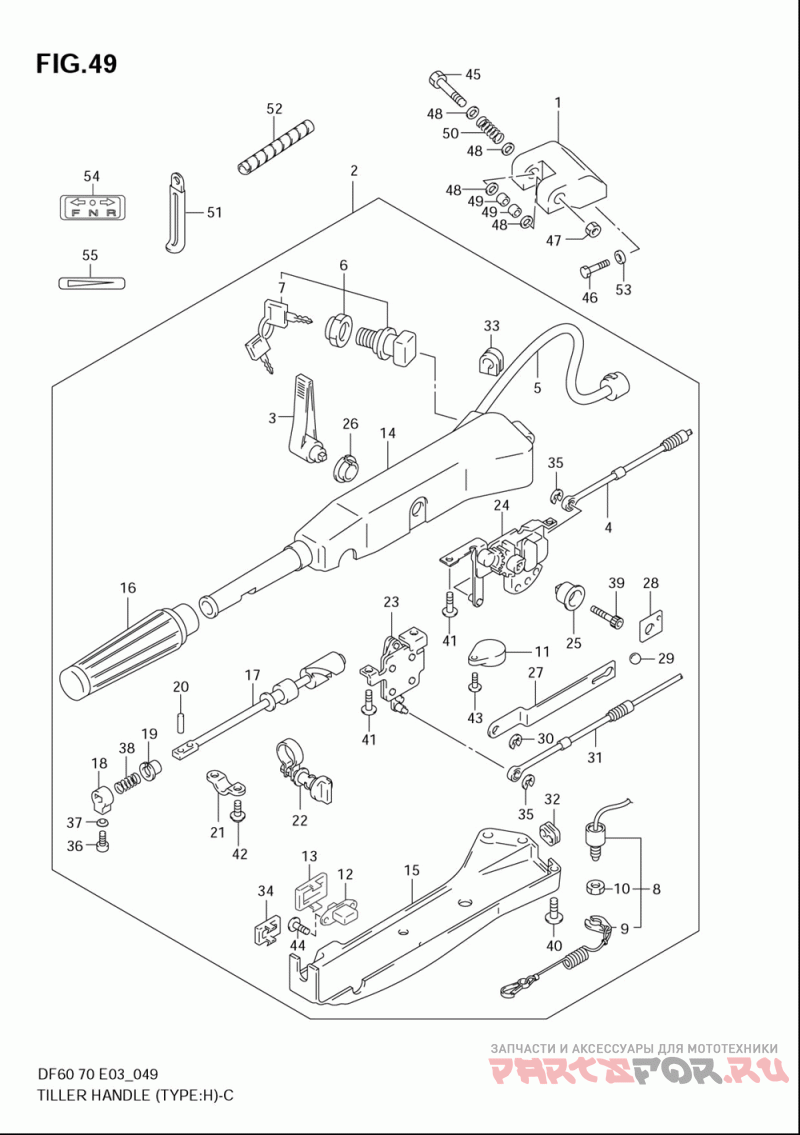

Румпель (type:h) для лодочных моторов Suzuki Marine DF60/DF70 (2008)

Москва и регионы России

Румпель (type:h)

Suzuki Marine DF60/DF70

Румпель (type:h)

#

oem код

название

цена

1

43761-87J01-0EP

Bracket, Tiller ()

Bracket, Tiller ()

2

63110-99E06-0EP

Handle Assy, Til (->63110-99e05-0ep)

Handle Assy, Til (->63110-99e05-0ep)

3

21111-87J10-0EP

Lever, Shift(bla ()

Lever, Shift(bla ()

4

Cable, Shift ()

Cable, Shift ()

5

Wire, Handle ()

Wire, Handle ()

6

Switch Assy, Ign ()

Switch Assy, Ign ()

7-1

Key (11) ()

Key (11) ()

7-2

Key (12) ()

Key (12) ()

7-3

Key (13) ()

Key (13) ()

7-4

Key (14) ()

Key (14) ()

7-5

Key (15) ()

Key (15) ()

7-6

Key (16) ()

Key (16) ()

7-7

Key (17) ()

Key (17) ()

7-8

Key (18) ()

Key (18) ()

7-9

Key (19) ()

Key (19) ()

7-10

Key (20) ()

Key (20) ()

8

Switch Assy, Eme ()

Switch Assy, Eme ()

9

Plate Assy, Emer ()

Plate Assy, Emer ()

10

Гайка

Гайка

11

Buzzer Set, Warn ()

Buzzer Set, Warn ()

12

Switch, Trim ()

Switch, Trim ()

13

Cap, Trim Sw ()

Cap, Trim Sw ()

14

63111-87J10-0EP

Housing, Tiller ()

Housing, Tiller ()

15

Cover, Under ()

Cover, Under ()

16

Grip Comp, Handl ()

Grip Comp, Handl ()

17

Rod, Handle ()

Rod, Handle ()

18

Stopper, Handle ()

Stopper, Handle ()

19

Bush ()

Bush ()

20

Handle Rod Pin ()

Handle Rod Pin ()

21

Plate, Handle ()

Plate, Handle ()

22

Adjuster, Handle ()

Adjuster, Handle ()

23

Arm Assy, Thrott ()

Arm Assy, Thrott ()

24

Gear Assy, Shift ()

Gear Assy, Shift ()

25

Spacer, Clutch L ()

Spacer, Clutch L ()

26

Bush, Clutch Lev ()

Bush, Clutch Lev ()

27

Plate, Lock ()

Plate, Lock ()

28

Plate, Ball Guid ()

Plate, Ball Guid ()

29

Ball ()

Ball ()

30

E Ring ()

E Ring ()

31

Cable, Throttle ()

Cable, Throttle ()

32

Frommet, Throt ()

Frommet, Throt ()

33

Grommet, Wire Ha ()

Grommet, Wire Ha ()

34

Cover, Trim Sw ()

Cover, Trim Sw ()

35

E-ring ()

E-ring ()

36

.screw, Handle Grip (6x23) ()

.screw, Handle Grip (6x23) ()

37

.washer, Handle Grip Screw ()

.washer, Handle Grip Screw ()

38

Spring, Handle L ()

Spring, Handle L ()

39

.bolt (8x50) ()

.bolt (8x50) ()

40

.screw (5x14) ()

.screw (5x14) ()

41

.bolt (6x12) ()

.bolt (6x12) ()

42

.screw (5x12) ()

.screw (5x12) ()

43

Винт

Винт

44

.screw (2x6) ()

.screw (2x6) ()

45

Болт

Болт

46

Болт

Болт

47

Гайка

Гайка

48

.washer (10.5x22x2.5) ()

.washer (10.5x22x2.5) ()

49

Bush Handle ()

Bush Handle ()

50

Spring ()

Spring ()

51

.clamp ()

.clamp ()

52

Tube, Sw Lead ()

Tube, Sw Lead ()

53

Шайба

Шайба

54

Mark, Clutch Shi ()

Mark, Clutch Shi ()

55

Mark, Handle Gri ()

Mark, Handle Gri ()
