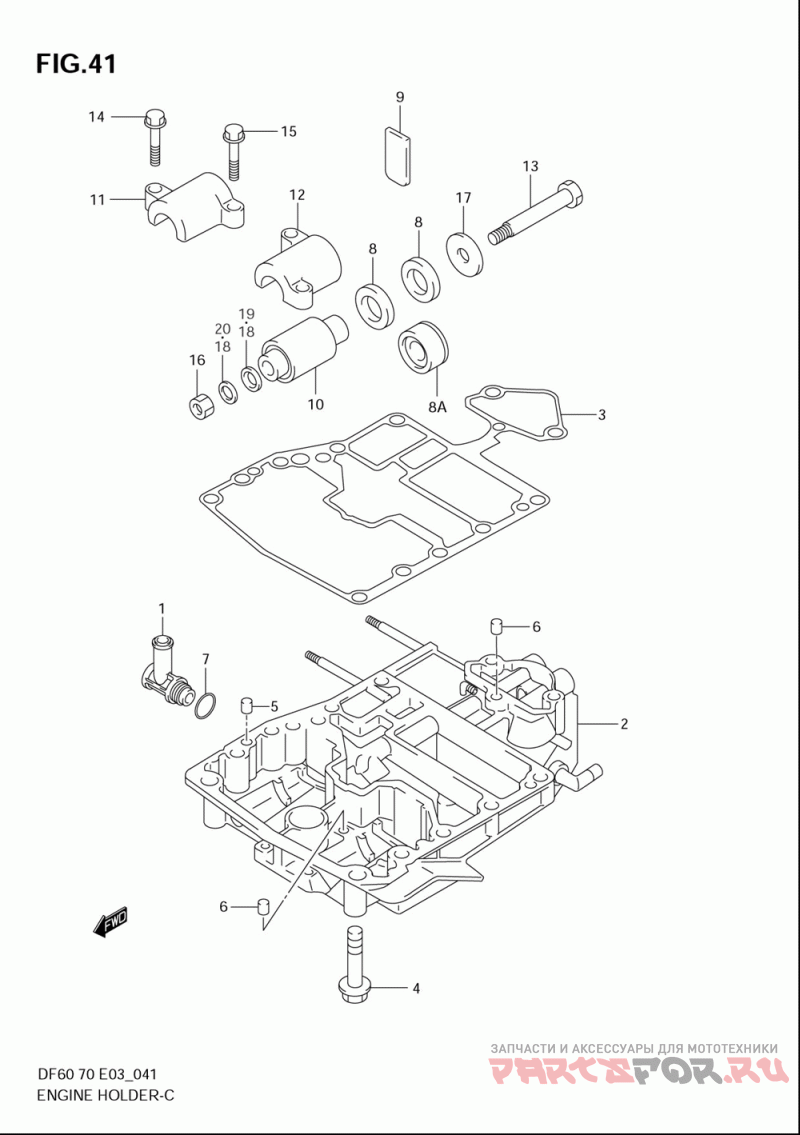

Основание двигателя

Suzuki Marine DF60/DF70

Suzuki Marine
#oem кодцена
1-1
17573-89J02
Pipe, Water Retu ()
2
51110-99802-0EP
Holder Set, Engi ()
3
51211-99E00
Gasket, Engine H ()
4
09117-10039
Bolt (10x80) ()
5
09206-08001
Pin ()
6
04211-09149
Dowel Pin ()
7
09280-20006
O Ring (d:1.9, Id:19.8) ()
8
54121-87E00
Stopper, Upper T ()
8A
54120-99E01
Stopper Comp, Up (df60:031786~model:08df70:033802~model:08)
9
54125-99E00
Mount, Upper Thr ()
10-1
54130-87E31
Mount Comp, Uppe (type:l)
10-2
54130-87E01
Mount Comp, Uppe (type:xnot For Us Market)
11
54148-99E01-0EP
Cover, Upper Mou ()
12
54149-99E01-0EP
Cover, Upper Mou ()
13-1
09100-12091
Bolt, 12x115, Pit ()
13-2
54112-99E01
Bolt, Upper Moun (model:99~08<-09100-12074)
14-1
09116-08128
Bolt, 8x40 ()
15
09116-08122
.bolt, Handle Cover (8x30) (<-09116-08099)
16-1
09140-12043
Nut (model:98)
16-2
09159-12014
Nut (model:99~08)
17
09160-12065
Washer (12.2x40x3.0) (~model:00)
18
09160-12066
.washer (12.5x22x2.5) (df60:~510197df70:~510872)
19
54113-90J00
Washer (12.5x24x2.5) (df60:510198~df70:510873~)
20
09160-12110
Washer (12.5x22x3) (df60:510198~df70:510873~)
