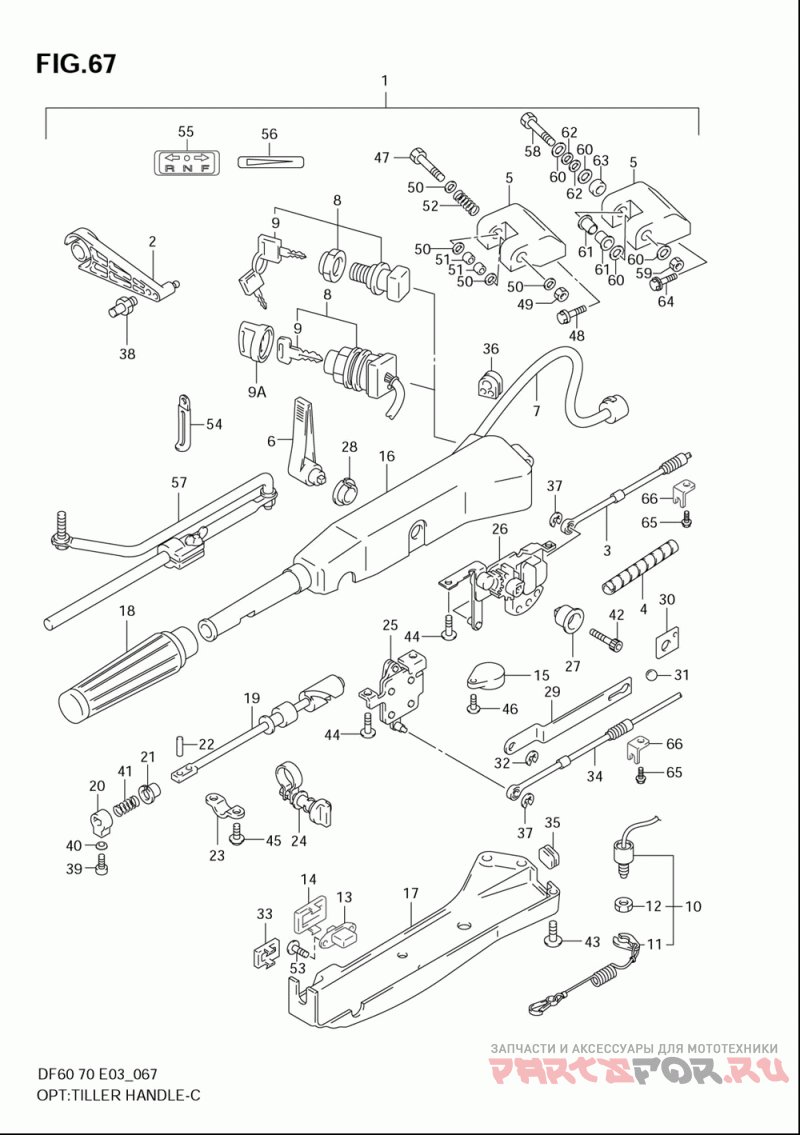

Опции - рукоятка румпеля для лодочных моторов Suzuki Marine DF60/DF70 (2008)

Москва и регионы России

Опции - рукоятка румпеля

Suzuki Marine DF60/DF70

Опции - рукоятка румпеля

#

oem код

название

цена

1-1

63002-99E06-0EP

Df60/70 Tilkt/t ()

Df60/70 Tilkt/t ()

1-2

63002-99E24-0EP

Kit, Tiller Hand (model:05~)

Kit, Tiller Hand (model:05~)

2

Lever, Interlink ()

Lever, Interlink ()

3

Cable, Shift ()

Cable, Shift ()

4

Tube, Sw Lead (l:250->100<-33833-95510)

Tube, Sw Lead (l:250->100<-33833-95510)

5-1

43761-87J01-0EP

Bracket, Tiller ()

Bracket, Tiller ()

5-2

43761-87J11-0EP

Bracket, Tiller (for 63002-99e23-0ep)

Bracket, Tiller (for 63002-99e23-0ep)

6

21111-87J10-0EP

Lever, Shift(bla ()

Lever, Shift(bla ()

7-1

Wire, Handle ()

Wire, Handle ()

7-2

Wire Assy, Handl (model:05~08)

Wire Assy, Handl (model:05~08)

8-1

Switch Assy, Ign ()

Switch Assy, Ign ()

9-1

Key (11) ()

Key (11) ()

9-2

Key (12) ()

Key (12) ()

9-3

Key (13) ()

Key (13) ()

9-4

Key (14) ()

Key (14) ()

9-5

Key (15) ()

Key (15) ()

9-6

Key (16) ()

Key (16) ()

9-7

Key (17) ()

Key (17) ()

9-8

Key (18) ()

Key (18) ()

9-9

Key (19) ()

Key (19) ()

9-10

Key (20) ()

Key (20) ()

9-11

Key (931) (model:04~08)

Key (931) (model:04~08)

9-12

Key (932) (model:04~08)

Key (932) (model:04~08)

9-13

Key (933) (model:04~08)

Key (933) (model:04~08)

9-14

Key (934) (model:04~08)

Key (934) (model:04~08)

9-15

Key (935) (model:04~08)

Key (935) (model:04~08)

9-16

Key (936) (model:04~08)

Key (936) (model:04~08)

9-17

Key (937) (model:04~08)

Key (937) (model:04~08)

9-18

Key (938) (model:04~08)

Key (938) (model:04~08)

9-19

Key (939) (model:04~08)

Key (939) (model:04~08)

9-20

Key (940) (model:04~08)

Key (940) (model:04~08)

9-21

Key (941) (model:04~08)

Key (941) (model:04~08)

9-22

Key (942) (model:04~08)

Key (942) (model:04~08)

9A

Cap, Key (model:04~08)

Cap, Key (model:04~08)

10

Switch Assy, Eme ()

Switch Assy, Eme ()

11

Plate Assy, Emer ()

Plate Assy, Emer ()

12

Гайка

Гайка

13

Switch, Trim ()

Switch, Trim ()

14

Cap, Trim Sw ()

Cap, Trim Sw ()

15

Buzzer Set, Warn ()

Buzzer Set, Warn ()

16-1

63111-87J10-0EP

Housing, Tiller (->63111-87j10-0epused W/ 63611-87j00 X263612-87j00 X2)

Housing, Tiller (->63111-87j10-0epused W/ 63611-87j00 X263612-87j00 X2)

17

Cover, Under ()

Cover, Under ()

18

Grip Comp, Handl ()

Grip Comp, Handl ()

19

Rod, Handle ()

Rod, Handle ()

20

Stopper, Handle ()

Stopper, Handle ()

21

Bush ()

Bush ()

22

Handle Rod Pin ()

Handle Rod Pin ()

23

Plate, Handle ()

Plate, Handle ()

24

Adjuster, Handle ()

Adjuster, Handle ()

25

Arm Assy, Thrott ()

Arm Assy, Thrott ()

26

Gear Assy, Shift ()

Gear Assy, Shift ()

27

Spacer, Clutch L ()

Spacer, Clutch L ()

28

Bush, Clutch Lev ()

Bush, Clutch Lev ()

29

Plate, Lock ()

Plate, Lock ()

30

Plate, Ball Guid ()

Plate, Ball Guid ()

31

Ball ()

Ball ()

32

E Ring ()

E Ring ()

33

Cover, Trim Sw ()

Cover, Trim Sw ()

34

Cable, Throttle ()

Cable, Throttle ()

35

Frommet, Throt ()

Frommet, Throt ()

36

Grommet, Wire Ha ()

Grommet, Wire Ha ()

37

E-ring ()

E-ring ()

38

Pin, Connector ()

Pin, Connector ()

39

.screw, Handle Grip (6x23) ()

.screw, Handle Grip (6x23) ()

40

.washer, Handle Grip Screw ()

.washer, Handle Grip Screw ()

41

Spring, Handle L ()

Spring, Handle L ()

42

.bolt (8x50) ()

.bolt (8x50) ()

43

.screw (5x14) ()

.screw (5x14) ()

44

.bolt (6x12) ()

.bolt (6x12) ()

45

.screw (5x12) ()

.screw (5x12) ()

46

Винт

Винт

47

Bolt (for 63002-99e06-0ep63002-99e21-0ep)

Bolt (for 63002-99e06-0ep63002-99e21-0ep)

48-1

Bolt (10x45) ()

Bolt (10x45) ()

49

Nut (for 63002-99e06-0ep63002-99e21-0ep)

Nut (for 63002-99e06-0ep63002-99e21-0ep)

50

.washer (10.5x22x2.5) (for 63002-99e06-0ep63002-99e21-0ep)

.washer (10.5x22x2.5) (for 63002-99e06-0ep63002-99e21-0ep)

51

Bush Handle (for 63002-99e06-0ep63002-99e21-0ep)

Bush Handle (for 63002-99e06-0ep63002-99e21-0ep)

52

Spring (for 63002-99e06-0ep63002-99e21-0ep)

Spring (for 63002-99e06-0ep63002-99e21-0ep)

53

.screw (2x6) ()

.screw (2x6) ()

54

Clamp (<-09404-10205)

Clamp (<-09404-10205)

55

Mark, Clutch Shi ()

Mark, Clutch Shi ()

56

Mark, Handle Gri ()

Mark, Handle Gri ()

57

Adjuster, Steer ()

Adjuster, Steer ()

60

.washer (10.5x22x1.5) (for 63002-99e23-0ep)

.washer (10.5x22x1.5) (for 63002-99e23-0ep)

61

.bush (for 63002-99e23-0ep)

.bush (for 63002-99e23-0ep)

62

Washer (for 63002-99e23-0ep)

Washer (for 63002-99e23-0ep)

63

Spacer, Tiller H (for 63002-99e23-0ep)

Spacer, Tiller H (for 63002-99e23-0ep)

65

Bolt, Clamp Brac (for 63002-99e23-0ep)

Bolt, Clamp Brac (for 63002-99e23-0ep)

66

Bracket, Clamp (for 63002-99e23-0ep)

Bracket, Clamp (for 63002-99e23-0ep)
