Крышка двигателя (model:98~02) для лодочных моторов Suzuki Marine DF60/DF70 (2008)

Москва и регионы России

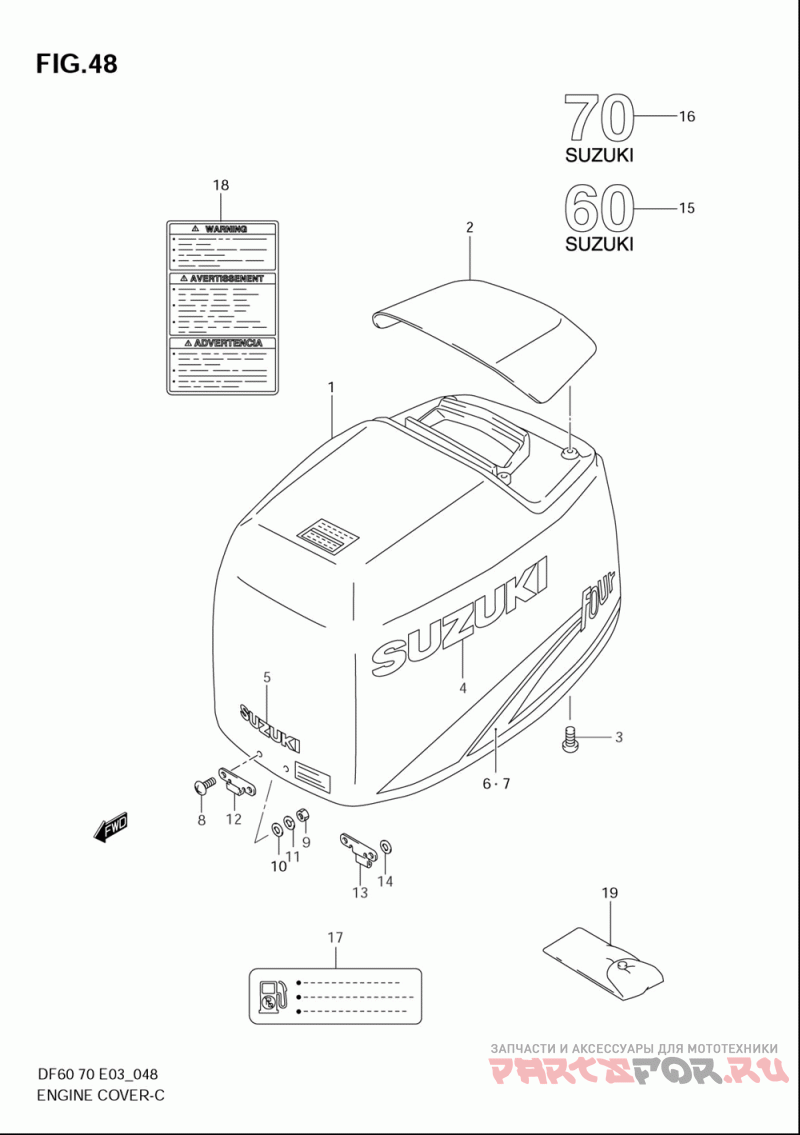

Крышка двигателя (model:98~02)

Suzuki Marine DF60/DF70

Крышка двигателя (model:98~02)

#

oem код

название

цена

1

61400-99842-0EP

Cover Set, Engin ()

Cover Set, Engin ()

2-1

61431-99E11-0EP

Handle, Tilt Up (->61431-99e10-0epused With 09116-06106)

Handle, Tilt Up (->61431-99e10-0epused With 09116-06106)

3-1

Screw (model:98, 99)

Screw (model:98, 99)

3-2

Bolt (model:00~02)

Bolt (model:00~02)

4

68111-34301-Y2D

.mark, Emblem Side (silver) ()

.mark, Emblem Side (silver) ()

5

Mark, Emblem Fro ()

Mark, Emblem Fro ()

6

Stripe, Engine C ()

Stripe, Engine C ()

7

Stripe, Engine C ()

Stripe, Engine C ()

8

.screw (6x20) ()

.screw (6x20) ()

9

.nut ()

.nut ()

10

Washer (6.5x20x1.5) (~model:98)

Washer (6.5x20x1.5) (~model:98)

11

.washer (~model:98)

.washer (~model:98)

12

Hook, Fastener ()

Hook, Fastener ()

13

Bracket.enginec (model:99~02)

Bracket.enginec (model:99~02)

14

Washer (6.5x15x1.5) (model:99~02)

Washer (6.5x15x1.5) (model:99~02)

15

Mark, Emblem Rea (df60)

Mark, Emblem Rea (df60)

16

Mark, Emblem Rea (df70)

Mark, Emblem Rea (df70)

17

Label, Fuel Lim ()

Label, Fuel Lim ()

18

Label, Engine Co ()

Label, Engine Co ()

19

Tool Set ()

Tool Set ()
