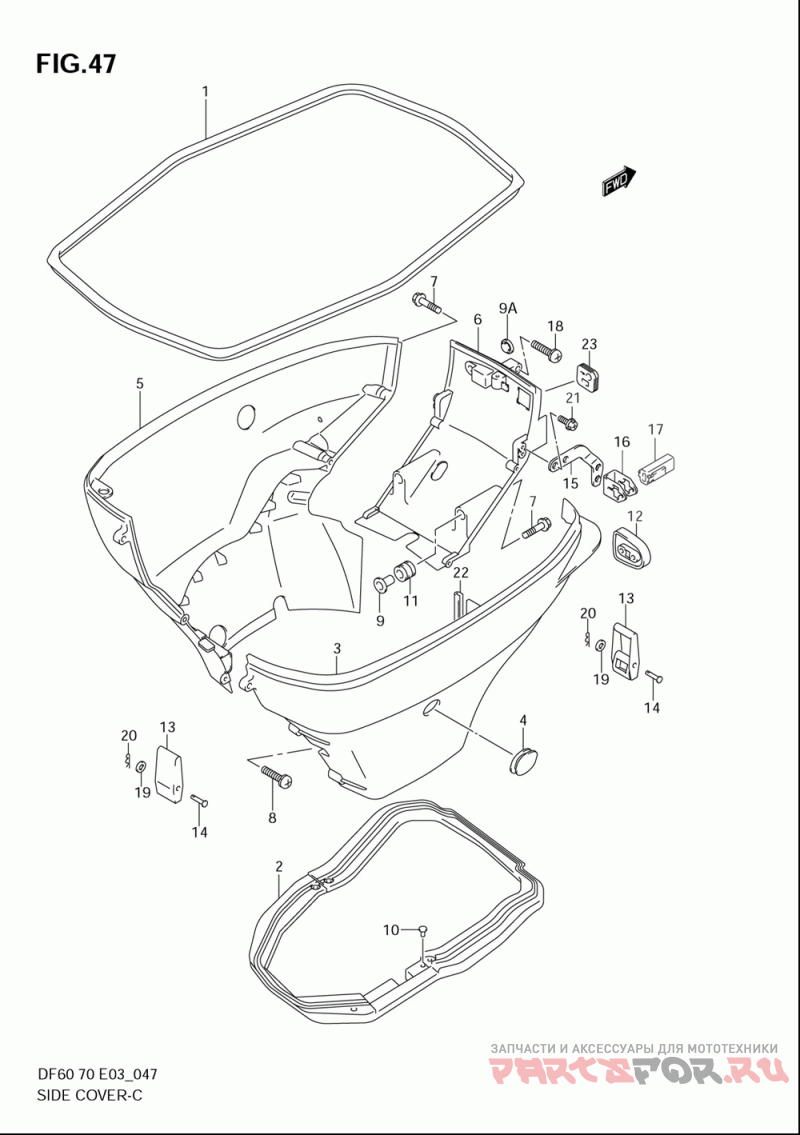

Боковая панель для лодочных моторов Suzuki Marine DF60/DF70 (2008)

Боковая панель

Suzuki Marine DF60/DF70

oem код

название

цена

61112-99E01

Rubber, Side Co ()

61134-99E02

Seal, Side Cover ()

3-1

61810-99811-0EP

Cover Set, Side (->61811-99e01-0epused With 61124-99e01)

3-3

61811-99E03-0EP

Cover, Side Stbd (df60t:780233~df70t:780891~)

61817-99E00

Plug, Side Cover ()

5-1

61821-99E02-0EP

Cover, Side Port (->61810-99810-0epcover Set, Side)

6-1

61831-99E00-0EP

Panel, Front (model:98~00)

6-2

61831-99E11-0EP

Panel, Front (model:01~08)

09118-08127

Bolt (8x40) ()

8-1

09136-06144

Screw (6x30) ()

8-2

09136-06148

Screw (df60t:780233~df70t:780891~)

09169-08039

Шайба

09250-12006

.plug (model:01~05df60:~510598df70:~512083)

Pin ()

Cushion ()

Grommet, Remocon ()

Fastener Comp ()

Pin, Lever ()

15-1

61833-99E01

Bracket, Front P ()

15-2

61833-99E02

Bracket, Front P (model:08)

Holder, Remocon ()

Stopper, Remocon ()

Screw (6x30) ()

Washer ()

Pin, Snap ()

Болт

Cushion Side Co ()

23-1

36658-99E01

Grommet, Cable (df60t, 70t)

23-2

36658-99E10

Grommet, Cable (df60th,70thmodel:05~08)
