Carburetor (df4/6 model:05~08) для лодочных моторов Suzuki Marine DF4/DF6 (2008)

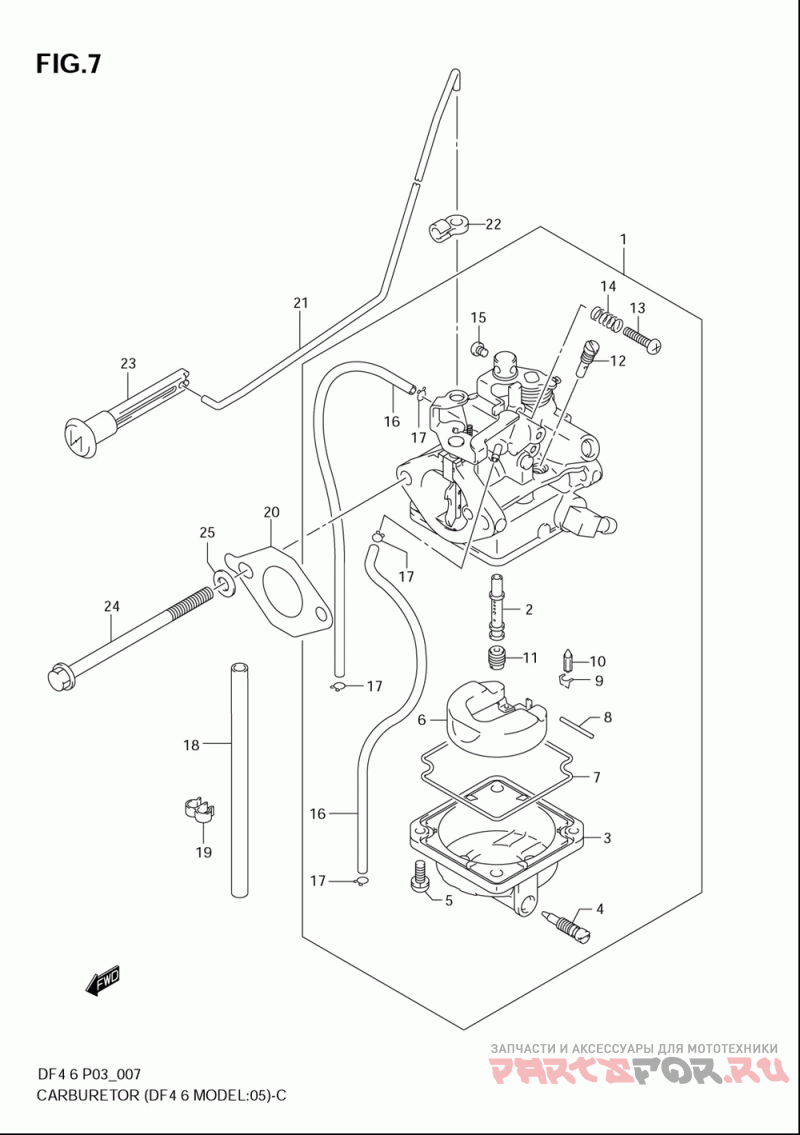

Carburetor (df4/6 model:05~08)

Suzuki Marine DF4/DF6

oem код

название

цена

1-1

13200-91J81

Carburetor, Set (df4)

1-2

13200-91J70

Carburetor Assy (df6:~511203)

1-3

13200-91JB1

Carburetor Set (df6:511204~)

2-1

13236-91J30

Nozzle, Main (df4)

2-2

Nozzle, Main (df6)

Chamber, Float ()

Screw, Drain ()

Screw, Float Cha ()

Float ()

Gasket, Float Ch ()

Pin, Float ()

Clip, Valve ()

Valve, Float ()

11-1

09491-70016

.jet, Main (70) (df4)

11-2

09491-78010

.jet, Main (78) (df6)

12-1

09492-35029

.jet, Main (35) (df4)

12-2

09492-38008

.jet, Pilot (38) (df6)

Screw, Throttle ()

Spring, Stop Scr ()

Screw ()

Hose, Air Vent (df4df6:511204~)

13276-91J00

Clip (df4df6:511204~)

09351-60802-200

Protector (df4df6:511204~)

09408-00200

Clamp (df4df6:511204~)

13125-91J10

Gasket, Carburet ()

21-1

Rod, Choke ()

Connector, Choke ()

Knob, Choke ()

Болт

.washer, Throttle Rod ()
