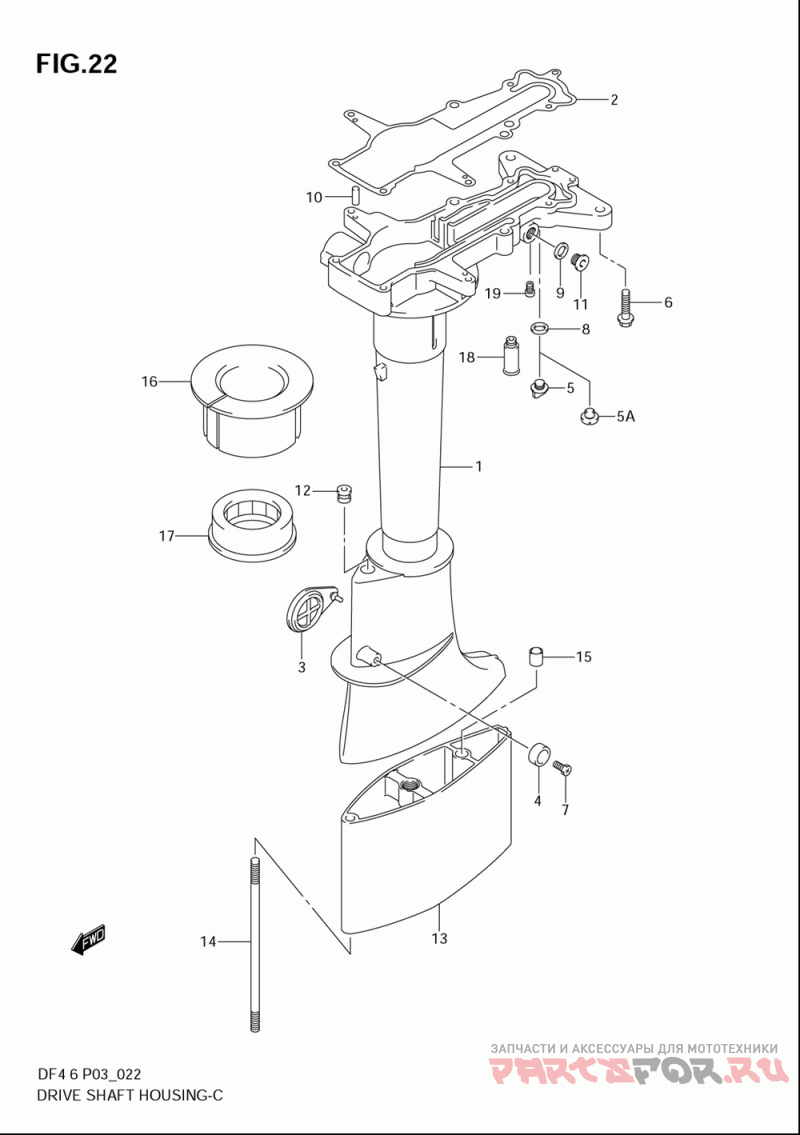

Корпус ведущего вала (нога) для лодочных моторов Suzuki Marine DF4/DF6 (2008)

Корпус ведущего вала (нога)

Suzuki Marine DF4/DF6

oem код

название

цена

1-1

52111-91J00-0EP

Housing, Drive S (->52111-91j20-0epused With 52117-92d0009168-1002209248-10008)

1-2

52111-91J20-0EP

Housing, Drive S (df4 Model:05df6:511204~)

Gasket, Drive Sh ()

Cover Cl Adjust ()

Anode, Protectio ()

Tube, Water Insp (df4 Model:03, 04df6:~511203)

09248-10008

Plug (10x7.5) (df4 Model:05~08df6:511204~)

09116-06189

Bolt, 6x38 ()

7-1

09128-06021

Bolt (6x14) ()

7-2

09103-06281

Bolt (6x14) (model:06~08)

09168-10022

Gasket (10x17x1.5) ()

Gasket ()

()

Plug (<-09248-12007)

Bush (<-25214-91j00)

Case, Extension( (type:l)

09108-08092

Stud Bolt (type:l)

09206-11006

(type:l)

16-1

54132-91J00

Rubber, Mount Up (df4 Model:03)

16-2

54132-91J10

Rubber, Mount Up (df4 Model:04~08df6 Model:03~08)

54162-91J00

Rubber, Mount Lo ()

55181-95200

Flush Attachmen (opt)

52117-92D00

Tube, Water Insp (df4 Model:05~08df6:511204~)
