Коленвал для лодочных моторов Suzuki Marine DF4/DF6 (2008)

Москва и регионы России

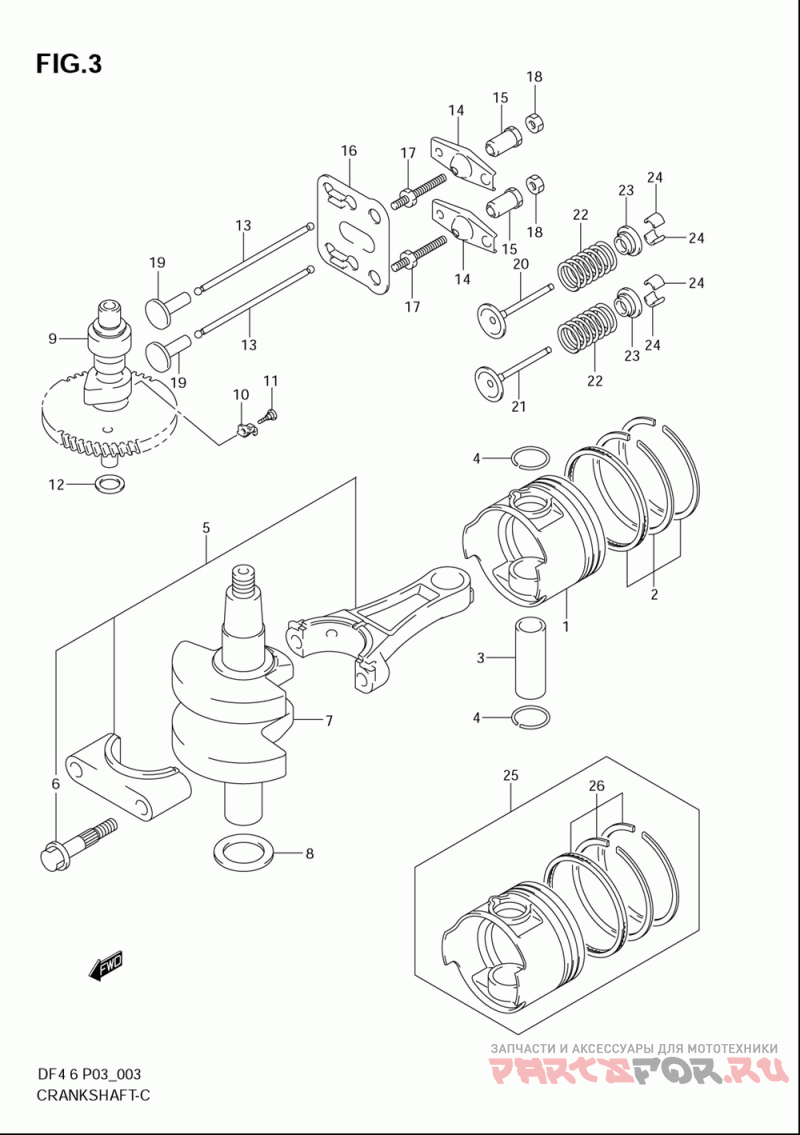

Коленвал

Suzuki Marine DF4/DF6

Коленвал

#

oem код

название

цена

1

12111-91J01-0B0

Piston ()

Piston ()

2-1

12140-91j00 ()

12140-91j00 ()

3

Pin, Piston ()

Pin, Piston ()

4

Circlip ()

Circlip ()

5

12160-90910-0A0

Connrod Assy (red)

Connrod Assy (red)

6

Bolt, Connrod ()

Bolt, Connrod ()

7

12200-91J00-0B0

Crankshaft Assy ()

Crankshaft Assy ()

8

Шайба

Шайба

9-1

Camshaft (df4 Model:03, 04)

Camshaft (df4 Model:03, 04)

9-2

Camshaft (df4 Model:05)

Camshaft (df4 Model:05)

9-5

Camshaft (model:06~08)

Camshaft (model:06~08)

10

Cam, Decomp ()

Cam, Decomp ()

11

Bolt, Decomp ()

Bolt, Decomp ()

12

Шайба

Шайба

13

Rod, Push ()

Rod, Push ()

14

Arm, Rocker ()

Arm, Rocker ()

15

Pivot ()

Pivot ()

16

Guide, Push Rod ()

Guide, Push Rod ()

17

Bolt, Stud ()

Bolt, Stud ()

18

Гайка

Гайка

19

Tappet ()

Tappet ()

20

Valve, Intake ()

Valve, Intake ()

21

Valve, Exhaust ()

Valve, Exhaust ()

22

Spring, Valve (<-12921-91j10)

Spring, Valve (<-12921-91j10)

23

Retainer, Valve ()

Retainer, Valve ()

24

Cotter, Valve ()

Cotter, Valve ()

25-1

12100-91J00-050

Piston Set, Os:0 (opt)

Piston Set, Os:0 (opt)

25-2

12100-91J10-050

Piston Set, Os:0 (opt Model:04~08)

Piston Set, Os:0 (opt Model:04~08)

26-1

12140-91J00-050

Ring Set, Piston (opt)

Ring Set, Piston (opt)

26-2

12140-91J10-050

Ring Set, Piston (opt Model:04~08)

Ring Set, Piston (opt Model:04~08)
