Ведущий вал для лодочных моторов Suzuki Marine DF25 (2008)

Москва и регионы России

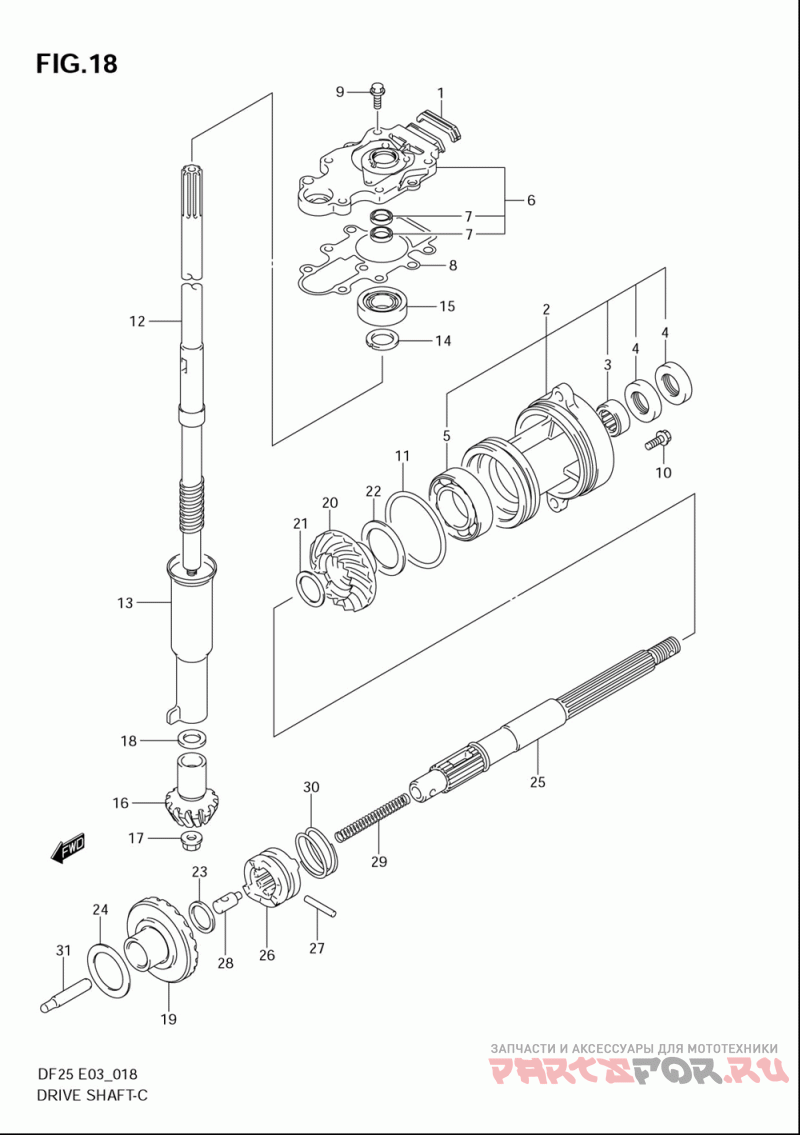

Ведущий вал

Suzuki Marine DF25

Ведущий вал

#

oem код

название

цена

1

Rubber, Exhaust ()

Rubber, Exhaust ()

2

56120-96332-0EP

Housing, Prop Sh ()

Housing, Prop Sh ()

3

.bearing ()

.bearing ()

4

Oil Seal, Prop ()

Oil Seal, Prop ()

5

.bearing, Rev Gear ()

.bearing, Rev Gear ()

6

56130-95J00-0EP

Housing Comp, Dr ()

Housing Comp, Dr ()

7

Seal, Drive Shaf ()

Seal, Drive Shaf ()

8

Gasket, Drive Sf ()

Gasket, Drive Sf ()

9

Bolt, 6x15 ()

Bolt, 6x15 ()

10

.bolt (6x25) ()

.bolt (6x25) ()

11

O Ring, Brg Hou ()

O Ring, Brg Hou ()

12-1

Shaft Comp, Driv ()

Shaft Comp, Driv ()

12-2

Shaft, Drive (l) ()

Shaft, Drive (l) ()

13

Collar, Drive Sh ()

Collar, Drive Sh ()

14

Washer, Thrust ()

Washer, Thrust ()

15

Bearing, Drive Shaft ()

Bearing, Drive Shaft ()

16

Pinion ()

Pinion ()

17

Nut, Pinion ()

Nut, Pinion ()

18-1

.washer (15x20x1.7) ()

.washer (15x20x1.7) ()

18-2

.washer (15x20x1.8) ()

.washer (15x20x1.8) ()

18-3

.washer (15x20x1.9) ()

.washer (15x20x1.9) ()

18-4

.washer (15x20x2.0) ()

.washer (15x20x2.0) ()

18-5

.washer (15x20x2.1) ()

.washer (15x20x2.1) ()

18-6

.washer (15x20x2.2) ()

.washer (15x20x2.2) ()

19

Gear, Forward ()

Gear, Forward ()

20

Gear, Reverse ()

Gear, Reverse ()

21-1

.washer (20x25.6x1.6) (rev Gear)

.washer (20x25.6x1.6) (rev Gear)

21-2

.washer (20x25.6x1.8) ()

.washer (20x25.6x1.8) ()

21-3

.washer (20x25.6x2.0) ()

.washer (20x25.6x2.0) ()

21-4

.washer (20x25.6x2.2) ()

.washer (20x25.6x2.2) ()

21-5

.washer (20x25.6x2.4) ()

.washer (20x25.6x2.4) ()

21-6

.washer (20x25.6x2.6) ()

.washer (20x25.6x2.6) ()

22-1

Shim (30x40x0.2) (rev Gear)

Shim (30x40x0.2) (rev Gear)

22-2

Shim (30x40x0.5) ()

Shim (30x40x0.5) ()

22-3

Shim (30x40x0.8) ()

Shim (30x40x0.8) ()

22-4

Shim (30x40x1.0) ()

Shim (30x40x1.0) ()

23

Washer (16x24x1.5) (fwd Gear)

Washer (16x24x1.5) (fwd Gear)

24-1

Shim (25x36x0.8) (fwd Gear)

Shim (25x36x0.8) (fwd Gear)

24-2

Shim (25x36x0.9) ()

Shim (25x36x0.9) ()

24-3

Shim (25x36x1.0) ()

Shim (25x36x1.0) ()

24-4

Shim (25x36x1.1) ()

Shim (25x36x1.1) ()

24-5

Shim (25x36x1.2) ()

Shim (25x36x1.2) ()

24-6

Shim (25x36x1.3) ()

Shim (25x36x1.3) ()

24-7

Shim (25x36x1.4) ()

Shim (25x36x1.4) ()

24-8

Shim (25x36x1.5) ()

Shim (25x36x1.5) ()

25

Shaft, Propeller ()

Shaft, Propeller ()

26

Shifter, Clutch ()

Shifter, Clutch ()

27

Pin, Cl Dog Shi ()

Pin, Cl Dog Shi ()

28

Pin ()

Pin ()

29

Spring, Return ()

Spring, Return ()

30

Spring, Dog ()

Spring, Dog ()

31

Rod, Push ()

Rod, Push ()
