Редуктор для лодочных моторов Suzuki Marine DF25 (2008)

Москва и регионы России

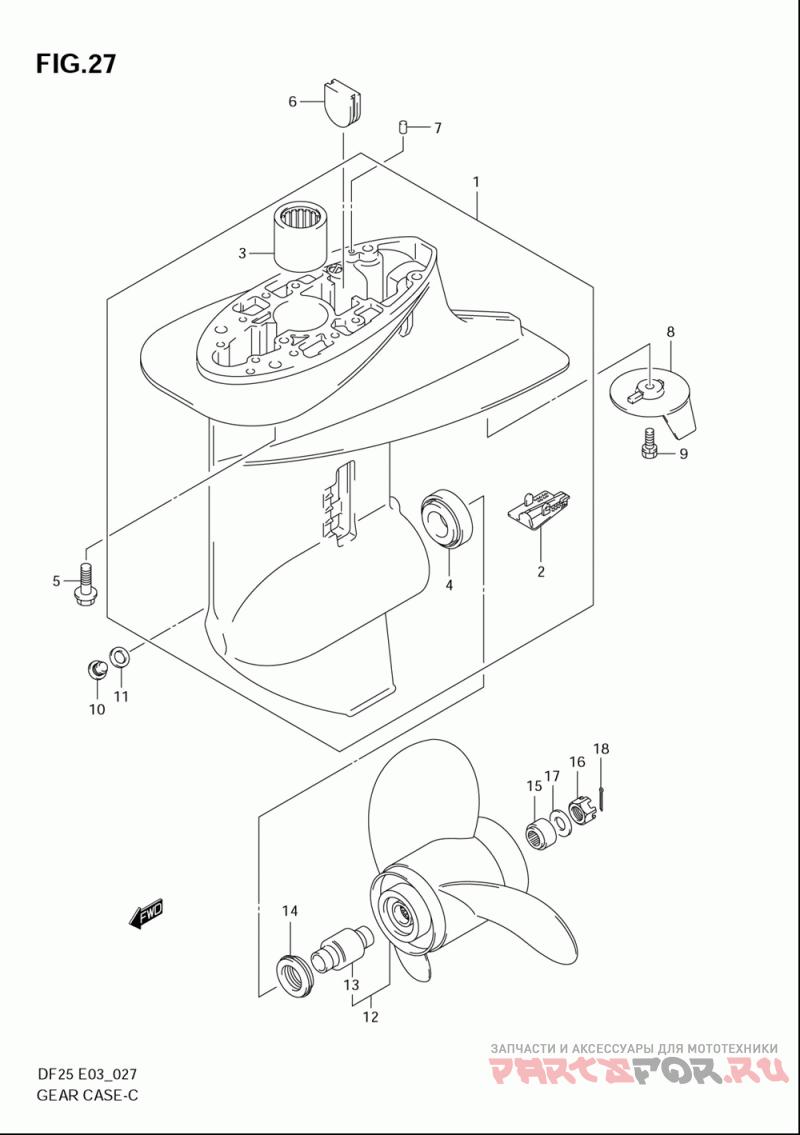

Редуктор

Suzuki Marine DF25

Редуктор

#

oem код

название

цена

1

55100-95J00-0EP

Case Assy, Gear ()

Case Assy, Gear ()

2

Cover, Gear Case ()

Cover, Gear Case ()

3

.bearing, Pinion ()

.bearing, Pinion ()

4

.bearing, Prop Shaft ()

.bearing, Prop Shaft ()

5

.bolt, Handle Cover (8x30) ()

.bolt, Handle Cover (8x30) ()

6

Grommet ()

Grommet ()

7

Pin ()

Pin ()

8

Trim Tab ()

Trim Tab ()

9

Bolt, 8x22 ()

Bolt, 8x22 ()

10

Plug (10x7.5) ()

Plug (10x7.5) ()

11

Gasket (10x17x1.5) ()

Gasket (10x17x1.5) ()

12-1

58100-96470-019

Prop(3x10-1/4x1 ()

Prop(3x10-1/4x1 ()

12-2

58100-96420-019

Prop(3x10-1/4x1 ()

Prop(3x10-1/4x1 ()

12-3

58100-96480-019

Prop(3x10-1/4x1 ()

Prop(3x10-1/4x1 ()

12-4

58100-96490-019

Prop(3x10-1/4x1 ()

Prop(3x10-1/4x1 ()

12-5

58100-95D00-019

Prop(3x10-1/4x1 ()

Prop(3x10-1/4x1 ()

12-6

58100-96370-019

Prop(3x10-1/4x9 (opt)

Prop(3x10-1/4x9 (opt)

13

Bush, Propeller ()

Bush, Propeller ()

14

Stopper, Propell ()

Stopper, Propell ()

15

Spacer Prop Nut ()

Spacer Prop Nut ()

16

Гайка

Гайка

17

Шайба

Шайба

18

Cotter Pin (l:25) ()

Cotter Pin (l:25) ()

19

Prop Hdwr 20-30 (opt Not Showninc.no.15~8)

Prop Hdwr 20-30 (opt Not Showninc.no.15~8)

20

Kit, Gear Case S (opt Not Shown)

Kit, Gear Case S (opt Not Shown)
