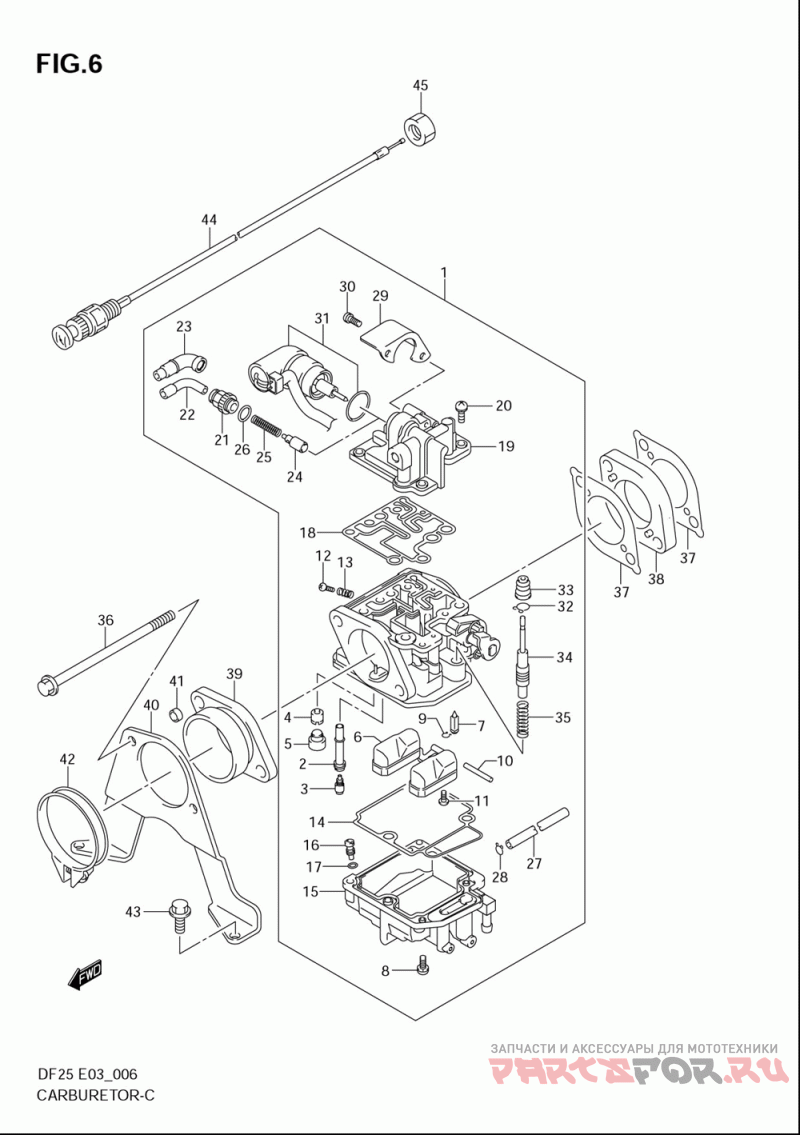

Карбюратор для лодочных моторов Suzuki Marine DF25 (2008)

Москва и регионы России

Карбюратор

Suzuki Marine DF25

Карбюратор

#

oem код

название

цена

1-1

Carburetor Assy (electric Startertype:ropt Manual Starter)

Carburetor Assy (electric Startertype:ropt Manual Starter)

1-2

Carburetor Assy (manual Starter)

Carburetor Assy (manual Starter)

2

Nozzle, Main ()

Nozzle, Main ()

3

.jet, Main (135) ()

.jet, Main (135) ()

4

.jet, Pilot (48) ()

.jet, Pilot (48) ()

5

Cap, Rubber ()

Cap, Rubber ()

6

Float ()

Float ()

7

Valve Comp, Floa ()

Valve Comp, Floa ()

8

Screw ()

Screw ()

9

.clip ()

.clip ()

10

Pin, Arm ()

Pin, Arm ()

11

Screw ()

Screw ()

12

Screw, Stop ()

Screw, Stop ()

13

Spring ()

Spring ()

14

Gasket, Float Ch ()

Gasket, Float Ch ()

15-1

Chamber, Float (electric Startertype:r)

Chamber, Float (electric Startertype:r)

15-2

Chamber, Float (manual Starter)

Chamber, Float (manual Starter)

16

Screw, Drain ()

Screw, Drain ()

17

O Ring ()

O Ring ()

18

U Ring ()

U Ring ()

19-1

Cover (electric Startertype:r)

Cover (electric Startertype:r)

19-2

Cover (manual Starter)

Cover (manual Starter)

21

Holder, Cable (manual Starter)

Holder, Cable (manual Starter)

22

Guide, Cable (manual Starter)

Guide, Cable (manual Starter)

23

Cap, Cable Seali (manual Starter)

Cap, Cable Seali (manual Starter)

24

Valve, Starter (manual Starter)

Valve, Starter (manual Starter)

25

Spring (manual Starter)

Spring (manual Starter)

26

.o Ring (manual Starter)

.o Ring (manual Starter)

27

Pipe ()

Pipe ()

28

09401-05402-XC0

Clip ()

Clip ()

29

Guard Heater (electric Startertype:r)

Guard Heater (electric Startertype:r)

30

Screw (electric Startertype:r)

Screw (electric Startertype:r)

31

Starter Assy (electric Startertype:r)

Starter Assy (electric Startertype:r)

32

Clip ()

Clip ()

33

Cap, Rubber ()

Cap, Rubber ()

34

Plunger ()

Plunger ()

35

Spring ()

Spring ()

36

Bolt, Carburetor (6x105) ()

Bolt, Carburetor (6x105) ()

37

Gasket, Carburet ()

Gasket, Carburet ()

38

Insulator, Carbu ()

Insulator, Carbu ()

39

Tube Comp, Outle ()

Tube Comp, Outle ()

40

Plate, Outlet Tu ()

Plate, Outlet Tu ()

41

Spacer, 6.5x10x5 (<-09180-06309)

Spacer, 6.5x10x5 (<-09180-06309)

43

.bolt, Remocon Cable Holder ()

.bolt, Remocon Cable Holder ()

44

Трос праймер

Трос праймер

45

.nut, Starter Switch (m14) (manual Starter)

.nut, Starter Switch (m14) (manual Starter)
