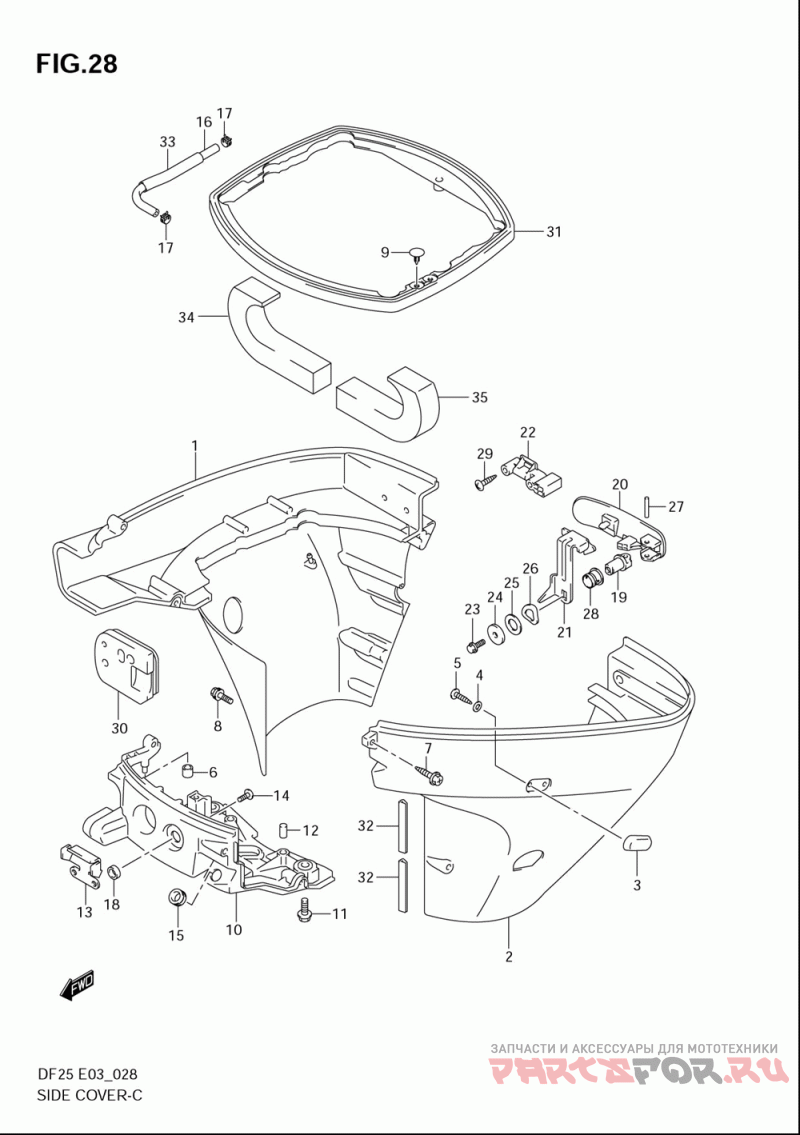

Боковая панель для лодочных моторов Suzuki Marine DF25 (2008)

Москва и регионы России

Боковая панель

Suzuki Marine DF25

Боковая панель

#

oem код

название

цена

1

61810-95J00-0EP

Cover Comp, Side ()

Cover Comp, Side ()

2-1

61821-95J01-0EP

Cover, Port Side ()

Cover, Port Side ()

2-2

61821-95J10-0EP

Cover, Side Port (type:r)

Cover, Side Port (type:r)

3

Protector, Side (except Type:r)

Protector, Side (except Type:r)

4

.washer (except Type:r)

.washer (except Type:r)

6

.cushion, Bracket ()

.cushion, Bracket ()

7

Винт

Винт

8

Screw (6x55) ()

Screw (6x55) ()

9

09409-05302-5PK

Pin ()

Pin ()

10

61831-95J00-0EP

Panel, Front ()

Panel, Front ()

11

Bolt, 8x22 ()

Bolt, 8x22 ()

12

Pin ()

Pin ()

13

Hook, Instrument ()

Hook, Instrument ()

14

Винт

Винт

15

Grommet, Fuel Co ()

Grommet, Fuel Co ()

16

Hose, Water ()

Hose, Water ()

17

Clip ()

Clip ()

18

Cushion ()

Cushion ()

19

Shaft, Engine Co ()

Shaft, Engine Co ()

20

Lever, Hook Rear ()

Lever, Hook Rear ()

21

Hook, Engine Cov ()

Hook, Engine Cov ()

22

Latch, Hook Leve ()

Latch, Hook Leve ()

23

Bolt (6x15) ()

Bolt (6x15) ()

24

Washer, 6.5x24x4 ()

Washer, 6.5x24x4 ()

25

Washer, Rear Hook Lever ()

Washer, Rear Hook Lever ()

26

Washer, Wave ()

Washer, Wave ()

27

Pin,hook Lever, ()

Pin,hook Lever, ()

28

Bush ()

Bush ()

30-1

Grommet, Cable(m (manual Starter)

Grommet, Cable(m (manual Starter)

30-2

Grommet, Cable(m (electric Starter)

Grommet, Cable(m (electric Starter)

30-3

Grommet, Cable (type:r)

Grommet, Cable (type:r)

31

Seal, Side Cover ()

Seal, Side Cover ()

32

Cushion, Side Co ()

Cushion, Side Co ()

33

Protector, Evap (l:290->140)

Protector, Evap (l:290->140)

34

Seal, Upper Moun ()

Seal, Upper Moun ()

35

Seal, Upper Moun ()

Seal, Upper Moun ()
