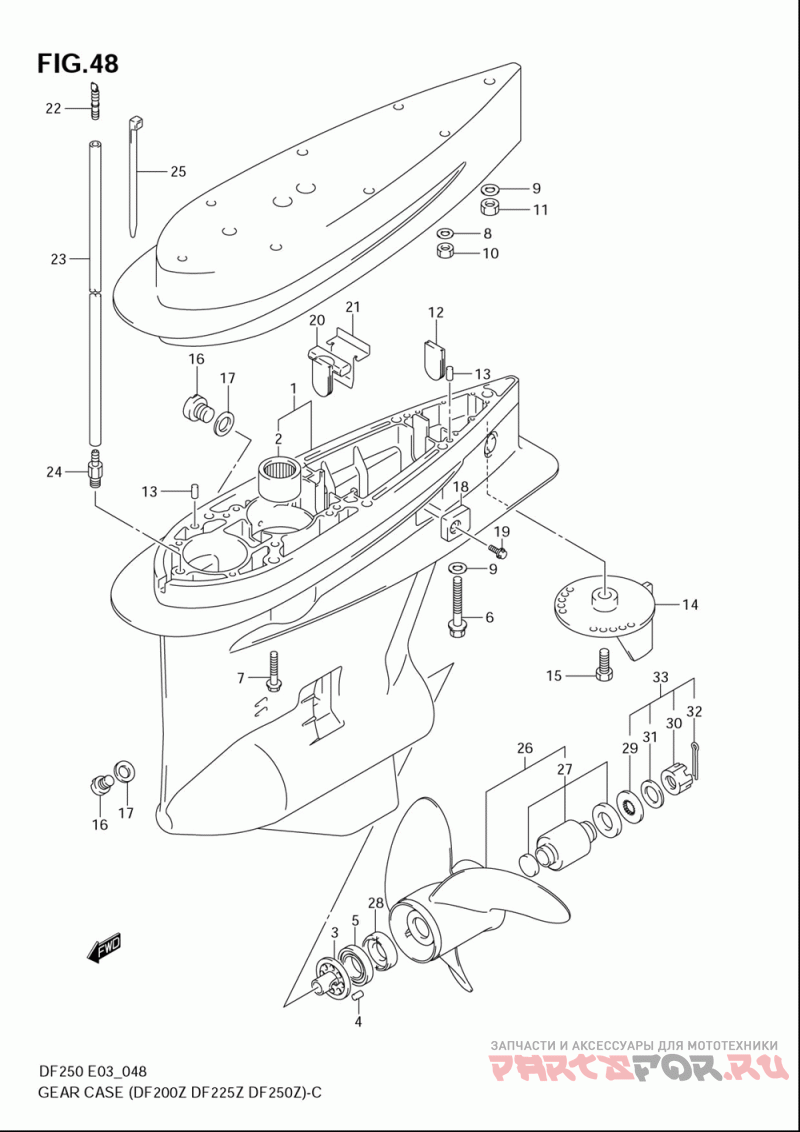

Gear case (df200z

Suzuki Marine DF200/DF225/DF250

Suzuki Marine
#oem кодцена
1-1
55110-93J30-0EP
Case Comp, Gear ()
2-1
09263-32016
Brg, Pinion, 32x4 ()
2-2
09263-32017
.bearing, Pinion (df200z:510023~df225z:510008~df250z:510070~)
3
56145-93J00
Housing, Shift C ()
4
04221-08129
.pin, Shift Cam Housing ()
5
09265-50002
.bearing, Fwd Thrust ()
6
09100-12052
Bolt L:70(sus) (type:x)
7
09116-10150
Bolt, 10x55 (type:x)
8
09160-10141
Washer (10.5x19x2) (type:xx<-09160-10082)
9
09160-12066
.washer (12.5x22x2.5) ()
10
29141-93J20
Nut (type:xx<-09140-10031)
11
09159-12014
Nut (type:xx)
12
17566-87D11
Grommet ()
13
09202-08006
Pin ()
14
55125-98J00-0EP
Tab, Trim ()
15
09116-08137
Bolt, 8x22 (<-09116-08121)
16-1
55128-93J00
Plug, Drain (df200z:510023~df225z:510008~df250z:510070~)
17-1
09168-10034
Gasket, Drain Pl (df200z:510023~df225z:510008~df250z:510070~)
18
55320-95311
Zinc Set, Protec ()
19
09116-06094
Bolt, 6x15 ()
20
55332-87D11
Rubber, Exhaust ()
21
55333-87D10
Plate, Exhaust S ()
22
55127-87D00
Union, Speedomet ()
23-1
09355-40805-00B
Hose (type:xl:2000->1600l:2000->1700 Model:05~08type:xxl:2000->1700)
24
09362-09008
Nipple ()
25
09407-14407
.clamp, Harness (l:140) ()
26-1
99105-0080L-185
Sspropcrv63x16x (not For Us Market)
26-2
99105-0080L-20P
Sspropcrv63x16x (not For Us Market)
26-3
99105-0080L-215
Sspropcrv63x16x (not For Us Market)
26-4
99105-0080L-23P
Sspropcrv63x16x (not For Us Market)
26-5
99105-0080L-17P
Sspropcrdfv63x1 (not For Us Market)
26-6
99105-0080L-245
Sspropcrv63x16x (not For Us Market)
27
58105-93J00
Bush Set, Propel (opt)
28-1
57632-93J10
Stopper, Propell ()
29
57633-87D30
Spacer, Nut(t:6. ()
30
09141-18005
Гайка
31
09160-18028
Washer (18.5x31x1.0) ()
32
09204-03003
Cotter Pin (l:25) ()
33
57630-92E00
Prop Hdwr V-6 M (opt)
34
25700-93J00
Lu Sealkit Df V (opt Not Shown)
