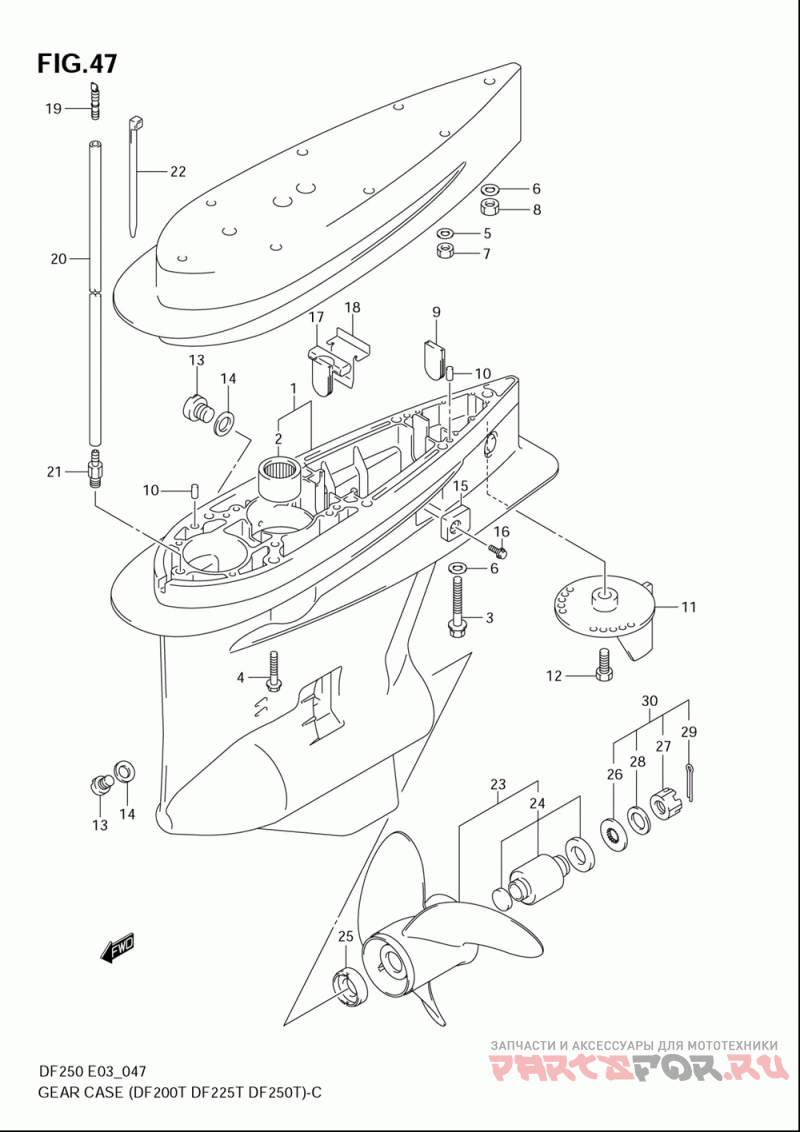

Gear case (df200t

Suzuki Marine DF200/DF225/DF250

Suzuki Marine
#oem кодцена
1-1
55110-93J20-0EP
Case Comp, Gear ()
2-1
09263-32016
Brg, Pinion, 32x4 ()
2-2
09263-32017
.bearing, Pinion (df200t:510124~df225t:510043~df250t:510308~)
3
09100-12052
Bolt L:70(sus) (type:l, X)
4
09116-10150
Bolt, 10x55 (type:l, X)
5
09160-10141
Washer (10.5x19x2) (type:xx<-09160-10082)
6
09160-12066
.washer (12.5x22x2.5) ()
7
29141-93J20
Nut (type:xx<-09140-10031)
8
09159-12014
Nut (type:xx)
9
17566-87D11
Grommet ()
10
09202-08006
Pin ()
11
55125-98J00-0EP
Tab, Trim ()
12
09116-08137
Bolt, 8x22 (<-09116-08121)
13-1
55128-93J00
Plug, Drain (df200t:510124~df225t:510043~df250t:510308~)
14-1
09168-10034
Gasket, Drain Pl (df200t:510124~df225t:510043~df250t:510308~)
15
55320-95311
Zinc Set, Protec ()
16
09116-06094
Bolt, 6x15 ()
17
55332-87D11
Rubber, Exhaust ()
18
55333-87D10
Plate, Exhaust S ()
19
55127-87D00
Union, Speedomet ()
20-1
09355-40805-00B
Hose (type:l, Xl:2000->1600l:2000->1700 Model:05~08type:xxl:2000->1700)
21
09362-09008
Nipple ()
22
09407-14407
.clamp, Harness (l:140) ()
23-1
99105-00800-17P
Ssprop Dfv63x16 (not For Us Market)
23-2
99105-00800-185
Ssprop Dfv63x16 (not For Us Market)
23-3
99105-00800-20P
Ssprop Dfv63x16 (not For Us Market)
23-4
99105-00800-215
Ssprop Dfv63x16 (not For Us Market)
23-5
99105-00800-23P
Ssprop Dfv63x16 (not For Us Market)
23-6
99105-00800-245
Ssprop Dfv63x16 (not For Us Market)
24
58105-93J00
Bush Set, Propel (opt)
25-1
57632-93J10
Stopper, Propell ()
26
57633-87D30
Spacer, Nut(t:6. ()
27
09141-18005
Гайка
28
09160-18028
Washer (18.5x31x1.0) ()
29
09204-03003
Cotter Pin (l:25) ()
30
57630-92E00
Prop Hdwr V-6 M (opt)
31
25700-93J00
Lu Sealkit Df V (opt Not Shown)
