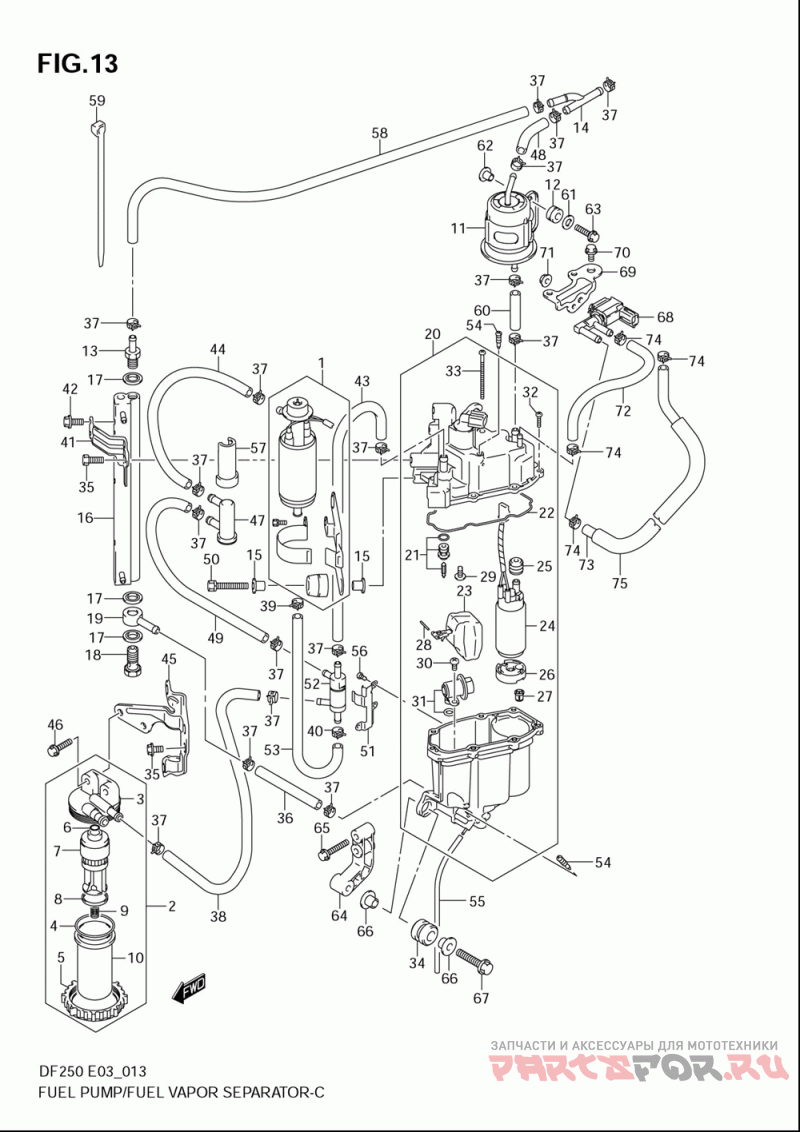

Fuel pump / fuel vapor separator для лодочных моторов Suzuki Marine DF200/DF225/DF250 (2008)

Fuel pump / fuel vapor separator

Suzuki Marine DF200/DF225/DF250

oem код

название

цена

Pump Assy, Fuel ()

Filter, Fuel(l) ()

Cap, Fuel Filter ()

O Ring, Fuel Fil ()

Nut, Fuel Filter ()

O Ring, Fuel Fil ()

Filter, Fuel ()

Float, Fuel Filt ()

Spring, Fuel Fil ()

Cup, Fuel Filter ()

Filter Comp, Fue ()

Cushion ()

Union, Fuel Hose ()

Union, Three Way ()

Шайба

Cooler Comp, Fue ()

Gasket ()

Union ()

Union, Fuel Filt ()

20-1

15600-93J01

Separator Assy, ()

20-3

15600-98J00

Separator Assy, (df250s)

13370-93J00

Valve Assy, Need ()

15626-93J00

Gasket, Separato ()

15650-93J00

Float Assy ()

24-1

15200-93J01

Pump Assy, Fuel ()

24-2

15200-98J00

Pump Assy, Fuel( (df250s)

Bush, Fuel Pump ()

Filter, Fuel Pum ()

Filter ()

Pin ()

Screw ()

.screw, Regulator ()

Regulator, Fuel ()

Screw(l:15) ()

Screw ()

Cushion, Fuel Va ()

Bolt, Cooler Bra ()

Hose (separator To Filter) (l:600->50)

09401-11425

Clip ()

38-1

15636-93J10

Hose, Fuel(l) ()

38-2

15636-98J10

Hose, Fuel (l) (df250s)

Clip, Fuel Hose ()

Clip, Fuel Hose ()

Bracket, Fuel Co ()

Bolt, Fuel Cooler ()

Hose, Fuel(h) ()

Hose, Fuel(h) ()

45-1

15673-93J00

Bracket, Fuel Fi ()

45-2

15673-98J00

Bracket, Fuel Fi (df250s)

..bolt ()

Filter, Fuel(l) ()

Hose, Fuel(h) ()

Болт

Bracket, Check V ()

Valve, Check ()

Hose, Fuel(l) ()

Screw, Drain ()

Hose ()

Screw ()

Cover, Fuel Filt ()

Hose, Fuel(h) ()

Clamp, Fuel Filt ()

Washer (6.5x18x1.6) ()

Болт

Bracket, Vapor S ()

Болт

Washer, Fuel Vapor Separator ()

01550-08407

Болт

68-1

18117-52G00

Valve Assy, Duty ()

68-2

18117-52G10

Valve, Canister (df200t:880983~df225t:880731~df250t:881405~df200z:880174~df225z:880185~df250z:880492~)

Bracket, Purge V ()

Болт

Гайка

Hose (l:600->220l:600->550)

09401-08412

Clip ()

18498-87JC0

Protector(l:450 ()
