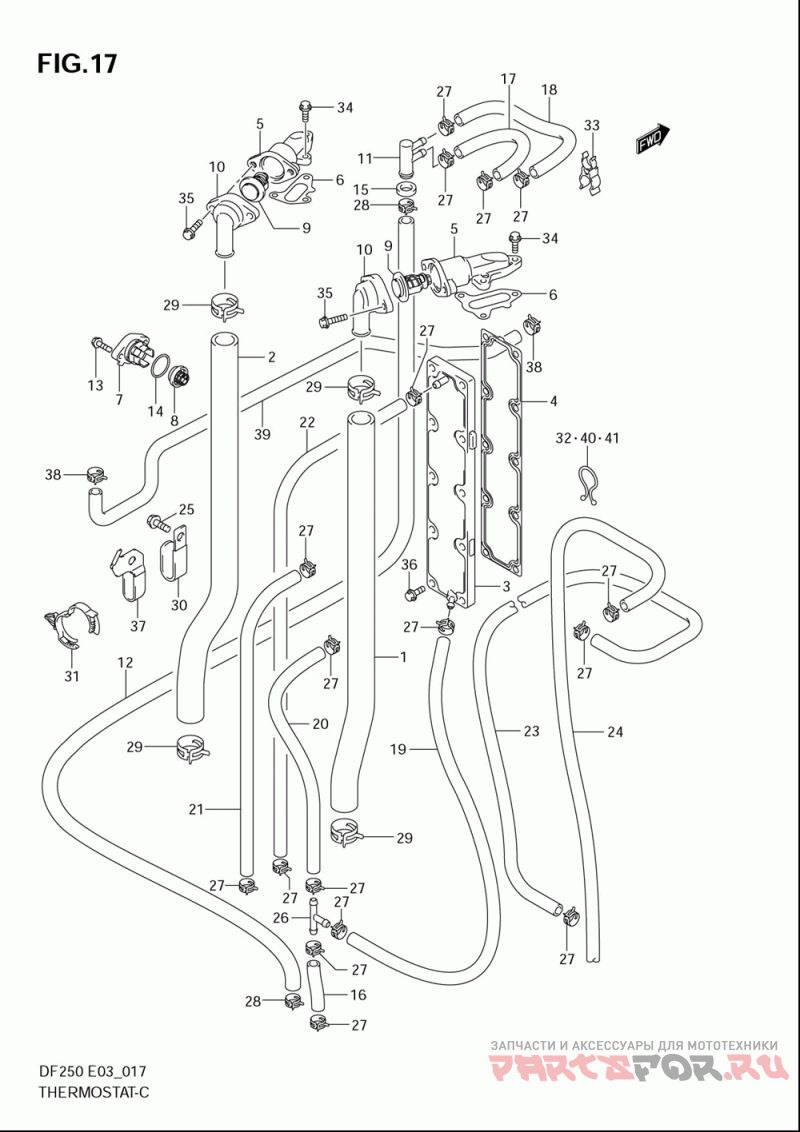

Термостат

Suzuki Marine DF200/DF225/DF250

Suzuki Marine
#oem кодцена
1
11196-93J00
Hose, Water Retu ()
2
11197-93J00
Hose, Water Retu ()
3
11270-93J00
Plate Comp, Cyl ()
4
11272-93J00
Gasket, Cylinder ()
5
17581-93J00
Pipe, Water Outl ()
6
17582-93J00
Gasket, Wtr Outl ()
7
17611-90J00-0EP
Cover, Wtr Press ()
8
17660-99E01
Valve, Wtr Press ()
9-1
17670-90J00
Thermostat, Wate ()
9-2
17670-90J10
Thermostat (opt)
10
17681-93J00
Cover, Thermosta ()
11
17711-90J00
3way, Water Hose ()
12
17712-93J00
Hose, Water(3way ()
13
09116-06121
.bolt (6x25) ()
14
09280-26006
O Ring (d:3.1, Id:26.4) ()
15
09320-12014
Cushion ()
16
09352-50903-600
.hose (l:600->60l:600->120l:600->190l:600->300l:600->330)
23
09352-50903-00B
Hose, Water (cooler To Holder (l:2000->850l:2000->950l:2000->1010model:08)
25
01550-08127
Болт
26
09367-06002
3 Way, Water Hose ()
27
09401-08413
Clip ()
28
17838-90J00
Clip ()
29
09401-25406
Clip ()
30
09403-17303
Clamp (df200t:~780052df200z:~780004df225t:~780021df225z:~780005df250t:~780095df250z:~780029)
31
09403-25304
Clamp ()
32
09408-00008
Clamp ()
33
09408-00189
Clamp (<-09408-00056)
34
01550-06207
Болт
35-1
01550-06257
..bolt ()
37
17713-98J00
Holder, Water Ho (df200t:780053~df200z:780005~df225t:780022~df225z:780006~df250t:780096~df250z:780030~df250s)
38
09401-15414
Clip (model:08)
39
17915-98J01
Hose, Water Flus (model:08)
40
09408-00024
Clip (model:08)
41
09408-00021
(model:08)
