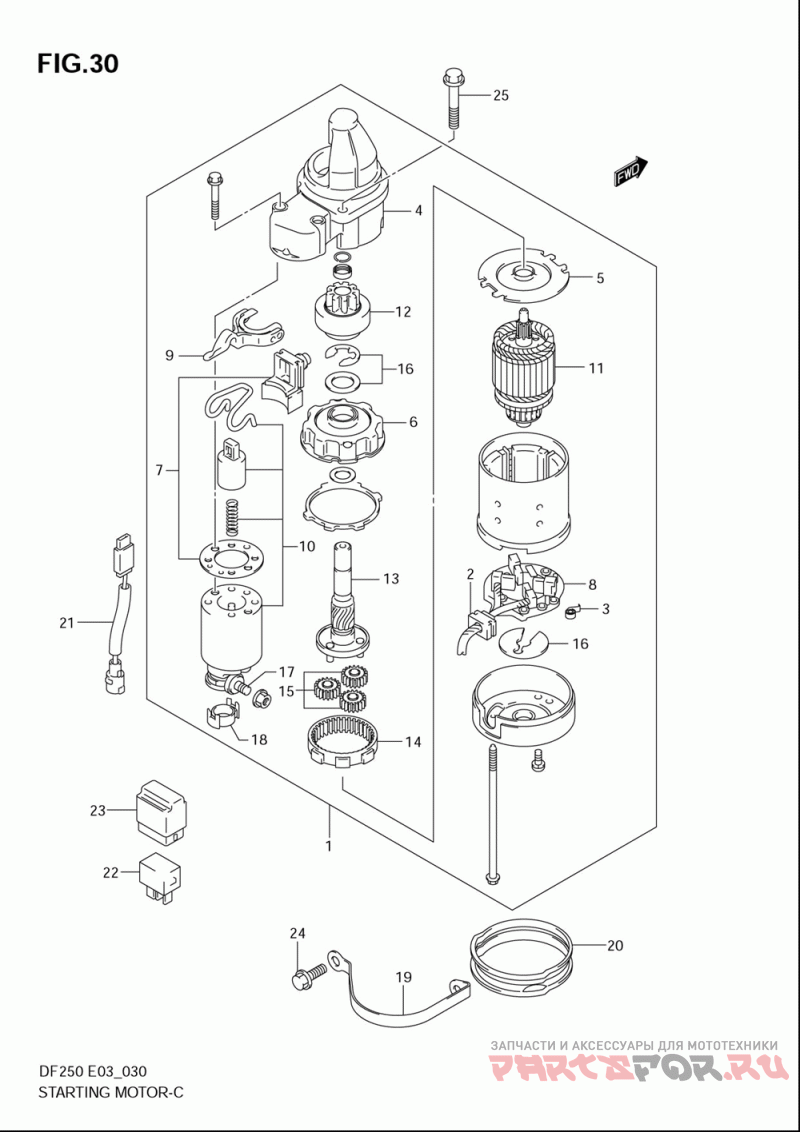

Стартер электрический для лодочных моторов Suzuki Marine DF200/DF225/DF250 (2008)

Стартер электрический

Suzuki Marine DF200/DF225/DF250

oem код

название

цена

31100-96J01

Motor Assy, Star (<-31100-93j00)

31131-90J00

Brush Set, Plus ()

31135-90J00

Spring ()

4-1

31151-93J00

Case, Gear ()

4-2

31151-94J00

Case, Gear (df200t:780655~df225t:780576~df250t:780920~df200z:780109~df225z:780122~df250z:780344~df250s)

31152-90J00

Plate, Center ()

31153-90J00

Bracket, Gear ()

7-1

31171-93J00

Cover Kit, Dust ()

7-2

31171-96J00

Cover Kit, Dust (df200t:780655~df225t:780576~df250t:780920~df200z:780109~df225z:780122~df250z:780344~df250s)

31173-90J01

Holder, Brush ()

9-1

31191-93J00

Lever, Shift ()

9-2

31191-96J00

Lever, Shift (df200t:780655~df225t:780576~df250t:780920~df200z:780109~df225z:780122~df250z:780344~df250s)

10-1

31220-90J00

Switch, Magnet ()

10-2

31220-94J00

Switch, Magnet (df200t:780655~df225t:780576~df250t:780920~df200z:780109~df225z:780122~df250z:780344~df250s)

Armature ()

Pinion ()

Shaft, Pinion ()

Internal Gear ()

Gear, Planetary ()

Washer Set, Stop ()

Terminal ()

Cap, Terminal ()

Band, Starter Mo ()

20-1

31918-90J00

Damper, Lower ()

20-2

31918-90J10

Damper, Lower (model:06~08)

Lead Wire, Start ()

Relay Assy ()

Holder, Relay ()

..bolt, Lower ()

Болт
