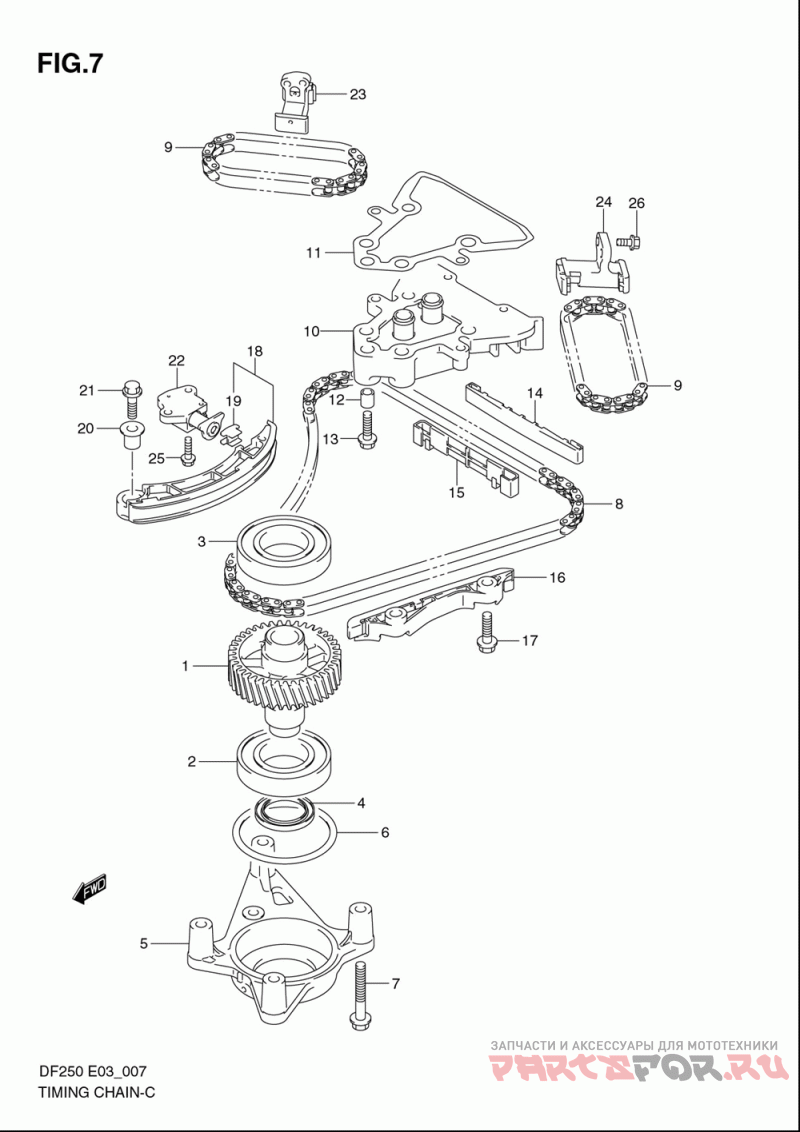

Цепь ГРМ

Suzuki Marine DF200/DF225/DF250

Suzuki Marine
#oem кодцена
1-1
12730-93J01
Деталь Gear Comp, Drive ()
1-2
12730-98J00
Деталь Gear, Driven (df250s)
2-1
09262-40018
Деталь Bearing, Lower ()
3-1
08110-62080
Деталь Bearing, Upper ()
3-2
09262-40017
Деталь Bearing, Upper (df250s)
4
09283-32044
Деталь Seal, Oil ()
5
12734-93J00
Деталь Holder, Driven G ()
6
09280-70012
Деталь O-ring, Holder(i ()
7
01550-0855A
Деталь Bolt, Holder ()
8
12761-93J00
Деталь Chain Comp, Timi ()
9
12762-93J00
Деталь Chain Comp, Timi ()
10
12770-93J00
Деталь Base Comp, T/c G ()
11
12778-93J00
Деталь Gasket, Timing C ()
12
04211-13149
Деталь Pin ()
13
01550-0830A
Деталь Bolt, Mount Oil Seal Cov ()
14
12771-93J00
Деталь Shoe, Timing Cha ()
15
12775-93J00
Деталь Shoe, Timing Cha ()
16
12772-93J00
Деталь Guide, Timing Ch ()
18
12810-93J00
Деталь Tensioner Assy, ()
19
12813-73G00
Деталь Rod, Timing Chai ()
20
12812-90J00
Деталь Spacer, Timing C ()
22-1
12831-85FA7
Деталь Adjuster Assy, T ()
22-2
12831-93J01
Деталь Adjuster Assy, T (df200t:421625~df200z:421114~df225t:421416~df225z:421100~df250t:422099~df250z:421313~df250s)
23
12832-93J00
Деталь Tensioner Assy, ()
24
12833-93J00
Деталь Tensioner Assy, ()
25
01550-0620A
Болт
