Блок цилиндров для лодочных моторов Suzuki Marine DF200/DF225/DF250 (2008)

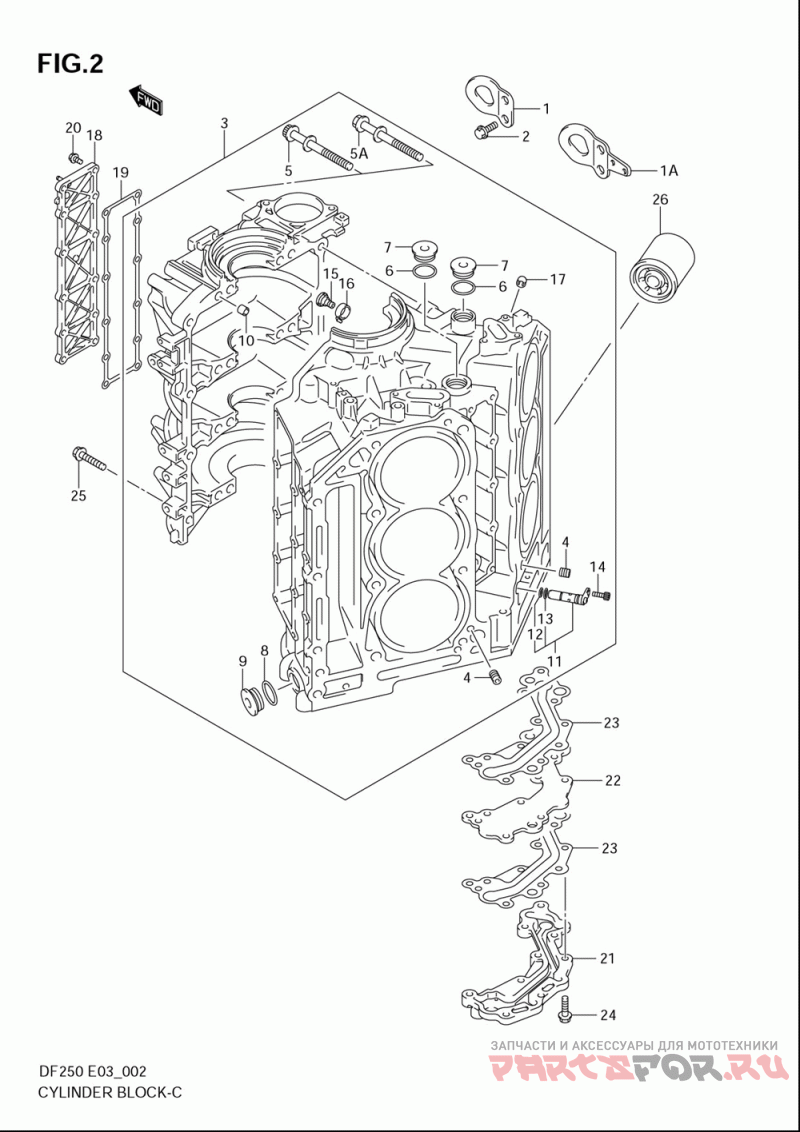

Блок цилиндров

Suzuki Marine DF200/DF225/DF250

oem код

название

цена

11293-93J00

Hook, Engine Fro ()

11293-98J00

Hook, Engine Fro (df200t:880554~df200z:880122~df225t:880434~df225z:880155~df250t:881063~df250z:880384~)

01550-08207

..bolt, Lower ()

3-1

11301-93J02

Block Set, Cylin ()

11112-93J00

Plug, Oil Ventur ()

11117-93J00

Bolt Comp, Crank (->11117-93j01)

11117-93J01

Bolt Comp, Crank (df200t:421625~df200z:421114~df225t:421416~df225z:421100~df250t:422099~df250z:421313~)

11217-85FA0

Gasket ()

11116-96J00

Plug ()

09160-18031

.gasket (18.5x28x2.6) ()

.plug ()

.pin ()

Valve, Piston Je ()

.o-ring, Collector ()

09280-10016

.o Ring ()

07130-0616A

.bolt, Piston Jet Valve ()

Bolt, Piston Jet ()

Jet, Piston Cool ()

Plug, Oil Galler ()

Cover, Crankcase ()

Gasket, Crankcas ()

Болт

Cover Comp, Oil ()

Plate, Oil Galle ()

Gasket, Oil Gall ()

Болт

Болт

26-1

16510-96J00

Filter Assy, Oil ()
