Карбюратор для лодочных моторов Suzuki Marine DF2.5 (2008)

Москва и регионы России

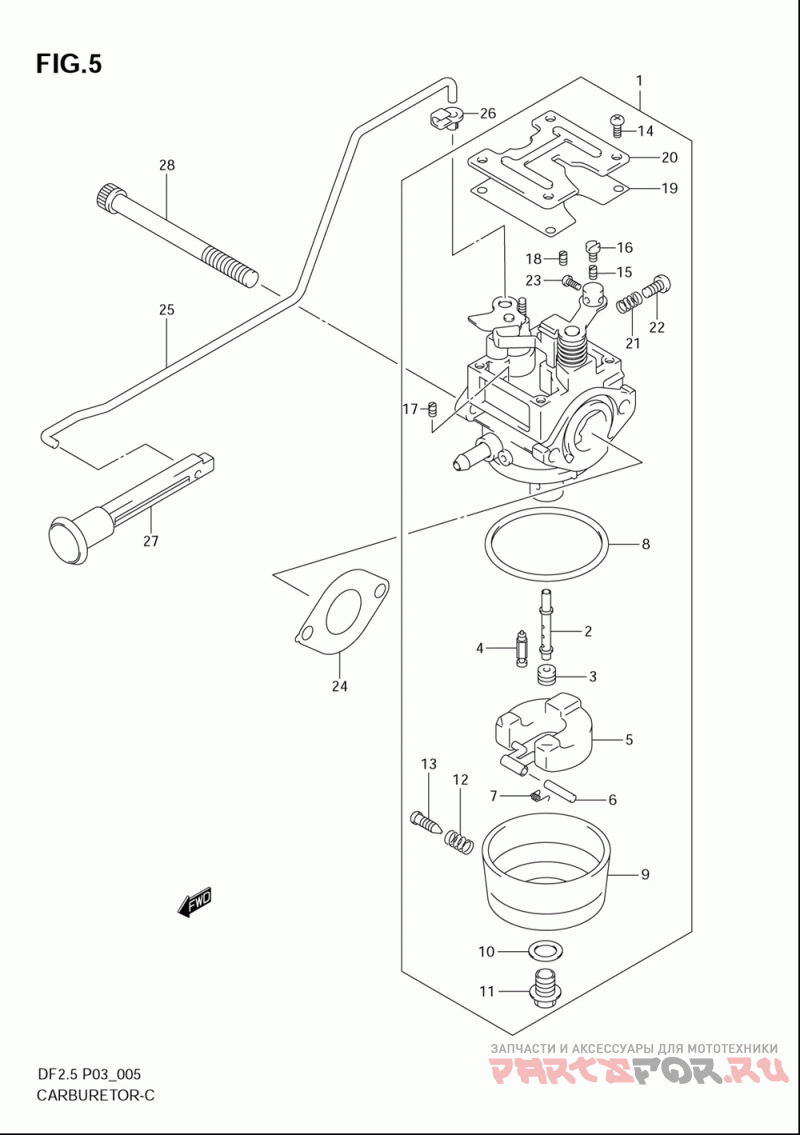

Карбюратор

Suzuki Marine DF2.5

Карбюратор

#

oem код

название

цена

1-1

Carburetor Assy ()

Carburetor Assy ()

2-1

Nozzle, Main ()

Nozzle, Main ()

2-2

Nozzle, Main (model:07, 08)

Nozzle, Main (model:07, 08)

3-1

Jet, Main (68) (opt)

Jet, Main (68) (opt)

3-2

.jet, Main (70) ()

.jet, Main (70) ()

3-3

Jet, Main (72) (opt)

Jet, Main (72) (opt)

3-4

Jet Main(62) (model:07, 08opt)

Jet Main(62) (model:07, 08opt)

3-5

Jet Main(64) (model:07, 08)

Jet Main(64) (model:07, 08)

3-6

Jet, Main (66) (model:07, 08opt)

Jet, Main (66) (model:07, 08opt)

4

Valve, Needle ()

Valve, Needle ()

5

Float ()

Float ()

6

Pin, Float ()

Pin, Float ()

7

Spring ()

Spring ()

8

Gasket ()

Gasket ()

9

Chamber, Float ()

Chamber, Float ()

10

Gasket ()

Gasket ()

11

Screw ()

Screw ()

12

Spring ()

Spring ()

13

Screw ()

Screw ()

14

Screw ()

Screw ()

15-1

.jet, Pilot (30) (opt)

.jet, Pilot (30) (opt)

15-2

.jet, Pilot (32) ()

.jet, Pilot (32) ()

15-3

.jet, Pilot (34) (opt)

.jet, Pilot (34) (opt)

16

Screw ()

Screw ()

17

.jet, Air (170) ()

.jet, Air (170) ()

18

.jet, Pilot Air (145) ()

.jet, Pilot Air (145) ()

19

Gasket ()

Gasket ()

20

Plate ()

Plate ()

21

Spring ()

Spring ()

22

Screw ()

Screw ()

23

Screw ()

Screw ()

24

Gasket, Carburet ()

Gasket, Carburet ()

25

Rod, Choke ()

Rod, Choke ()

26

Connector, Choke ()

Connector, Choke ()

27

Knob, Choke ()

Knob, Choke ()

28

Болт

Болт
