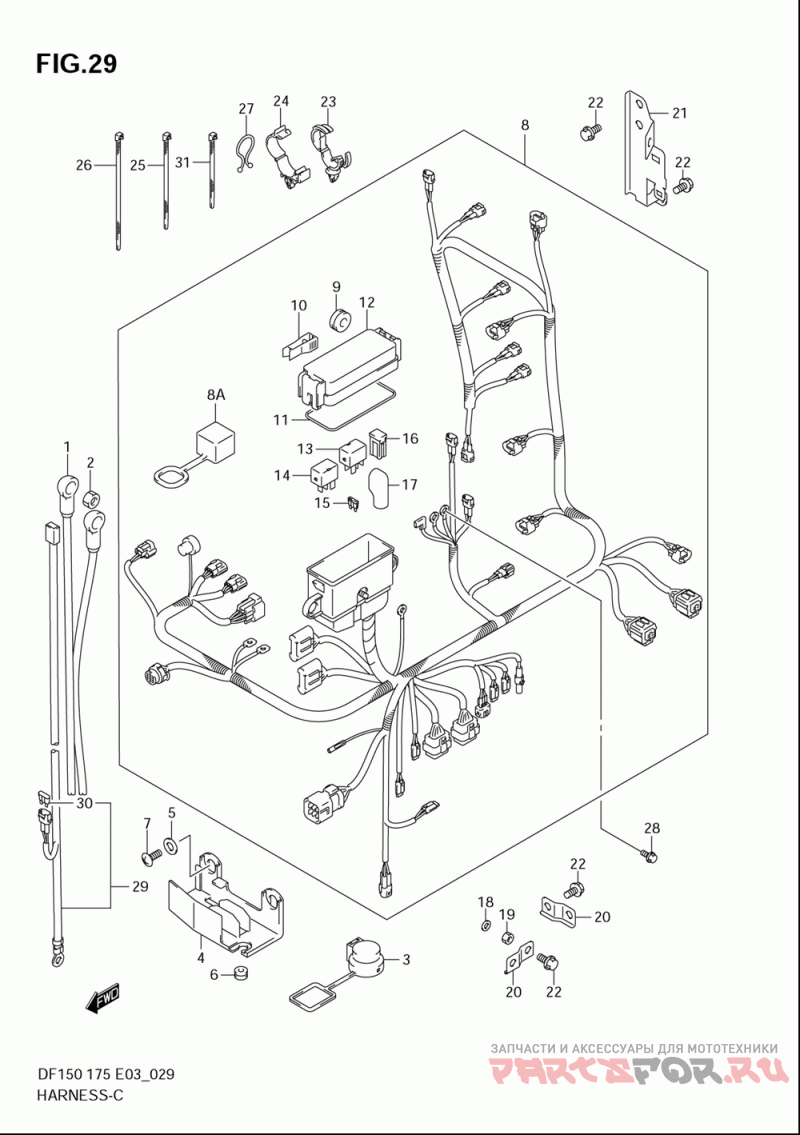

Жгут проводов для лодочных моторов Suzuki Marine DF150/DF175 (2008)

Москва и регионы России

Жгут проводов

Suzuki Marine DF150/DF175

Жгут проводов

#

oem код

название

цена

1

Cable Assy, Star ()

Cable Assy, Star ()

2

..nut ()

..nut ()

3

Cap, Service Con ()

Cap, Service Con ()

4

Holder, Cable ()

Holder, Cable ()

5

Washer, Ca Holder (6.3x16x1) ()

Washer, Ca Holder (6.3x16x1) ()

6

Bush ()

Bush ()

7

Винт

Винт

8-1

Harness Assy, Wi (df150)

Harness Assy, Wi (df150)

8-2

Harness Assy, Wi (df175)

Harness Assy, Wi (df175)

8-3

Harness Assy, Wi (df150 Model:08)

Harness Assy, Wi (df150 Model:08)

8-4

Harness Assy, Wi (df175 Model:08)

Harness Assy, Wi (df175 Model:08)

8A

Cap, Service Con (model:08)

Cap, Service Con (model:08)

9

.cushion, 8.5x20x8 ()

.cushion, 8.5x20x8 ()

10

Puller, Fuse ()

Puller, Fuse ()

11

O-ring, Upper Co ()

O-ring, Upper Co ()

12

Cover, Fuse Case ()

Cover, Fuse Case ()

13

Relay Assy ()

Relay Assy ()

15-1

.fuse (10a) ()

.fuse (10a) ()

15-2

.fuse (30a) ()

.fuse (30a) ()

16-1

Fuse, 30a ()

Fuse, 30a ()

16-2

Fuse, 60amp ()

Fuse, 60amp ()

17

Cap, Terminal ()

Cap, Terminal ()

18

.nut ()

.nut ()

19

.lock Washer ()

.lock Washer ()

20

Bracket, Harness ()

Bracket, Harness ()

21

Bracket, Harness ()

Bracket, Harness ()

22

Болт

Болт

23

Clamp, Harness ()

Clamp, Harness ()

24

Clip ()

Clip ()

25

.clamp, Battery Cable ()

.clamp, Battery Cable ()

26

.clamp, Harness (l:140) ()

.clamp, Harness (l:140) ()

27-1

Clamp ()

Clamp ()

27-2

Clip ()

Clip ()

29-1

Lead, Battery (l:3700)

Lead, Battery (l:3700)

29-2

15a-batt-ecm-le (opt L:6500)

15a-batt-ecm-le (opt L:6500)

30

.fuse (15a) ()

.fuse (15a) ()

31

.clamp ()

.clamp ()
