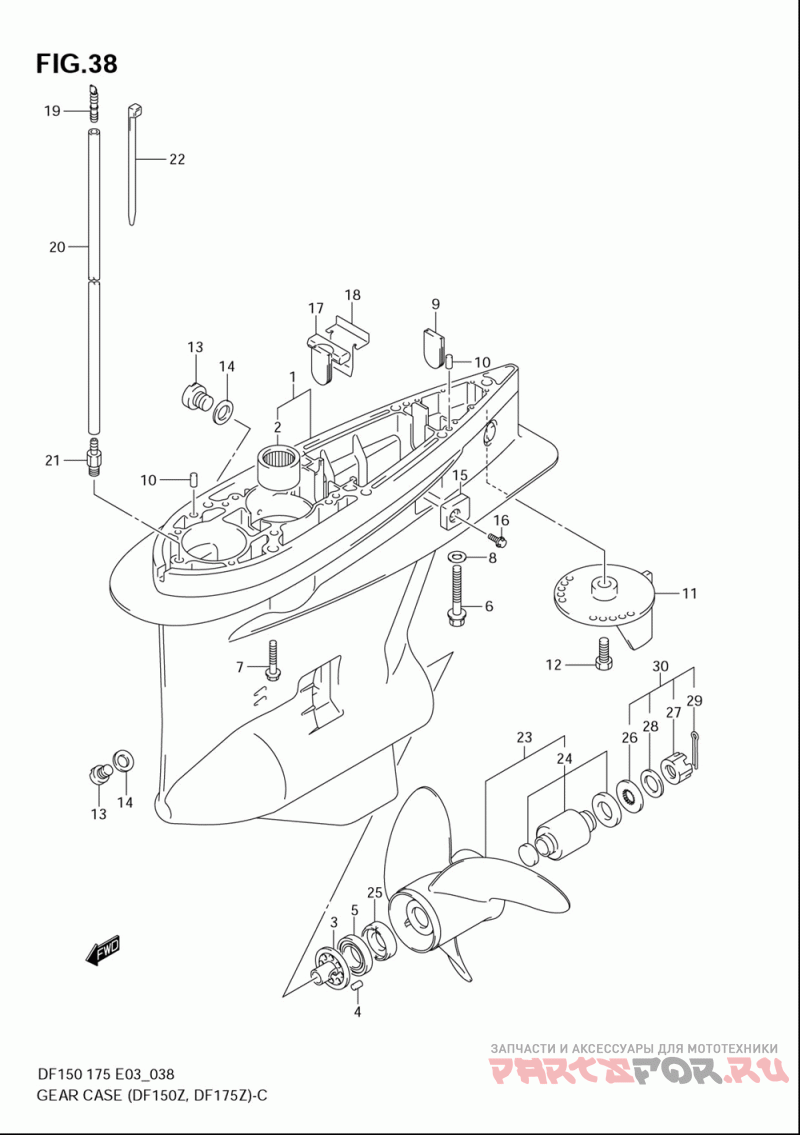

Картер (DF150Z, DF175Z)

Suzuki Marine DF150/DF175

Suzuki Marine
#oem кодцена
1
55110-93J30-0EP
Case Comp, Gear ()
2
09263-32017
.bearing, Pinion ()
3
56145-93J00
Housing, Shift C ()
4
04221-08129
.pin, Shift Cam Housing ()
5
09265-50002
.bearing, Fwd Thrust ()
6
09100-12052
Bolt L:70(sus) ()
7
09116-10150
Bolt, 10x55 ()
8
09160-12066
.washer (12.5x22x2.5) ()
9
17566-87D11
Grommet ()
10
09202-08006
Pin ()
11
55125-98J00-0EP
Tab, Trim ()
12
09116-08137
Bolt, 8x22 (<-09116-08121)
13
55128-93J00
Plug, Drain ()
14
09168-10034
Gasket, Drain Pl ()
15
55320-95311
Zinc Set, Protec ()
16
09116-06094
Bolt, 6x15 ()
17
55332-87D11
Rubber, Exhaust ()
18
55333-87D10
Plate, Exhaust S ()
19
55127-87D00
Union, Speedomet ()
20
09355-40805-00B
Hose (l:2000->1700)
21
09362-09008
Nipple ()
22
09407-10404
.clamp ()
23-1
99105-0080L-185
Sspropcrv63x16x (opt:not For Us Marketcounter Rotation)
23-2
99105-0080L-20P
Sspropcrv63x16x (opt:not For Us Marketcounter Rotation)
23-3
99105-0080L-215
Sspropcrv63x16x (opt:not For Us Marketcounter Rotation)
23-4
99105-0080L-23P
Sspropcrv63x16x (opt:not For Us Marketcounter Rotation)
23-5
99105-0080L-17P
Sspropcrdfv63x1 (opt:not For Us Marketcounter Rotation)
23-6
99105-0080L-245
Sspropcrv63x16x (opt:not For Us Marketcounter Rotation)
24
58105-93J00
Bush Set, Propel ()
25
57632-93J10
Stopper, Propell ()
26
57633-87D30
Spacer, Nut(t:6. ()
27
09141-18005
Гайка
28
09160-18028
Washer (18.5x31x1.0) ()
29
09204-03003
Cotter Pin (l:25) ()
30
57630-92E00
Prop Hdwr V-6 M (opt)
31
25700-93J00
Lu Sealkit Df V (opt Not Shown)
