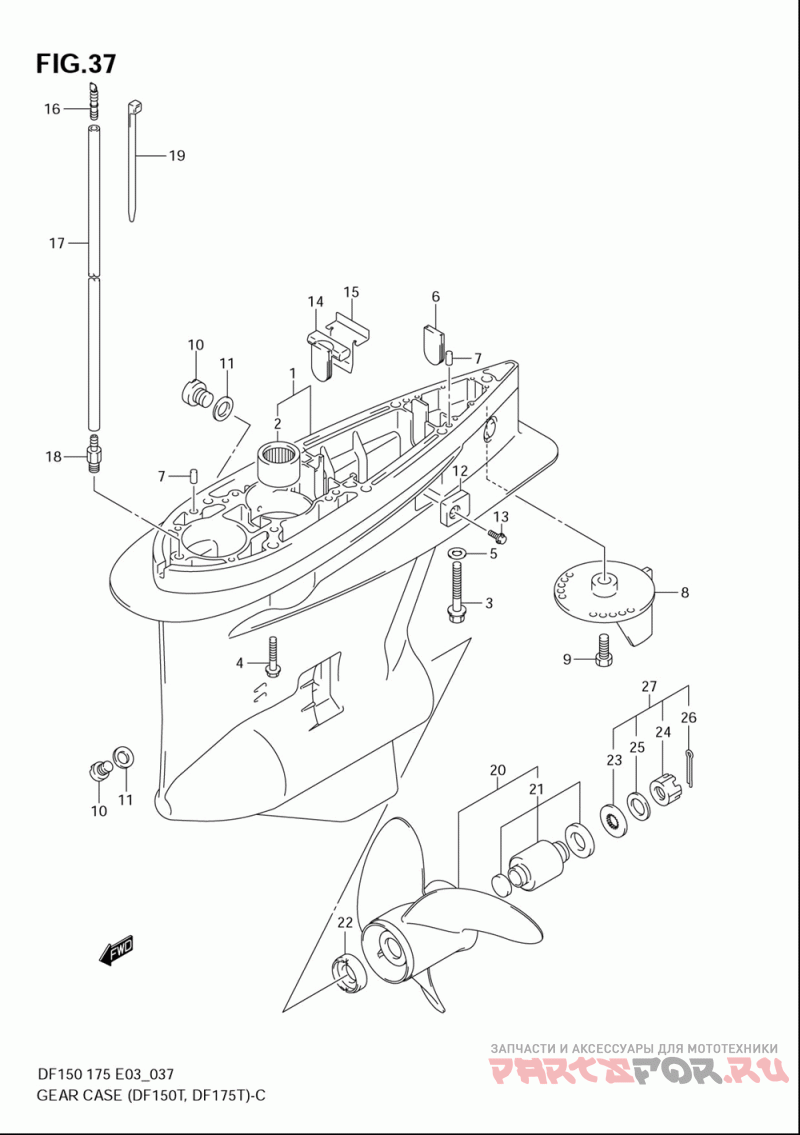

Картер (DF150T, DF175T)

Suzuki Marine DF150/DF175

Suzuki Marine
#oem кодцена
1
55110-93J20-0EP
Case Comp, Gear ()
2
09263-32017
.bearing, Pinion ()
3
09100-12052
Bolt L:70(sus) ()
4
09116-10150
Bolt, 10x55 ()
5
09160-12066
.washer (12.5x22x2.5) ()
6
17566-87D11
Grommet ()
7
09202-08006
Pin ()
8
55125-98J00-0EP
Tab, Trim ()
9
09116-08137
Bolt, 8x22 (<-09116-08121)
10
55128-93J00
Plug, Drain ()
11
09168-10034
Gasket, Drain Pl ()
12
55320-95311
Zinc Set, Protec ()
13
09116-06094
Bolt, 6x15 ()
14
55332-87D11
Rubber, Exhaust ()
15
55333-87D10
Plate, Exhaust S ()
16
55127-87D00
Union, Speedomet ()
17
09355-40805-00B
Hose (l:2000->1700)
18
09362-09008
Nipple ()
19
09407-10404
.clamp ()
20-1
99105-00800-17P
Ssprop Dfv63x16 (not For Us Market)
20-2
99105-00800-185
Ssprop Dfv63x16 (not For Us Market)
20-3
99105-00800-20P
Ssprop Dfv63x16 (not For Us Market)
20-4
99105-00800-215
Ssprop Dfv63x16 (not For Us Market)
20-5
99105-00800-23P
Ssprop Dfv63x16 (not For Us Market)
20-6
99105-00800-245
Ssprop Dfv63x16 (not For Us Market)
21
58105-93J00
Bush Set, Propel ()
22
57632-93J10
Stopper, Propell ()
23
57633-87D30
Spacer, Nut(t:6. ()
24
09141-18005
Гайка
25
09160-18028
Washer (18.5x31x1.0) ()
26
09204-03003
Cotter Pin (l:25) ()
27
57630-92E00
Prop Hdwr V-6 M (opt)
28
25700-93J00
Lu Sealkit Df V (opt Not Shown)
