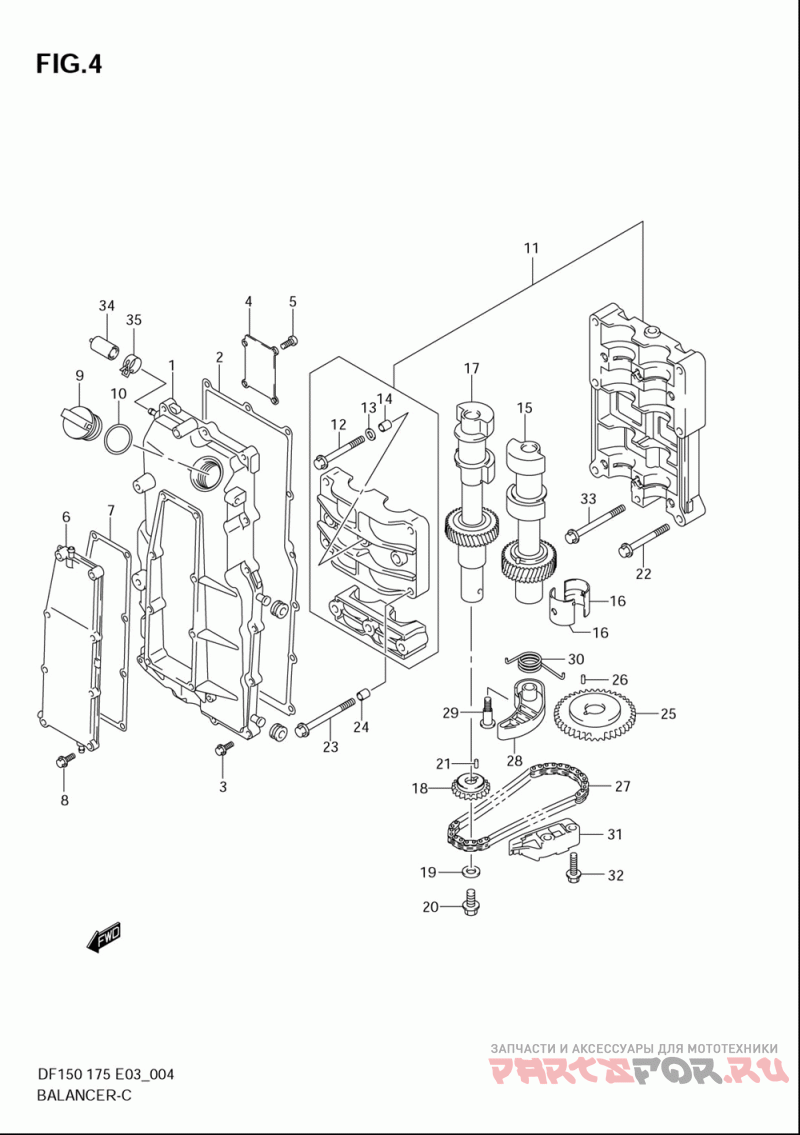

Балансирный вал для лодочных моторов Suzuki Marine DF150/DF175 (2008)

Балансирный вал

Suzuki Marine DF150/DF175

oem код

название

цена

1-1

11330-96J00

Cover Comp, Bala ()

1-2

11330-96J10

Cover, Balancer (df150t:782346~df175t:782633~df150z:780355~df175z:780481~)

11332-96J00

Gasket, Balancer ()

01550-06257

..bolt ()

11345-96J00

Plate, Balancer (df150t:~782345df175t:~782632df150z:~780354df175z:~780480)

02112-0612A

Screw (df150t:~782345df175t:~782632df150z:~780354df175z:~780480)

Cover Comp, Bala ()

Gasket, Bal Wtr ()

Cap, Oil Filler ()

O Ring (d:3.1, Id:26.4) ()

Housing Assy, Ba ()

Bolt, Balancer ()

Washer ()

.pin ()

Shaft Assy, Bala ()

Bearing ()

Balancer Comp ()

Sprocket, Bal Dr ()

Washer (10.5x22x2.3) ()

01550-1020A

Bolt, Bal Sprocket ()

04221-04089

Pin ()

09103-08414

Bolt, Bal Housing No.1 (8x53) ()

09103-08423

Bolt, Bal Housing No.3 (8x80) ()

Sprocket, Bal Dr ()

Pin, Camshaft Ti ()

Chain Comp, Bala ()

Tensioner, Balan ()

Bolt, Bal Chain ()

Spring, Bal Chai ()

Guide, Balancer ()

Болт

Bolt, Bal Housing No.2 (8x75) ()

09251-05006

Plug (df150t:780701~782345df175t:780641~782632df150z:780144~780354df175z:780119~780480)

09401-10411

Clip (df150t:780701~782345df175t:780641~782632df150z:780144~780354df175z:780119~780480)
