Трансмиссия (DF140T, DF140WT) для лодочных моторов Suzuki Marine DF140T 140Z (2008)

Москва и регионы России

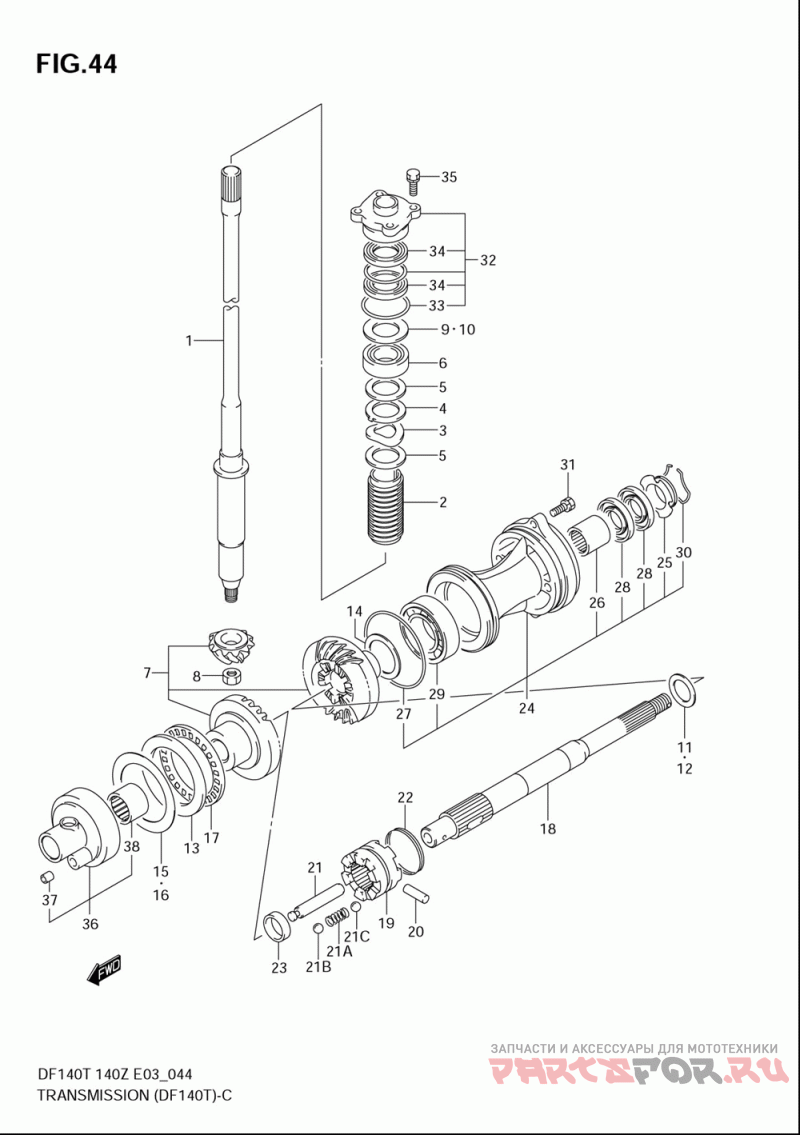

Трансмиссия (DF140T, DF140WT)

Suzuki Marine DF140T 140Z

Трансмиссия (DF140T, DF140WT)

#

oem код

название

цена

1-1

Shaft, Drive (l) ()

Shaft, Drive (l) ()

1-2

Shaft Comp, Driv (model:04~06)

Shaft Comp, Driv (model:04~06)

1-4

Shaft, Drive (ul ()

Shaft, Drive (ul ()

1-5

Shaft Comp, Driv (model:04~06)

Shaft Comp, Driv (model:04~06)

2

Collar ()

Collar ()

3

Washer, Wave (model:02,03)

Washer, Wave (model:02,03)

4

Washer (model:02, 03)

Washer (model:02, 03)

5

Washer (model:02, 03)

Washer (model:02, 03)

6

Bearing ()

Bearing ()

7-1

Pinion/gear Set ()

Pinion/gear Set ()

7-2

Pinion / Gear S (df140t:682149~)

Pinion / Gear S (df140t:682149~)

7-3

Pinion / Gear S (model:07~08)

Pinion / Gear S (model:07~08)

8-1

Гайка

Гайка

8-2

Nut (model:07~08)

Nut (model:07~08)

9

Shim Set, Drive ()

Shim Set, Drive ()

10-1

.shim (t:0.50) ()

.shim (t:0.50) ()

10-2

Shim ()

Shim ()

10-3

.shim (t:0.60) ()

.shim (t:0.60) ()

10-4

.shim (t:0.65) ()

.shim (t:0.65) ()

10-5

.shim (t:0.70) ()

.shim (t:0.70) ()

10-6

.shim (t:0.75) ()

.shim (t:0.75) ()

10-7

.shim (t:0.80) ()

.shim (t:0.80) ()

10-8

.shim (t:0.85) ()

.shim (t:0.85) ()

10-9

.shim (t:0.90) ()

.shim (t:0.90) ()

10-10

.shim (t:0.95) ()

.shim (t:0.95) ()

10-11

.shim (t:1.00) ()

.shim (t:1.00) ()

10-12

.shim (t:1.05) ()

.shim (t:1.05) ()

10-13

.shim (t:1.10) ()

.shim (t:1.10) ()

10-14

.shim (t:1.15) ()

.shim (t:1.15) ()

11

Shim Set, Revers ()

Shim Set, Revers ()

12-1

.washer (30x38x1.5) ()

.washer (30x38x1.5) ()

12-2

.washer (30x38x1.7) ()

.washer (30x38x1.7) ()

12-3

Washer (30x38x1.9) ()

Washer (30x38x1.9) ()

12-4

.washer (30x38x2.1) ()

.washer (30x38x2.1) ()

12-5

.washer (30x38x2.3) ()

.washer (30x38x2.3) ()

12-6

.washer (30x38x2.4) ()

.washer (30x38x2.4) ()

12-7

.washer (30x38x2.6) ()

.washer (30x38x2.6) ()

12-8

.washer (30x38x2.7) ()

.washer (30x38x2.7) ()

12-9

.washer (30x38x2.8) ()

.washer (30x38x2.8) ()

13

Washer (70x95x5.25) (fwd Gear)

Washer (70x95x5.25) (fwd Gear)

14-1

Shim (rev Gear)

Shim (rev Gear)

14-2

Shim (t:1.1) ()

Shim (t:1.1) ()

14-3

Shim ()

Shim ()

14-4

Shim ()

Shim ()

14-5

Shim ()

Shim ()

14-6

Shim ()

Shim ()

14-7

Shim ()

Shim ()

15

Shim Set, Forwar ()

Shim Set, Forwar ()

16-1

Shim ()

Shim ()

16-2

Shim ()

Shim ()

16-3

Shim ()

Shim ()

16-4

Shim ()

Shim ()

16-5

Shim ()

Shim ()

16-6

Shim, Forward Ge ()

Shim, Forward Ge ()

16-7

Shim, Forward Ge ()

Shim, Forward Ge ()

16-8

Shim, Forward Ge ()

Shim, Forward Ge ()

16-9

Shim, Forward Ge ()

Shim, Forward Ge ()

17

Rc 70x95x4 Brg (fwd Gear)

Rc 70x95x4 Brg (fwd Gear)

18-1

Shaft Comp, Prop ()

Shaft Comp, Prop ()

18-2

Shaft Comp, Prop (df140t:682149~)

Shaft Comp, Prop (df140t:682149~)

19-1

Shifter, Clutch ()

Shifter, Clutch ()

19-2

Shifter, Clutch (df140t:682149~)

Shifter, Clutch (df140t:682149~)

20

Pin ()

Pin ()

21-1

Pin, Connector ()

Pin, Connector ()

21-2

Pin, Connector (df140t:682149~)

Pin, Connector (df140t:682149~)

21A

Spring, Detent (df140t:682149~)

Spring, Detent (df140t:682149~)

21B

Ball, Detent No.1 (df140t:682149~)

Ball, Detent No.1 (df140t:682149~)

21C

Ball (df140t:682149~)

Ball (df140t:682149~)

22-1

Spring Dog ()

Spring Dog ()

22-2

Spring (model:03~08)

Spring (model:03~08)

23

Spacer, Clutch D ()

Spacer, Clutch D ()

24

56120-92J01-0EP

Housing, Prop Sh ()

Housing, Prop Sh ()

25

Washer, Oil Seal ()

Washer, Oil Seal ()

26

Needle Brng 30x ()

Needle Brng 30x ()

27

.o Ring (d:3.5, Id:95.0) ()

.o Ring (d:3.5, Id:95.0) ()

28

Seal, Oil ()

Seal, Oil ()

29

.bearing ()

.bearing ()

30

Set Ring (sus) ()

Set Ring (sus) ()

31

Bolt (8x30) ()

Bolt (8x30) ()

32

Hsg Comp, Drive ()

Hsg Comp, Drive ()

33

.o Ring (d:3.5, Id:45.7) ()

.o Ring (d:3.5, Id:45.7) ()

34

.oil Seal ()

.oil Seal ()

35

Bolt (8x25) ()

Bolt (8x25) ()

36

Housing, Fwd Gea ()

Housing, Fwd Gea ()

37-1

Pin (df140t:421378~)

Pin (df140t:421378~)

38

.bearing (50x62x25) ()

.bearing (50x62x25) ()
