Поворотный кронштейн для лодочных моторов Suzuki Marine DF140T 140Z (2008)

Москва и регионы России

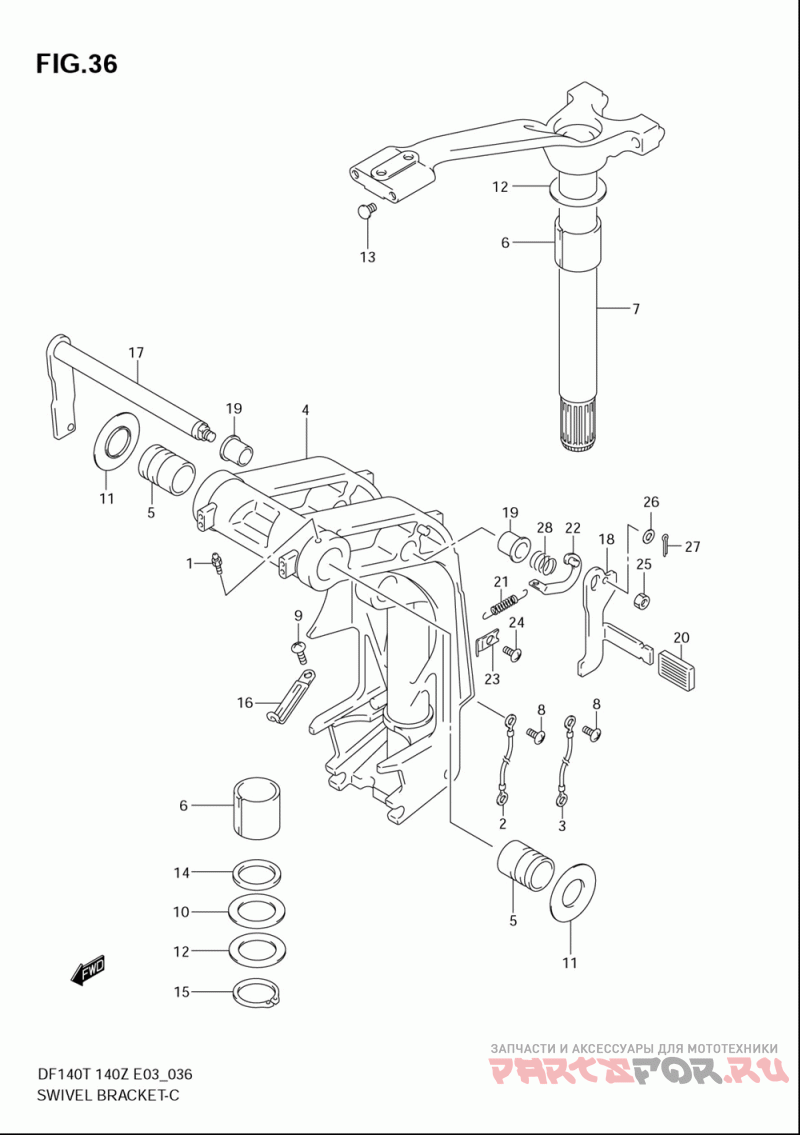

Поворотный кронштейн

Suzuki Marine DF140T 140Z

Поворотный кронштейн

#

oem код

название

цена

1-1

Nipple, Grease (df140t:682149~df140z:680234~)

Nipple, Grease (df140t:682149~df140z:680234~)

2

Lead, Clamp To S ()

Lead, Clamp To S ()

3

Lead, Clamp To S ()

Lead, Clamp To S ()

4-1

43111-92J20-0EP

Bracket, Swivel( (df140t)

Bracket, Swivel( (df140t)

4-3

43111-92J40-0EP

Bracket, Swivel (df140t:682149~)

Bracket, Swivel (df140t:682149~)

4-4

43111-92J30-0EP

Bracket, Swivel( (df140t, 140z)

Bracket, Swivel( (df140t, 140z)

4-6

43111-92J50-0EP

Bracket, Swivel (df140t:682149~df140z:680234~)

Bracket, Swivel (df140t:682149~df140z:680234~)

5-1

Bush, Clamp Shaf ()

Bush, Clamp Shaf ()

5-2

Bushing, Swivel (df140t:682149~df140z:680234~)

Bushing, Swivel (df140t:682149~df140z:680234~)

6

Bush, Steering ()

Bush, Steering ()

7-1

43750-90J00-0EP

Bracket, Steerin (df140t)

Bracket, Steerin (df140t)

7-2

43750-90J22-0EP

Bracket, Steeri (df140t:682149~)

Bracket, Steeri (df140t:682149~)

7-3

43750-90J11-0EP

Bracket, Steerin (df140t, 140z)

Bracket, Steerin (df140t, 140z)

7-4

43750-90J32-0EP

Bracket, Steerin (df140t:682149~df140z:680234~)

Bracket, Steerin (df140t:682149~df140z:680234~)

8

Screw (<-09125-05050)

Screw (<-09125-05050)

9

Screw (6x10) ()

Screw (6x10) ()

10

Washer (39.5x64x1.0) ()

Washer (39.5x64x1.0) ()

11

Шайба

Шайба

12

Shim ()

Shim ()

13

Plug ()

Plug ()

14

Oil Seal 39x51x ()

Oil Seal 39x51x ()

15

Circlip ()

Circlip ()

16

Clamp (<-09404-06432)

Clamp (<-09404-06432)

17

Lever Comp, Tilt ()

Lever Comp, Tilt ()

18

Lever, Tilt Lock ()

Lever, Tilt Lock ()

19

Bush, Tilt Stop ()

Bush, Tilt Stop ()

20

Rubber Lock Arm ()

Rubber Lock Arm ()

21

Spring, Tilt Loc ()

Spring, Tilt Loc ()

22

Link, Tilt Lock ()

Link, Tilt Lock ()

23

Bracket, Tilt Lo ()

Bracket, Tilt Lo ()

25

Гайка

Гайка

26

.washer, Clutch Lever ()

.washer, Clutch Lever ()

27

Pin ()

Pin ()

28

Spring ()

Spring ()
