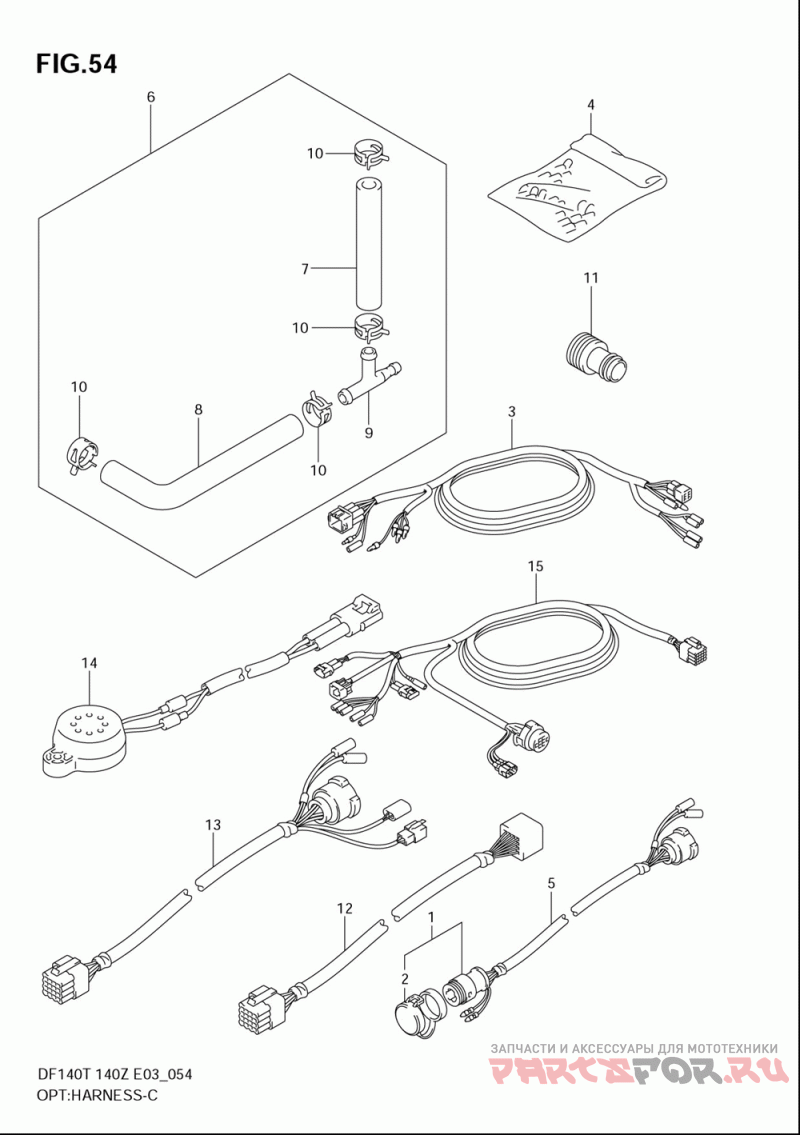

Опции - жгуты проводов

Suzuki Marine DF140T 140Z

Suzuki Marine
#oem кодцена
1-1
36620-87D20
Harness Wiring (l:5000 Model:02~04)
1-2
36620-95302
Harness Assy, Ex (l:2000 Model:02~04)
2
36631-94300
Cap Remo Con Ha ()
3-1
36660-94400
(l:6500 Model:02~04)
3-2
36660-94480
Wire, Trim Gauge (l:2000 Model:02~04)
4
36990-87D00
Terminal&sleeve ()
5
36620-92E00
Wire Assy, Remoc (model:02~04)
6
34660-90J01
Sub Kit, Water P ()
7
09352-50903-600
.hose (l:600->160l:600->210)
9
09367-06006
.3 Way ()
10
09401-08413
Clip ()
11
17917-99E00
Connector, Flush ()
12-1
36620-93J10
Main Harness Ex (l:2000 Model:05~08)
12-2
36620-93J40
Harness Ext 10' (l:3000 Model:05~08)
13-1
36620-93J20
Harnessadapter (l:2000 Model:04)
13-2
36620-93J30
Harness Adapter (l:2000 Model:05~08)
14
38500-93J00
Buzzer Assy, War (model:05~08)
15-1
36620-93J01
Main Harness 21 (l:5000)
15-2
36620-93J51
Main Harness 16 (l:3500)
15-3
36620-93J61
Main Harness 26 (l:6500)
