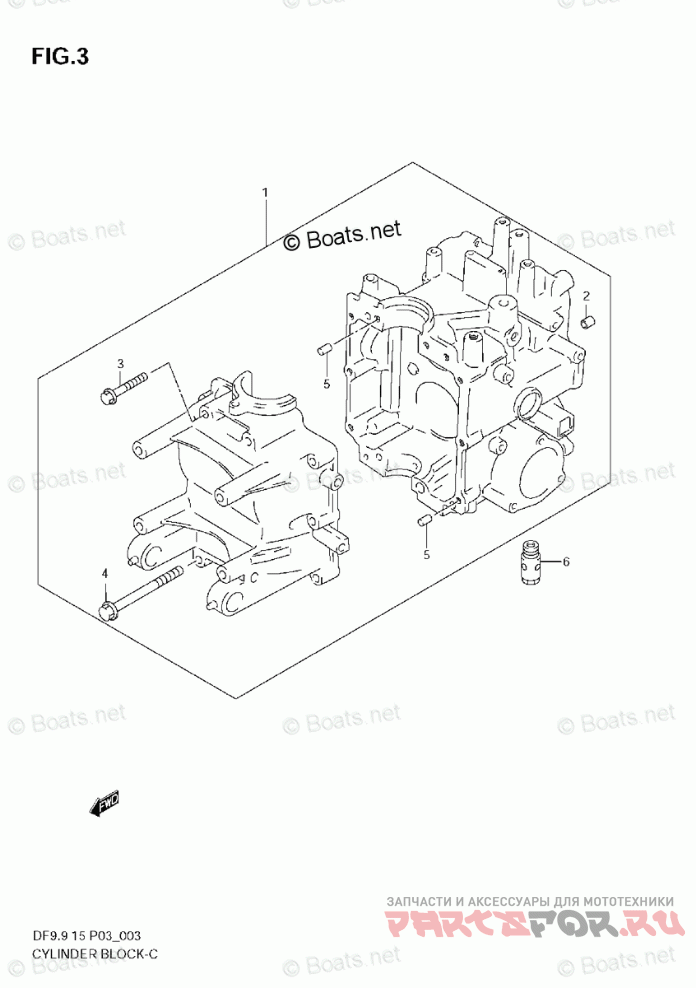

CYLINDER BLOCK
Suzuki Marine DF 9.9TSK8
| # | oem код | название | цена |
|---|---|---|---|
1 | 11301-93E02-0EP Деталь BLOCK ASSY, CYLINDER | Деталь BLOCK ASSY, CYLINDER | |
2 | 09205-10006 Деталь PIN (10.2X10) | Деталь PIN (10.2X10) | |
3 | 01550-06357 Деталь BOLT | Деталь BOLT | |
4 | 01560-08757 Деталь BOLT | Деталь BOLT | |
5 | 04211-11129 Деталь PIN | Деталь PIN | |
6 | 16440-11D00 Деталь REGULATOR, ENGINE OIL | Деталь REGULATOR, ENGINE OIL | |
7 | SPECIAL-NOTE Деталь REFER TO FIG.4(B- 5) FOR MODEL:05~ | Деталь REFER TO FIG.4(B- 5) FOR MODEL:05~ |
