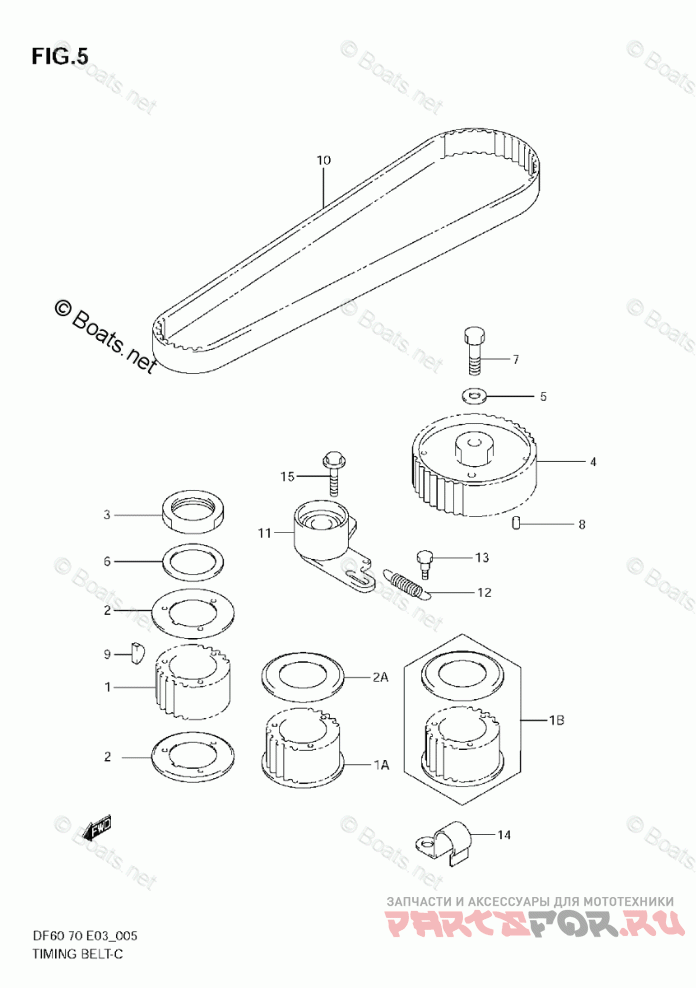

Timing Belt

Suzuki Marine DF 70TLK8

Suzuki Marine
#oem кодцена
1
12631-99E00
PULLEY, TIMING BELT *{->12630-99810}*
1A
12631-99E10
PULLEY, TIMING BELT *{MODEL:01~06 ->12630-99810}*
1B
12630-99810
PULLEY/GUIDE SET *{MODEL:07~09}*
2A
12635-99E10
GUIDE, TIMING BELT *{MODEL:01~06 ->12630-99810}*
2
12635-99E00
GUIDE, TIMING BELT *{->12630-99810 PULLEY/GUIDE SET}*
3
12637-99E00
NUT, PULLEY
4-2
12740-99E10
PULLEY, CAMSHAFT TIMING *{MODEL:01~09}*
4-1
12740-99E01
PULLEY, CAMSHAFT TIMING
5
09160-12082
WASHER (12.5X24X3.2)
6
09164-38001
WASHER
7
01500-12407
BOLT
8
04221-05109
PIN
9
08341-31059
KEY
10
12761-72F00
BELT, TIMING
11
12810-99E00
TENSIONER, TIMING BELT
12
12821-99E01
SPRING, TENSIONER
13
09111-06083
BOLT
14
09403-20301
CLAMP
15
01550-08207
BOLT
