Inlet Manifold (DF70:973970%Model:00) для лодочных моторов Suzuki Marine DF 70TLK8 (2008)

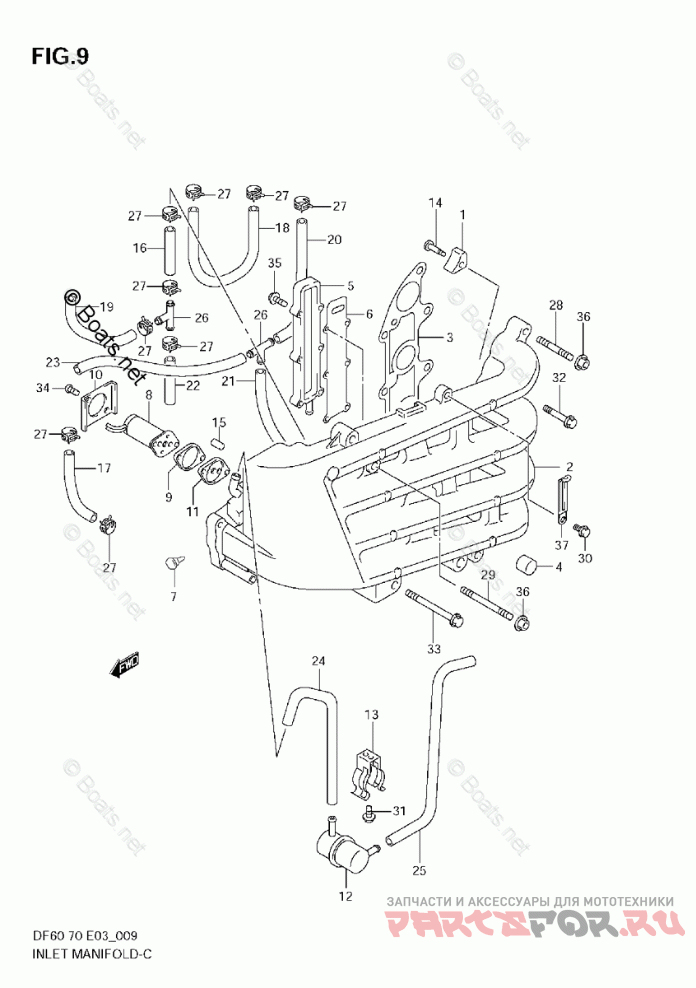

Inlet Manifold (DF70:973970%Model:00)

Suzuki Marine DF 70TLK8

oem код

название

цена

11281-94400

PROTECTION, ANODE

13110-99E01

MANIFOLD, INLET

13119-99E00

GASKET, INLET MANIFOLD

09329-12004

CUSHION

13140-99E00

COVER, INLET MANIFOLD

13145-99E01

GASKET, INLET MANIFOLD COVER

SCREW, BYPASS AIR

VALVE, IAC

FLANGE

HOLDER

SEAT, RUBBER

SILENCER, IAC VALVE

CLAMP, SILENCER

SCREW (6X30)

PIN, DOWEL

HOSE (UNION TO INMANI) *{L:600->60}*

09352-50903-600

HOSE (CASE TO CASE) *{L:600->60}*

09352-50903-600

HOSE (INMANI TO SEP) *{L:600->200}*

09352-50903-600

HOSE (UNION TO CASE) *{L:600->210}*

09352-50903-600

HOSE (SEP TO UNION) *{L:600->240}*

09352-50903-600

HOSE (UNION TO OIL PAN) *{L:600->240}*

09352-50903-600

HOSE (HOLDER TO UNION) *{L:600->320}*

09352-50903-600

HOSE (CASE TO UNION) *{L:600->500}*

09352-70121-600

HOSE (INMANI TO IAC) *{L:600->440}*

09352-70121-00B

HOSE, SILENCER *{L:2000->620}*

3-WAY

CLIP

BOLT, STUD

BOLT, STUD

BOLT

BOLT

BOLT

BOLT

SCREW

BOLT

NUT

CLAMP
