Inlet Manifold (DF60:971961%Model:01) для лодочных моторов Suzuki Marine DF 60TLK8 (2008)

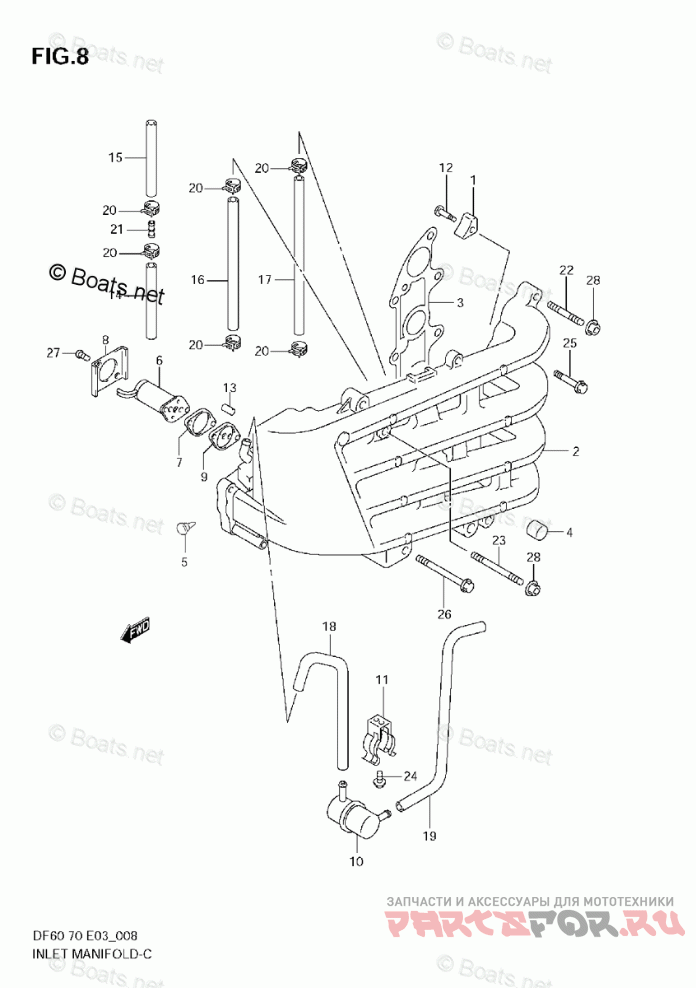

Inlet Manifold (DF60:971961%Model:01)

Suzuki Marine DF 60TLK8

oem код

название

цена

11281-94400

PROTECTION, ANODE

2-1

13110-99E01

MANIFOLD, INLET

2-2

13110-99E20

MANIFOLD, INLET *{MODEL:01}*

13119-99E00

GASKET, INLET MANIFOLD

CUSHION

SCREW, BYPASS AIR

VALVE, IAC

FLANGE

HOLDER

SEAT, RUBBER

SILENCER, IAC VALVE

CLAMP, SILENCER

SCREW (6X30)

PIN, DOWEL

HOSE (2 WAY TO SEP) *{L:600->200 MODEL:01}*

09352-50903-600

HOSE (HOLDER TO 2 WAY) *{L:600->200 MODEL:01}*

09352-50903-600

HOSE (HOLDER TO SEP) *{L:600->400 ~MODEL:00}*

09352-50903-600

HOSE (SEP TO OIL PAN) *{L:600->470}*

09352-70121-600

HOSE (INMANI TO IAC) *{L:600->440}*

09352-70121-00B

HOSE, SILENCER *{L:2000->620}*

20-2

09401-08411

CLIP *{MODEL:01}*

20-1

CLIP

2 WAY *{MODEL:01}*

BOLT, STUD

BOLT, STUD

BOLT

BOLT

BOLT

SCREW

NUT
