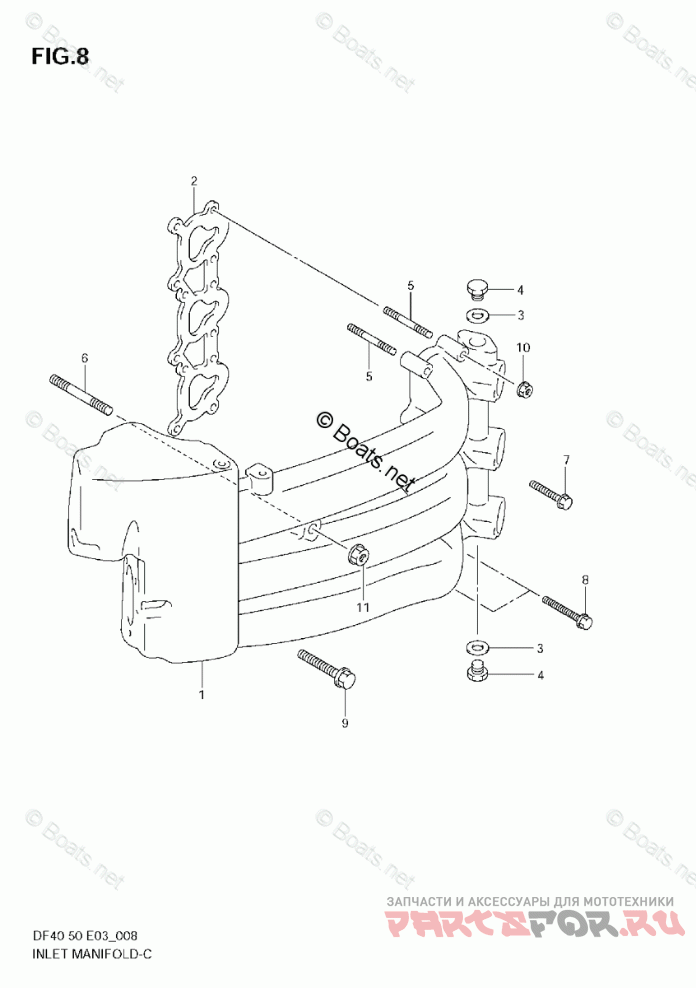

Inlet Manifold

Suzuki Marine DF 40TLK8

Suzuki Marine
#oem кодцена
1-2
13111-87J01
MANIFOLD, INTAKE *{DF40:151244~ DF50:151629~}*
1-1
13111-87J00
MANIFOLD, INTAKE *{->13111-87J01 USED W/ 09403-18406 09404-08205 01550-08167}*
1-3
13111-87J02
MANIFOLD, INTAKE *{MODEL:05,06}*
1-4
13111-87J03
MANIFOLD, INTAKE *{DF40:681314~ DF50:682257~}*
2
13129-87J00
INSULATOR, INTAKE MANIFOLD
3-2
09168-12013
GASKET *{DF40:681314~ DF50:682257~}*
3-1
09168-12013
GASKET
4-1
09247-12104
PLUG
4-2
09247-12104
PLUG *{DF40:681314~ DF50:682257~}*
5
01421-06407
BOLT, STUD
6
01421-08457
BOLT, STUD
7
01550-06407
BOLT
8
01550-06507
BOLT
9
01550-08557
BOLT
10
08316-10067
NUT
11
08316-10087
NUT
