Кронштейн транца для лодочных моторов Suzuki Marine DF140T,Z (2007)

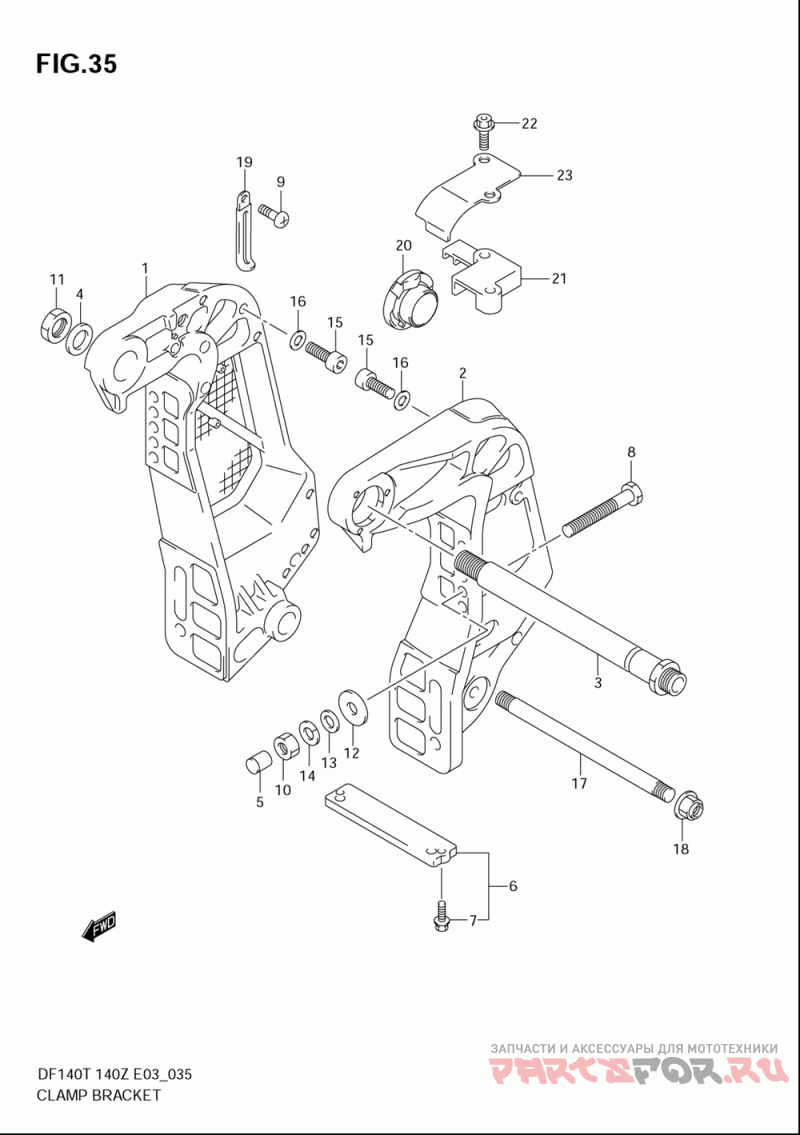

Кронштейн транца

Suzuki Marine DF140T,Z

oem код

название

цена

41111-92J02-0EP

Bracket, Clamp S

2-1

41121-92J04-0EP

Bracket, Clamp P

3-1

41130-95541

Shaft, Clamp Bra

3-2

41130-95543

Shaft Comp, Clam

3-4

41130-92J00

Shaft Comp, Clam (df140t:682149~df140z:680234~)

Washer, Clamp B

Cap Transom Bol

Anode Set

.bolt (6x25)

8-1

09100-12090

Bolt (12x150, Pitch:1.25) (->09100-12090used With 09159-12014)

8-3

09100-12091

Bolt, 12x115, Pit (opt->09100-12091used With 09159-12014)

09125-06063

Screw (6x10)

10-1

09140-12028

Nut (m12, Pitch:1.75)

10-2

09159-12014

Nut (df140t:511173~df140z:510166~)

09159-22006

Гайка

09160-12044

Washer (12.5x35x3.2)

13-1

09160-12066

.washer (12.5x22x2.5)

13-2

09160-12110

Washer (12.5x22x3) (df140t:511173~df140z:510166~)

09162-12005

.washer, Lock (df140t:~511172df140z:~510165)

Bolt (10x20)

Шайба

Pin, Tilt Lock

Гайка

Зажим

Cam Assy, Tilt L

Holder, Tilt Lim

22-1

01550-06207

Болт

22-2

09103-06278

Bolt (6x25) (df140t:514980~df140z:510527~)

48145-93J00

Cover, Tilt Limi (df140t:514980~df140z:510527~)
