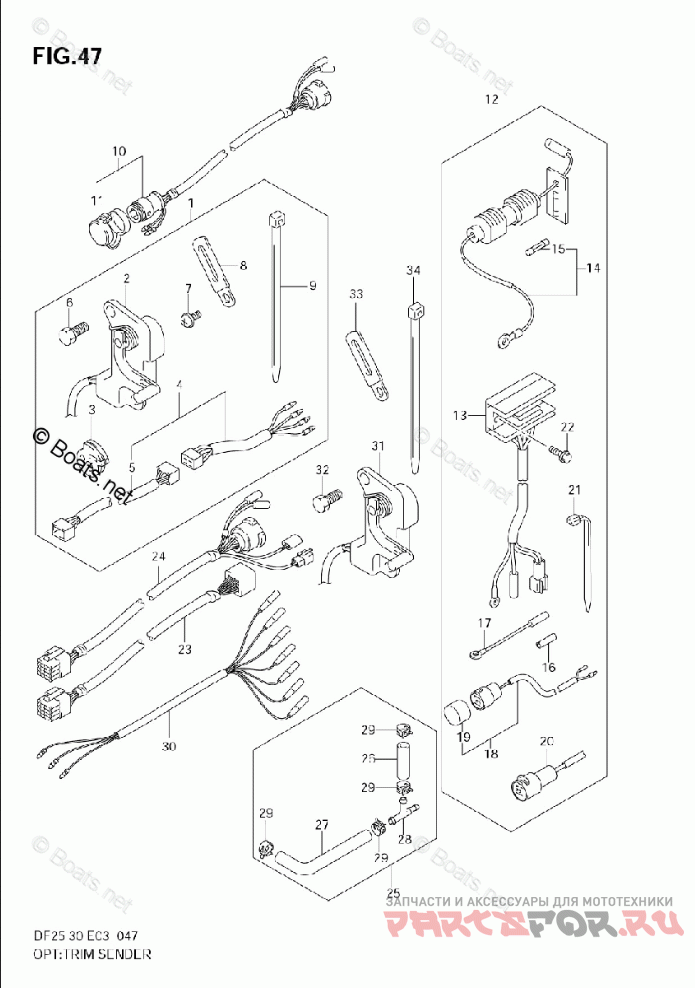

Opt:Trim Sender для лодочных моторов Suzuki Marine DF 30MQLK7 (2007)

Opt:Trim Sender

Suzuki Marine DF 30MQLK7

oem код

название

цена

34804-94711

SENDER SET, TRIM *{MODEL:00,01(4WIRE)}*

34801-94710

SENDER, TRIM

36658-95600

GROMMET, TRIM SENDER WIRE

36680-92E00

WIRE ASSY, TRIM METER

36682-92E00

WIRE, TRIM GAUGE *{MODEL:00,01(4WIRE)}*

09100-06113

BOLT (6X16)

09125-06063

SCREW (6X10)

09404-06432

CLAMP

9-2

09407-14407

CLAMP

9-1

09407-14403

CLAMP

10-2

36620-95302

WIRE, REMOCON EXTENSION *{L:2000 MODEL:00~04}*

10-1

36620-87D20

WIRE, REMOCON EXTENSION *{L:5000 MODEL:00~04}*

36631-94300

CAP

12-2

39600-89J10

RECEPTACLE SET, LIGHTING *{MODEL:02~07}*

12-1

39600-89J00

RECEPTACLE SET, LIGHTING *{MANUAL STARTER}*

13-1

32800-89J00

RECTIFIER

13-2

32800-89J10

RECTIFIER *{MODEL:02~07}*

CASE ASSY, FUSE

FUSE (20A)

CONNECTOR, LEAD

LEAD, RECEPTACLE GROUND

RECEPTACLE

CAP

PLUG, LIGHTING

CLAMP

BOLT

23-2

36620-93J40

WIRE ASSY, REMOCON EXTENSION *{L:3000 MODEL:05~07}*

23-1

36620-93J10

WIRE ASSY, REMOCON EXTENSION *{L:2000 MODEL:05~07}*

36620-93J30

WIRE ASSY, REMOCON ADAPTER *{L:2000 MODEL:05~07}*

34660-89J00

SUB KIT, WATER PRESSURE GAUGE

09352-50903-600

HOSE *{L:600->70}*

09352-50903-600

HOSE *{L:600->140}*

09367-06006

3 WAY

29-2

17814-90J00

CLIP *{MODEL:06,07}*

29-1

09401-08411

CLIP

36630-92E00

WIRE ASSY, INSTRUMENT *{MODEL:04}*

34801-99E03

SENDER ASSY, TRIM *{TYPE:T MODEL:05~07 ELECTRIC STARTER}*

09100-06113

BOLT (6X16) *{TYPE:T MODEL:05~07 ELECTRIC STARTER}*

09404-06432

CLAMP *{TYPE:T MODEL:05~07 ELECTRIC STARTER}*

09407-14407

CLAMP (L:145) *{TYPE:T MODEL:05~07 ELECTRIC STARTER}*
