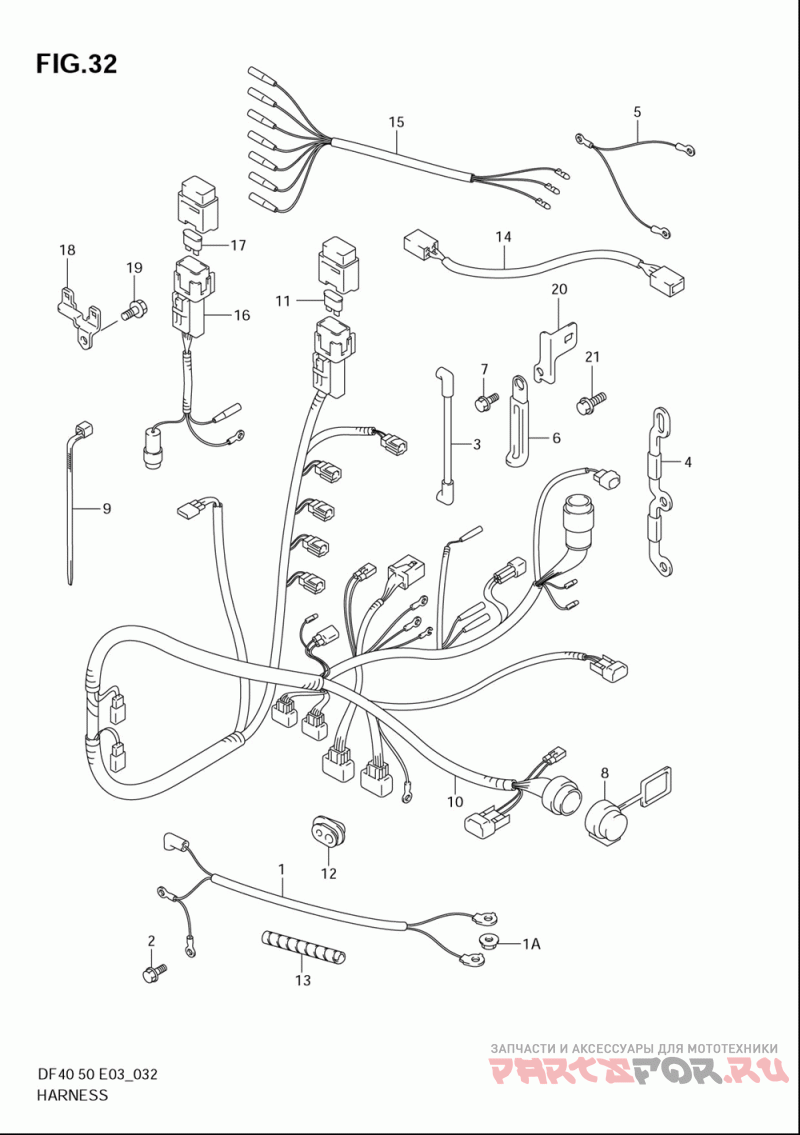

Жгут проводов

Suzuki Marine DF40/DF50

Suzuki Marine
#oem кодцена
1-1
33810-92E01
Cable Assy, Star
1-2
33810-87J00
Cable Assy, Star
1-3
33810-87J10
Cable Assy, Star
1A
08316-10087
..nut
2
01550-08167
.bolt, Remocon Cable Holder
3
33820-87JV0
Cable Assy, Star (<-33820-87j00model:99~04)
4
33831-99E01
Plate, Ptt Relay
5
33832-94601
Cable Assy, Trim
6-1
09404-06432
Зажим
6-2
09404-06435
Clamp (l:135)
7
01550-06127
Болт
8
33634-99E00
Cap, Service Con
9-1
09407-14403
.clamp, Battery Cable
9-2
09407-18402
Стяжка L-165
10-1
36610-87J01
Harness, Wiring (type:tmodel:99,00)
10-2
36610-87J41
Harness Assy, Wi (type:tmodel:01, 02)
10-3
36610-87J70
Harness Assy, Wi (type:tmodel:03)
10-4
36610-87JA0
Harness Assy, Wi (type:tmodel:04)
10-5
36610-87JG0
Harness Assy, Wi (type:tmodel:05~07<-36610-87jf0)
10-6
36610-87J20
Harness Assy, Wi (type:qhmodel:99, 00)
10-7
36610-87J61
Harness Assy, Wi (type:qhmodel:01, 02)
11-1
09481-15101
Предохранитель (15a)
11-2
09481-30501
.fuse (30a)
12-1
36656-87D11
Grommet, Ptt Cab
12-2
36656-87D30
Grommet, Ptt Cab
12-3
36656-87J00
Grommet, Ptt Cab
13
33833-91J00
Tube, Sw Lead
14
36682-92E00
Monitor Harness
15
36630-92E00
Wire Assy, Instr
16
36740-87J00
Case Assy, Fuse
17
09481-30101
.fuse (30a)
18
36745-87J00
Bracket, Fuse Ca
19
02162-06127
Болт
20
36617-87J00
Bracket, Joint C
21
01550-06167
.bolt, Remocon Cable Holder
